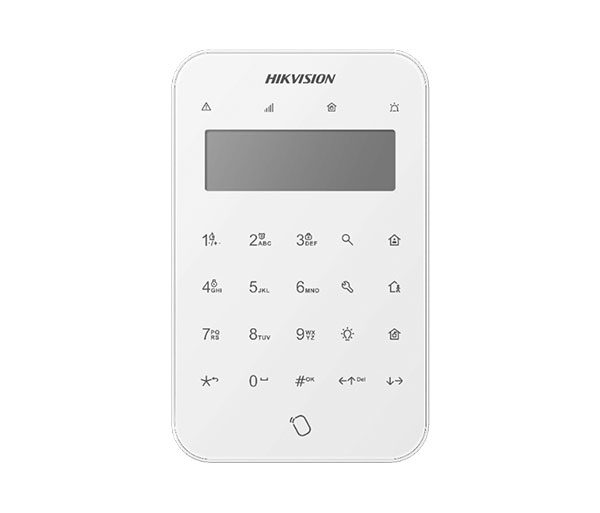

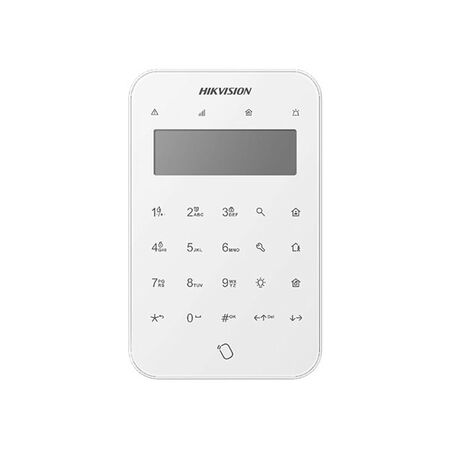

LCD Keypad AX PRO Hikvision
Hikvision AX PRO keypad features an LCD display. Ideal for alarm system arming and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-PK1-LT-WB, AX PRO LCD Keypad, Wireless Alarm Keypad, Intrusion Alarm Keypad
Technical Specifications
- Model: DS-PK1-LT-WB
- Display: LCD screen with LED system-status indicators
- Wireless Frequency: 433 MHz
- Wireless Range: Up to 800 m in open area
- Wireless Technology: Tri-X two-way wireless communication
- Battery Type: Four CR123 batteries
- Battery Life: Up to 2 years in standby
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% RH
- Power Supply: 3 V DC
- Quiescent Current: 80 µA
- Maximum Current: 300 mA
- Installation: Wall mounting
- Colour: White
- Dimensions (H x L x W): 109.62mm x 174.63mm x 25.25mm
- Weight: 0.348 kg
Key Features
- LCD display for system status and configuration
- Built-in tag reader for convenient arming and disarming
- Full-touch keypad with LED backlight
- Supports stay arm, away arm, disarm and silent alarm functions
- One-touch fire, panic and medical alarm functions
- Supports output control through the keypad
- Front and rear tamper protection
- Remote configuration through the Hik-Connect app
- Built-in buzzer and power switch
Professional Installation Requirements
- Installation, enrolment and commissioning should be carried out by a suitably qualified security or alarm technician as part of a compatible Hikvision AX PRO system. Wall mounting and system programming are required.
Applications
- Residential intruder alarm systems
- Small business and commercial security systems
- AX PRO wireless alarm system arming and disarming
- Local alarm system status display and control
- Security system configuration and user operation
Standards & Compliance
- AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems when installed as part of a complete alarm system
Environmental Benefits
- Replaceable CR123 batteries allow the keypad to remain in service without replacing the complete unit
- Up to two years of standby battery life can reduce battery replacement frequency
- Wall-mounted construction and tamper protection support extended product service life
- Electronic components and spent batteries should be recycled through appropriate e-waste and battery collection schemes
Warranty Information
Warranty is subject to Hikvision Australia’s applicable RMA and warranty policy, authorised distribution channel and proof of purchase. The warranty period should be confirmed with the supplying distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and stock availability.
