LCD Security Keypad Blue/White Backlight Programmable Keys Ness

BRAND: Ness
SKU: 101-256
$216.60 List price: $288.80
+ −
30 Days Return Electricians Unlock Trade Access

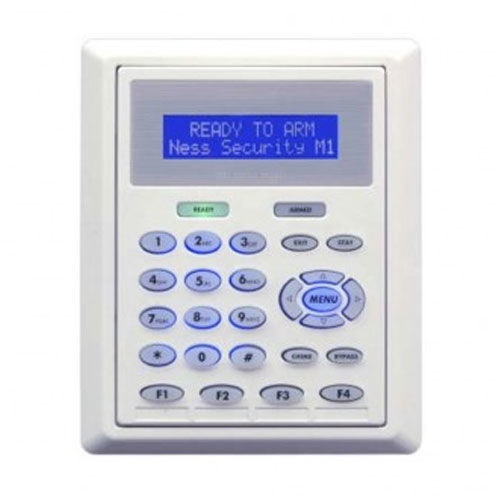

Ness LCD security keypad features a blue or white backlight and programmable keys. Ideal for M1 alarm system control.

Alternatively Known As: Ness M1-KP2 LCD Keypad, Ness M1S/FKP Keypad, Ness 101-256 LCD Keypad

Technical Specifications
  • Model: M1KP2 / 101-256
  • Display: 32-character blue/white backlit high-contrast LCD
  • Function Keys: Four programmable function keys
  • Compatibility: Ness M1 Gold 14-inch and 28-inch panels; Ness EZ-24 panel
  • Data Bus: Four-wire M1G/M1EZ8 RS485 data bus
  • Operating Voltage: 13.8 VDC supplied by the control panel
  • Current Draw: Approximately 30 mA idle; approximately 85 mA fully active
  • Connection: Six-pin plug-in flying-lead connector
  • Zone Input: One supervised zone input
  • Voltage Output: One programmable switched-positive output
  • Proximity Reader: Supports optional external 26-bit Wiegand reader
  • Audible Indicator: Built-in piezo sounder with adjustable pitch
  • Mounting: Surface mount; optional 9.5 mm recess depth flush-mount kit
  • Colour: White
  • Dimensions (H x L x W): 140mm x 118mm x 24mm
  • Weight: 0.35 kg
Key Features
  • Blue/white backlit LCD display for system status and menu navigation
  • Four programmable function keys for quick access to configured operations
  • Menu navigation and direction keys
  • Exit, Stay, Chime and Bypass keys
  • Compatible with Ness M1 cross-platform security controls
  • Optional external proximity reader support for cards or fobs
  • Integrated supervised zone input and programmable switched-positive output
  • Optional flush-mount kit available for discreet wall installation
Professional Installation Requirements
  • Installation, data-bus wiring, addressing and programming should be performed by a suitably qualified security alarm installer. Follow the Ness installation instructions and applicable AS/NZS 2201.1 requirements; isolate control-panel power before connecting or modifying the keypad wiring.
Applications
  • Ness M1 Gold 14-inch security alarm panels
  • Ness M1 Gold 28-inch security alarm panels
  • Ness EZ-24 security alarm panels
  • Residential intruder alarm systems
  • Commercial and small-business security alarm systems
  • Access control applications using an optional external Wiegand proximity reader
Standards & Compliance
  • Applicable system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems — Client’s premises — design, installation, commissioning and maintenance. Product-specific certification to this standard was not located.
Environmental Benefits
  • Operates from the alarm panel’s low-voltage 13.8 VDC supply rather than requiring a separate mains-powered keypad supply
  • Fixed wired operation avoids routine disposable battery replacement and associated battery waste
  • Durable installed design can support extended service life and reduce replacement frequency
Warranty Information

Ness Corporation’s general warranty for Ness manufactured or supplied products is 3 years from the date of purchase, subject to the published warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors, subject to current product availability.
