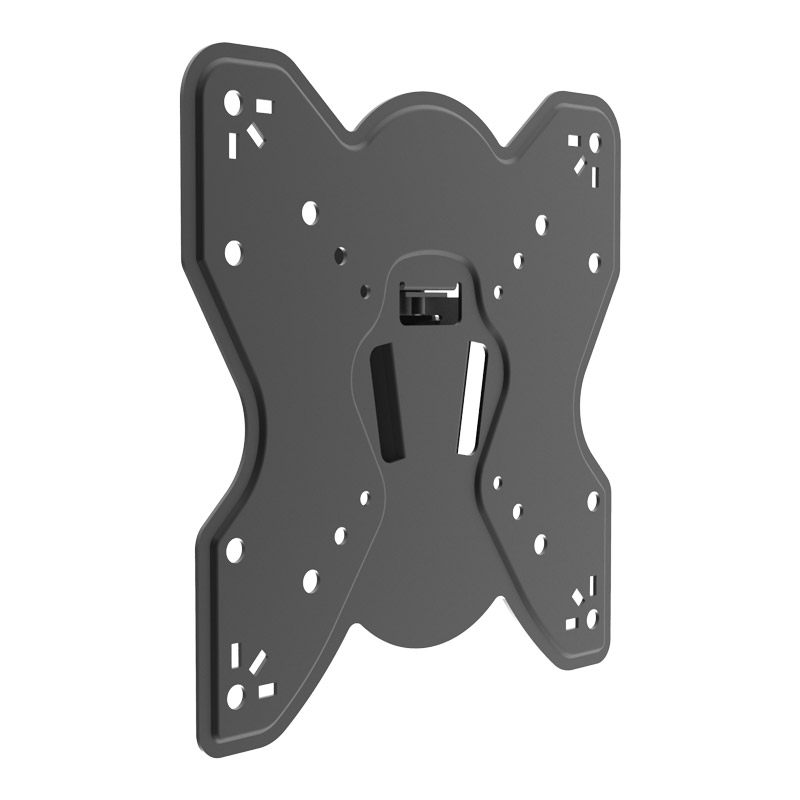

17"-42" Flashview LCD Wall Mount Monitor Bracket | VESA Compatible | 25kg Load Capacity | Tilt Adjustment | by Cornick
The 17"-42" Flashview LCD Wall Mount Monitor Bracket is perfect for mounting flat screen monitors and TVs in homes and offices. With VESA compatibility for 75mm, 100mm, and 200mm patterns, it supports a maximum load of 25kg and features a sleek 38mm wall distance. The tilt adjustment from +8° to -8° ensures optimal viewing angles, making it ideal for both residential and commercial display setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 17"-42" Flashview LCD Wall Mount Monitor Bracket | VESA Compatible | 25kg Load Capacity | Tilt Adjustment | by Cornick
Brand: Cornick
SKU: LCDBKT-A25T
Alternatively Known As: LCD Wall Mount Bracket, Monitor Wall Mount, TV Wall Bracket, Adjustable Monitor Mount

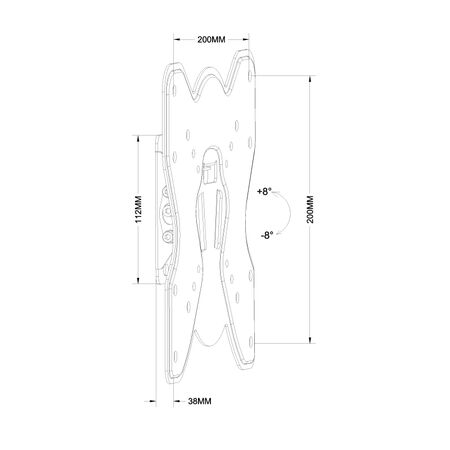

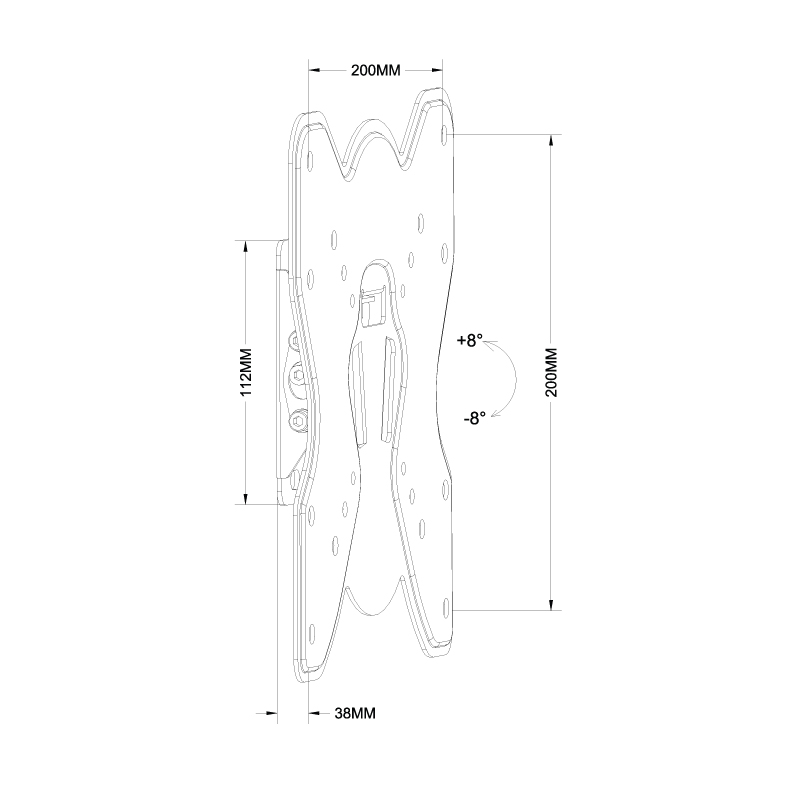

Technical Specifications
- Supports screen sizes: 17" to 42"
- VESA mounting patterns: 75mm, 100mm, 200mm
- Maximum load capacity: 25kg
- Mount distance from wall: 38mm
- Tilt range: +8° to -8°
- Includes screws, wall plugs, washers, and adjustment tools
- Dimensions (H x L x W): 200mm x 50mm x 300mm
- Weight: 1.5 kg
Key Features
- Supports screen sizes from 17" to 42"
- VESA mounting compatibility: 75, 100, 200
- Load capacity up to 25kg
- 38mm distance from wall for a sleek profile
- Tilt adjustment from +8° to -8° for optimal viewing angle
Professional Installation Requirements
- Professional installation is recommended to ensure secure mounting and compliance with building safety standards.
Applications
- Mounting flat screen monitors and televisions in homes
- Office and commercial display setups
- Surveillance monitor installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables secure mounting to reduce electronic waste from damaged screens
- Durable construction promotes long product life and reduces replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cornick 17"-42" Flashview LCD Wall Mount Monitor Bracket is available for immediate purchase, ideal for residential, commercial, and surveillance monitor mounting applications.
