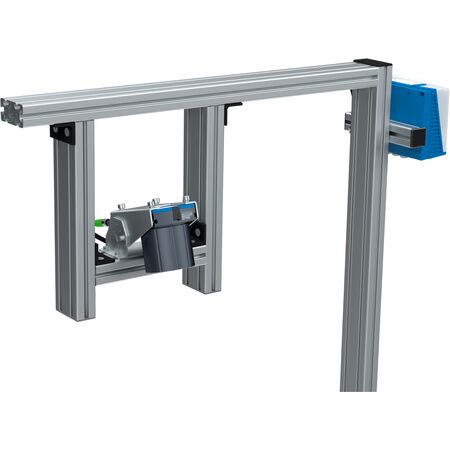

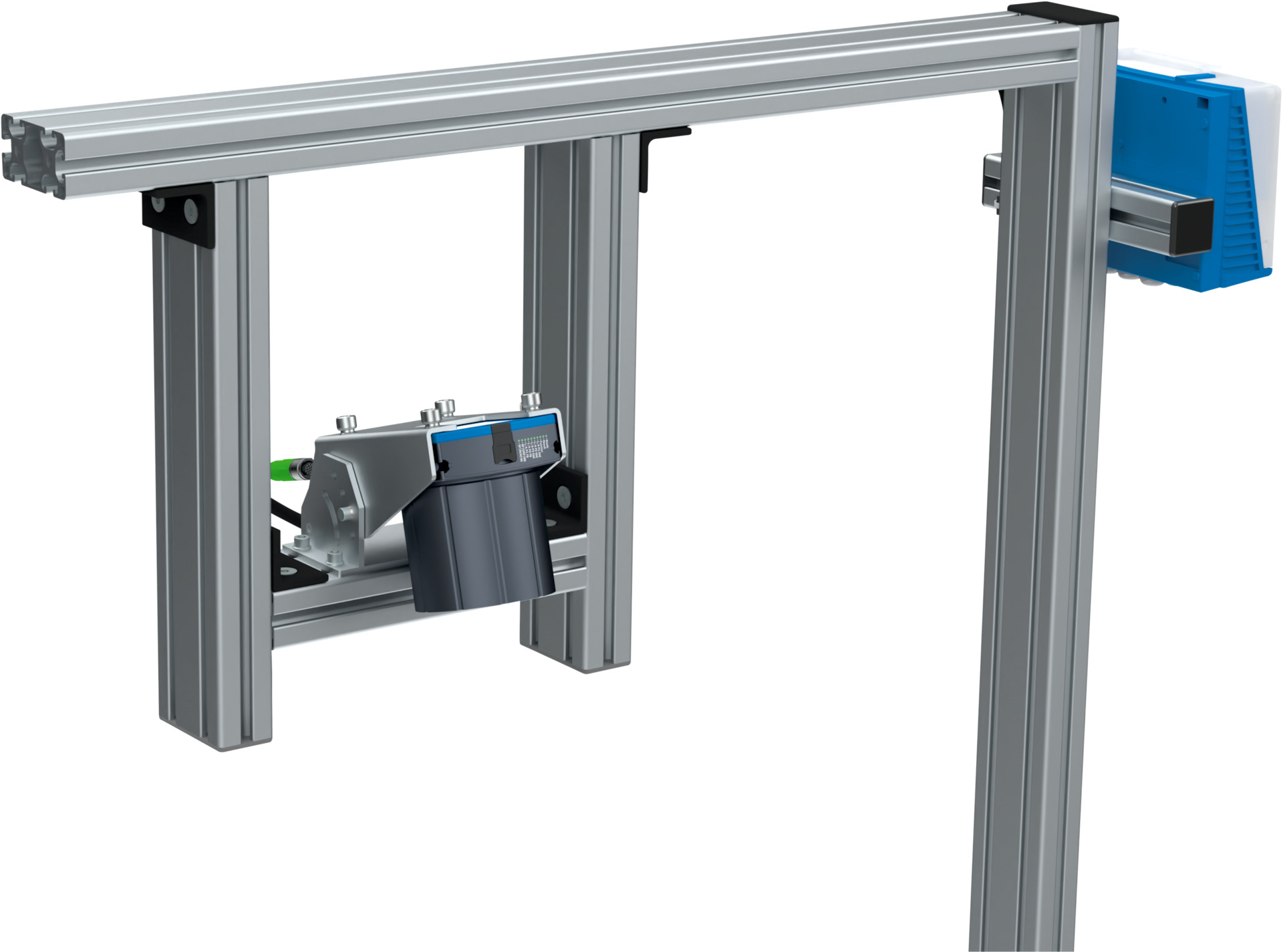

Lector85x OPS Performance Upgrade Kit CDx | 9 Megapixel CMOS Sensor | IP65 Rated | Adjustable Manual Focus | by SICK
The Lector85x OPS Performance Upgrade Kit CDx features a 9 Megapixel CMOS monochrome sensor and adjustable manual focus, making it ideal for enhancing barcode reading performance in conveyor and sorting systems. With an IP65 rated enclosure and a high MTBF of 100,000 hours, this upgrade kit is built for durability and reliability in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome
- Sensor resolution: 9 Megapixels
- Focus: Adjustable manual focus
- Aperture angle: 47° illumination
- Scanning frequency: 20 Hz
- MTBF: 100,000 hours
- Enclosure rating: IP65 (IEC 60529 standards)
- Electrical safety: EN 61010:2010, EN 61010-1:2010/A1:2019/AC:2019-04
- Supply voltage: 24 V DC, ± 20%
- Window material: Glass
- Housing material: Aluminum die cast
- Code types: Code 128, GS1-128, EAN 128, EAN 8, EAN 13, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Code 93, Postal code
- 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec
- Code resolution: ≥ 0.1 mm
- Detectable object colors: Anthracite gray (RAL 7016)
- Switching inputs: 2 (Sensor 1, Sensor 2), Insulated Encoder input, External trigger
- Optical indicators: 12 LEDs, 10 status displays, 2 feedback spots
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Shock load: EN 60068-2-27:2008
- Vibration load: EN 60068-2-6:2007, EN 60068-2-64:2019
- Laser class: 1 (EN 60825-1:2014+A11:2021)
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- CMOS monochrome sensor with 9 Megapixel resolution
- Adjustable manual focus
- 47° aperture angle for illumination
- Scanning frequency of 20 Hz
- High MTBF of 100,000 hours
- IP65 rated enclosure for robust protection
- Aluminum die cast housing
- Glass window material
- Supports multiple 1D and 2D code types including Code 128, GS1-128, Data Matrix ECC200, QR code, and Aztec
- 12 LEDs with 10 status displays and 2 feedback spots for optical indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper mounting, electrical connections, and compliance with safety standards.
Applications
- Belt conveyor systems
- Cross-belt sorters
- Tilt-tray sorters
- Roller conveyors
- Other conveyor types on request
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP65 enclosure reduces need for frequent replacements
- High MTBF of 100,000 hours minimizes electronic waste
- Energy-efficient CMOS sensor technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK Lector85x OPS Performance Upgrade Kit CDx is available for immediate purchase, ideal for upgrading barcode reading performance in conveyor and sorting systems.
