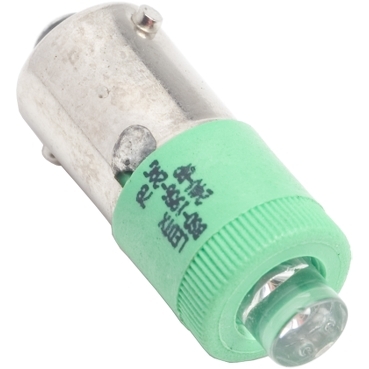

LED BA9s Base Indicator Lamp | 24Vac/dc | Green Illumination | Long-life Technology | by Clipsal
The LED BA9s Base Indicator Lamp operates on 24Vac/dc, providing bright green illumination for clear status indication. Ideal for industrial control panels and switchboards, this long-life LED technology ensures reliable operation with low power consumption, making it perfect for machinery status indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED BA9s Base Indicator Lamp | 24Vac/dc | Green Illumination | Long-life Technology | by Clipsal
Brand: Clipsal
SKU: SCHDL1CJUS0243
Alternatively Known As: BA9s LED Indicator, 24V Green Panel Lamp, Clipsal Indicator Light, SCHDL1CJUS0243
Technical Specifications
- Lamp Type: LED
- Base: BA9s
- Voltage: 24Vac/dc
- Colour: Green
- Current Draw: Approx. 20mA
- Luminous Intensity: ~2,000 mcd
- Operating Temperature: -20°C to +60°C
- Polarity: Non-polarized
- Dimensions (H x L x W): 23mm x 9mm x 9mm
- Weight: 0.1 kg
Key Features
- Long-life LED technology for reliable operation
- BA9s base for easy replacement
- Operates on 24Vac/dc
- Bright green illumination for clear status indication
- Low power consumption
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure correct operation and safety.
Applications
- Industrial control panels
- Switchboards
- Signal and indicator lights
- Machinery status indication
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED technology reduces energy consumption and heat output compared to incandescent lamps.
- Long operational life minimizes waste and replacement frequency.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal LED BA9s Base 24Vac/dc Green Indicator Lamp (SCHDL1CJUS0243) is available for immediate purchase. Ideal for industrial control panels, switchboards, and machinery status indication.
