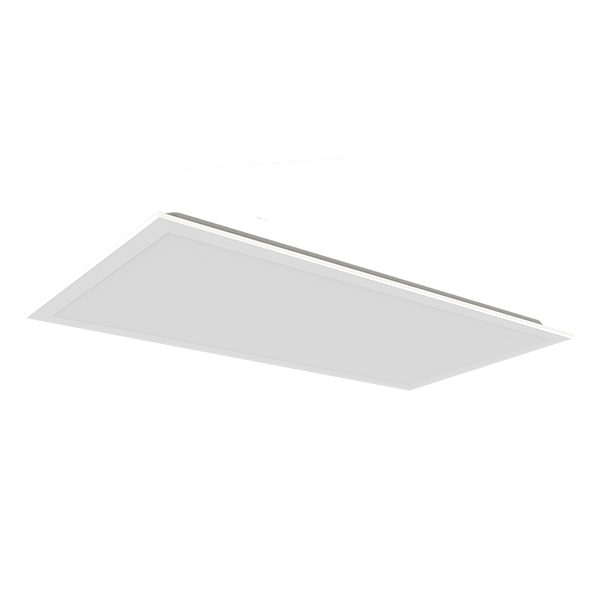

36W LED Backlit Panel 300 x 1200 | Cool White | IP40 Rated | 100 lm/W Efficiency | by atom
The 36W LED Backlit Panel 300 x 1200 is designed for efficient indoor lighting, offering a cool white color temperature and an impressive efficiency of up to 100 lm/W. Ideal for commercial offices, retail spaces, and educational facilities, this recessed panel light features a durable powder-coated steel body and a polycarbonate diffuser, ensuring long-lasting performance and low glare.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Panel Light 300x1200, LED Backlit Panel Cool White, Recessed LED Panel 36W, Office LED Panel Light
Technical Specifications
- Total System Efficiency: up to 100 lm/W
- IP Rating: IP40
- IC Rating: IC-4
- Body Material: Powder-coated steel
- Diffuser Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Maximum Wattage: 36 W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Unified Glare Rating (UGR): <19
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: 900 mA
- LED Lifetime: >60,000 hours (TM-21 report)
- Colour Temperature: 4000 K (Cool White)
- Driver Type: Fixed output, non-dimmable
- Flex & Plug Length: 900 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Product Design Life: 10 years at 12 hrs daily use
- Dimensions (H x L x W): 40mm x 1200mm x 300mm
- Weight: 4.5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated for indoor use
- IC-4 rated for safe insulation coverage
- Fixed installation type with recessed mounting
- Powder-coated steel body with polycarbonate diffuser
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- 3-step MacAdam ellipse for consistent colour quality
- Long LED lifetime greater than 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial office lighting
- Retail and hospitality lighting
- Educational and healthcare facilities
- Indoor general lighting in residential and commercial buildings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainability
Warranty Information
Standard 3 years return-to-base warranty. VIP warranty available for registered users with 2 years onsite and 3 years return-to-base (total 5 years). Warranty valid up to 15,000 operating hours or warranty period, whichever occurs first.
Available Now
The Atom 36W LED Backlit Panel 300x1200mm Cool White is available for immediate purchase, ideal for commercial and residential indoor lighting applications.
