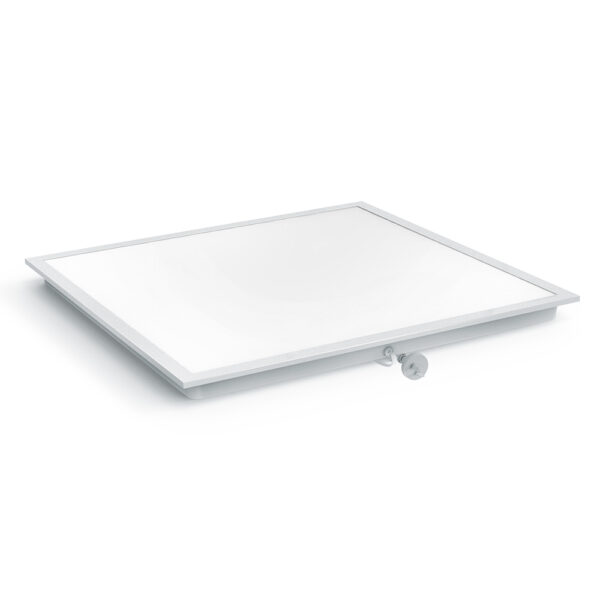

45W LED Backlit Panel 600 x 1200 | TRI-CCT Adjustable | IP40 Rated | Long LED Lifetime | by atom
The 45W LED Backlit Panel 600 x 1200 is designed for versatile lighting solutions with TRI-CCT adjustable color temperatures of 3000K, 4000K, and 5700K. Ideal for commercial and office spaces, this recessed panel offers a high CRI of >80 for accurate color rendering and an impressive LED lifetime of over 60,000 hours. With an IP40 rating and a sleek powder-coated white finish, it ensures both functionality and style in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Backlit Panel Light, LED Ceiling Panel, Tri-Color Temperature LED Panel, Recessed LED Panel Light
Technical Specifications
- Power: 36W (model AT6023/606/TRI) or 60W (model AT6023/612/TRI)
- Input Voltage: 230Vac (216-253V range)
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Input Current: 0.2A (36W), 0.34A (60W)
- LED Voltage: 36V
- LED Current: 900mA (36W), 1500mA (60W)
- Color Rendering Index (CRI): >80
- Unified Glare Rating (UGR): <22
- Macadam Ellipse: 6-step
- Operating Temperature Range: -10 to 40 °C
- IP Rating: IP40
- IC Rating: IC-4
- Driver Type: Fixed output, non-dimmable
- Installation: Recessed
- Material: Aluminium AL6063 body, polystyrene diffuser
- Flex & Plug Length: 900 mm
- Wiring: Re-wireable flex & plug (2 pin)
- Dimensions (H x L x W): 35mm x 1200mm x 600mm
- Weight: 5 kg
Key Features
- Tri-CCT adjustable color temperature: 3000K, 4000K, 5700K
- High CRI >80 for accurate color rendering
- Long LED lifetime >60,000 hours (TM-21 report)
- Fixed output driver included, non-dimmable
- IP40 rated with IC-4 insulation compatibility
- Powder-coated white aluminium body with polystyrene diffuser
- Low glare with UGR <22
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial and office lighting
- Recessed ceiling installations
- Indoor ambient lighting in retail and hospitality
- Educational and healthcare facilities
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product and LED lifetime reduces waste and replacement frequency
- Complies with energy savings schemes promoting sustainable use
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) for registered users. Warranty valid up to 15,000 operating hours.
Available Now
The Atom 45W LED Backlit Panel 600x1200 TRI-CCT SER III is available for immediate purchase, ideal for commercial and office recessed lighting applications.
