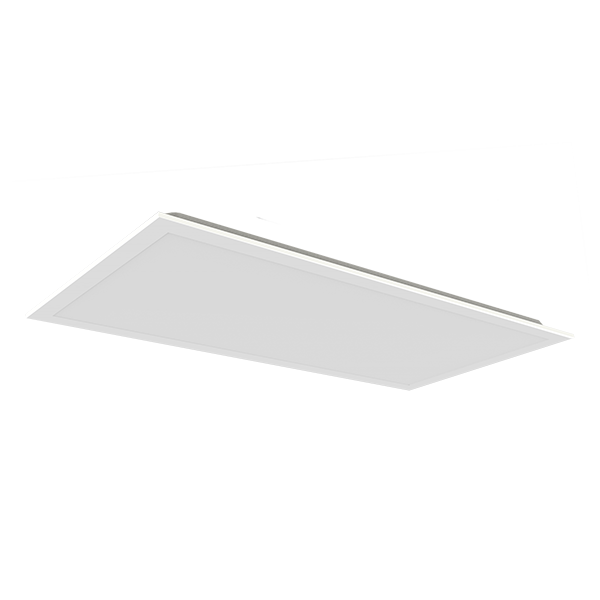

36W LED Backlit Panel 600 x 600 | Daylight | IP40 Rated | 100 lm/W Efficiency | by atom
The 36W LED Backlit Panel 600 x 600 is designed for efficient and effective lighting in commercial and office spaces. With a daylight color temperature of 5700K and an impressive efficiency of up to 100 lm/W, this recessed panel light ensures bright illumination while minimizing energy consumption. Its IP40 rating and durable powder-coated steel body make it suitable for various indoor applications, providing long-lasting performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Ceiling Panel Light, LED Backlit Ceiling Panel, Recessed LED Panel, 600x600 LED Panel Light
Technical Specifications
- Power: 36W
- Input Voltage: 230Vac (216-253V range)
- Frequency: 50 Hz
- Power Factor: 0.9
- IP Rating: IP40
- IC Rating: IC-4
- Colour Temperature: 5700K (Daylight)
- CRI: >80
- Beam Angle: 90°
- UGR: <19
- LED Voltage: 36V
- LED Current: 900 mA
- LED Lifetime: >60,000 hours (TM-21)
- Driver Type: Fixed output, non-dimmable
- Installation: Recessed
- Material: Powder-coated steel body, polycarbonate diffuser
- Operating Temperature: -10 to 40 °C
- Flex & Plug Length: 900 mm
- Wiring: Re-wireable flex & plug (2 pin)
- Dimensions (H x L x W): 10mm x 600mm x 600mm
- Weight: 3.5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated with IC-4 insulation compatibility
- Fixed installation with powder-coated steel body
- Polycarbonate diffuser for uniform light distribution
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- Long LED lifetime exceeding 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial and office lighting
- Retail and hospitality environments
- Educational and healthcare facilities
- Indoor general lighting requiring recessed installation
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainability
Warranty Information
Standard warranty of 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 36W LED Backlit Panel 600x600 - Daylight is available for immediate purchase, ideal for commercial, office, and retail recessed lighting applications.
