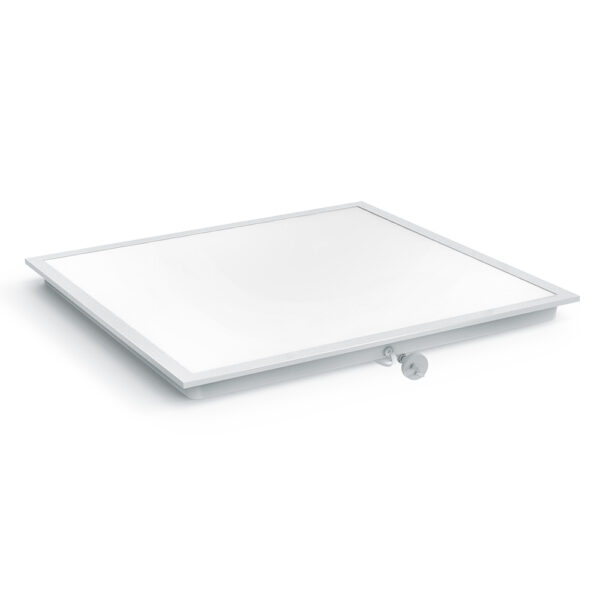

36W LED Backlit Panel 600 x 600 | TRI-CCT | IP40 Rated | Long LED Lifetime | by atom
The 36W LED Backlit Panel 600 x 600 is designed for versatile indoor lighting with TRI-CCT options of 3000K, 4000K, and 5700K. Ideal for commercial spaces, this panel features a high CRI of >80 for accurate color rendering and an impressive LED lifetime of over 60,000 hours. With an IP40 rating, it's perfect for various applications, ensuring energy efficiency and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Ceiling Panel Light, LED Backlit Panel, Tri-Colour Temperature LED Panel, Recessed LED Panel Light
Technical Specifications
- Power: 36W
- Input Voltage: 230Vac (216-253V range)
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Input Current: 0.2 A
- LED Voltage: 36 V
- LED Current: 900 mA
- Colour Rendering Index (CRI): >80
- Unified Glare Rating (UGR): <22
- Macadam Steps: 6-step MacAdam Ellipse
- LED Lifetime: >60,000 hours (TM-21 report)
- Operating Temperature Range: -10 to 40 °C
- IP Rating: IP40
- IC Rating: IC-4
- Driver Type: Fixed output, non-dimmable
- Installation: Recessed
- Material: Aluminium AL6063 body, Polystyrene diffuser
- Flex & Plug Length: 900 mm
- Switch Type: Inline
- Dimensions (H x L x W): 600mm x 40mm x 600mm
- Weight: 3.5 kg
Key Features
- Tri-CCT selectable colour temperature: 3000K, 4000K, 5700K
- High CRI >80 for accurate colour rendering
- Long LED lifetime >60,000 hours
- Fixed output driver included
- IP40 rated for indoor use
- IC-4 rated for safe insulation coverage
- Powdercoated aluminium body with polystyrene diffuser
- Non-dimmable with inline switch
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper recessed mounting.
Applications
- Commercial office lighting
- Retail and hospitality lighting
- Educational and healthcare facilities
- General indoor recessed lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Specific Requirements
- AS/NZS 61347.1 – Lamp Control Gear General Requirements
- AS/NZS 61347.2.13 – LED Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption
- Long product and LED lifetime reduces waste and replacement frequency
- Complies with energy savings schemes promoting sustainable use
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) for registered users. Warranty valid up to 15,000 operating hours.
Available Now
The Atom 36W LED Backlit Panel 600x600 TRI-CCT SER II is available for immediate purchase, ideal for commercial and indoor lighting applications requiring energy-efficient, long-lasting illumination.
