Home/Electrical/Lighting/Light Fittings/Batten Holders/LED Backlit Panel Light | 18W/36W | 3000K/4000K/5700K | High Efficiency by SAL

Trade Discount 3%

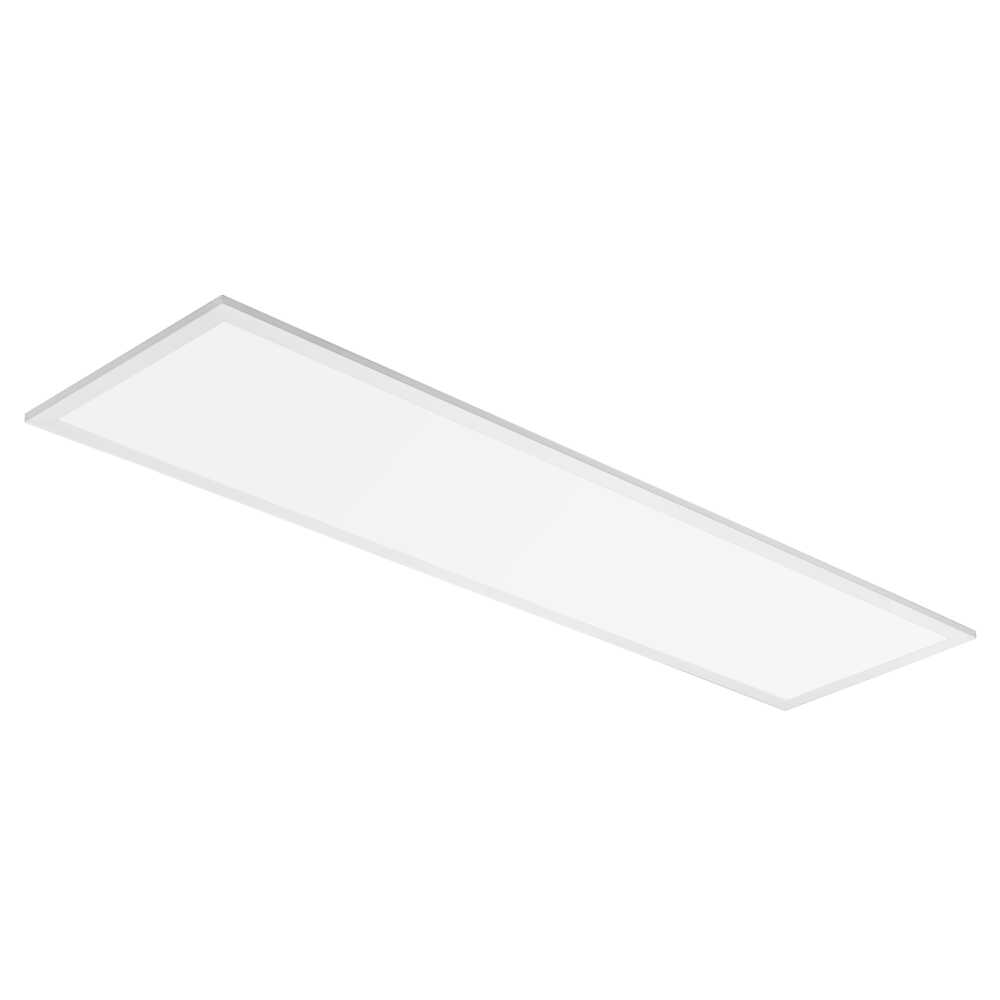

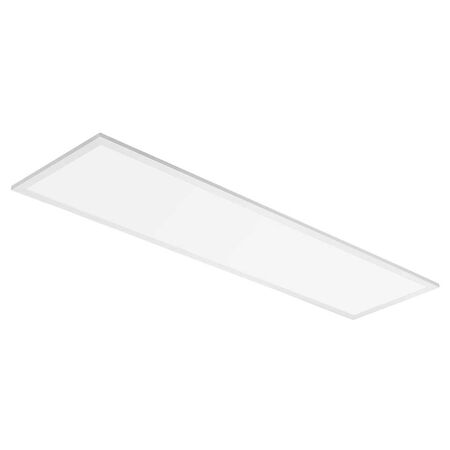

LED Backlit Panel Light | 18W/36W | 3000K/4000K/5700K | High Efficiency by SAL

BRAND: SAL

SKU: S9784/312TC/DP2

$69.30 List price: $71.80

+ −

30 Days Return Delivery Options

LED backlit panel with selectable CCT of 3000K/4000K/5700K and high efficiency opal diffuser—ideal for office and retail environments. Built for energy efficiency, with optional dimmable features for versatile lighting solutions.

Description
Attachments

Product Name/Title: PANEL S9784TC/DP2 - WHITE

Brand: SAL

SKU: S9784/312TC/DP2

Colour: WHITE

Alternatively Known As: LED Backlit Panel, Commercial LED Panel Light, Office LED Lighting

Technical Specifications

Input Voltage: 240V
Multiple Wattage: 18W/36W
Lumens: 3400/3750/3650
CRI: >90
Beam Angle: 110˚
Dimmable: Optional (Trailing edge, 1-10V, DALI / DSI)
IP Rating: IPART YES, VEET YES
Dimensions (H x L x W): 32mm x 1195mm x 295mm
Weight: 1.5 kg

Key Features

Selectable CCT: 3000K/4000K/5700K
High efficiency opal diffuser
Remote flickerCONTROLLED non-dimmable LED driver
Dimmable option available with various dimmer types

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Office spaces, retail environments
General: Any indoor location requiring efficient lighting solutions

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient design reduces power consumption and long-term waste.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The PANEL S9784TC/DP2 - WHITE is available now for immediate purchase. Ideal for commercial and office lighting applications.

Installation Sheets (S9784-312TC-DP_v24.pdf, 5,932 Kb) [Download]

Data Sheet (17261-d781292e4da9275da38b0fd87e344d6d.pdf, 350 Kb) [Download]

SDOC Files (DECLARATION_OF_CONFORMITY_-_LED_BACKLIT_PANEL_G2.pdf, 196 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
