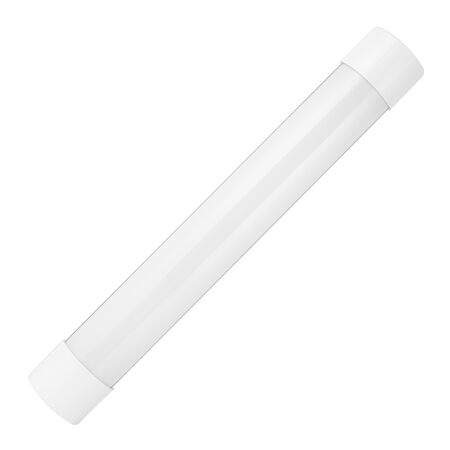

LED Batten CCT 20W | 1900lm | Switchable 3000K/4200K/6500K

BRAND: Brilliant Lighting

SKU: 20009/05

$41.50 List price: $54.00

+ −

30 Days Return Delivery Options

LED batten with 20W power and 1900lm output, switchable between 3000K, 4200K, and 6500K—ideal for commercial interiors and storage areas. Built for energy efficiency, with a slimline profile and easy surface mounting.

Description

Product Name/Title: LED Batten CCT 20W | 1900lm | Switchable 3000K/4200K/6500K

SKU: 20009/05

Alternatively Known As: LED Slimline Batten, Switchable Colour Temperature LED Batten, 20W LED Batten Light, LED Fluorescent Replacement Batten

Technical Specifications

Wattage & Lumens: 20W, Up to 1900lm
Colour Temperature: 3000K Warm White, 4200K Cool White, 6500K Daylight
Beam Angle: 120 degrees
Dimmable: No
CRI: >83
Lifespan: Up to 30,000 hours
IP Rating: IP20 indoor only
Colour Trim: White
Dimensions (H x L x W): 40mm x 40mm x 600mm
Weight: 0.5 kg

Key Features

Change between Warm White (3000K), Cool White (4200K) & Daylight (6500K) via slide switch
Elegant slimline profile
Aluminium body with polycarbonate end caps and diffuser
SMD LED Array
Long lasting up to 30,000 hours
High efficient and uniform light output
IP20 Indoor rating
Mounts directly to surface, brackets not required
Cable entry hole located at the centre position on the rear of the fixture
Non-dimmable

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.

Applications

General commercial interiors
Corridors
Warehousing
Garage and indoor storage areas

Standards & Compliance

AS/NZS 60598 – Luminaires safety and performance standards

Environmental Benefits

Energy-efficient LED technology reduces power consumption compared to fluorescent fittings
Long lifespan reduces waste and replacement frequency

Warranty Information

3-Year Replacement Warranty for residential use.

Available Now

The Brilliant LED Batten CCT 20W is available now for immediate purchase. Ideal for commercial interiors, corridors, warehousing, garages, and indoor storage areas.
