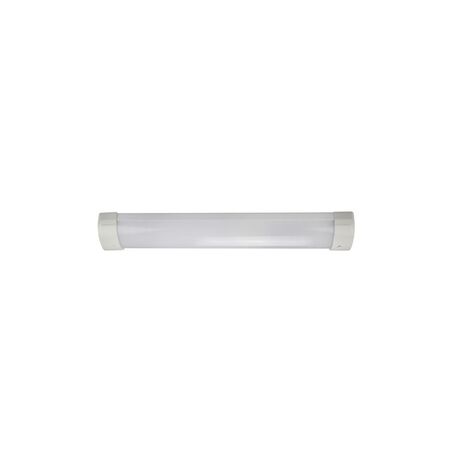

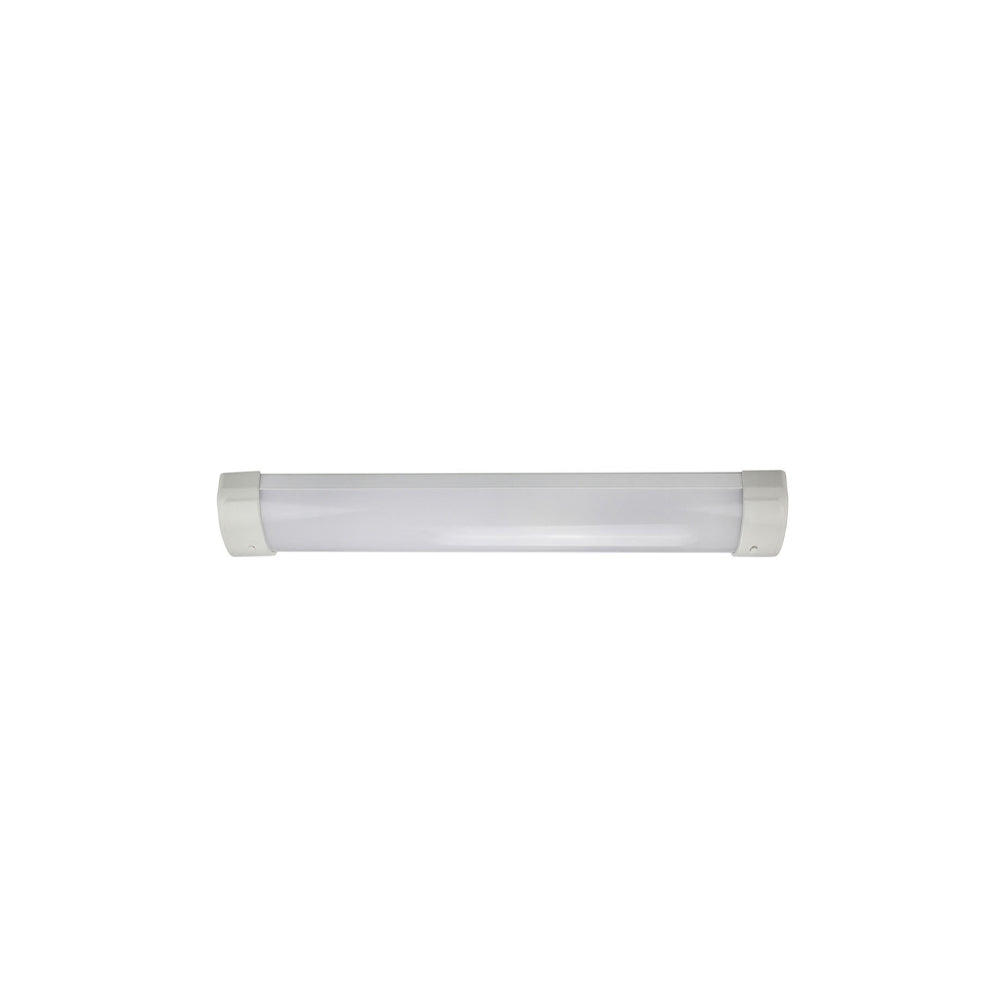

LED Batten Light 20W | 3CCT Selectable | 2200 Lumens | IP20 | White by Telbix
Illuminate your space with the 20W LED batten light featuring selectable 3CCT options (3000K, 4500K, 6500K) and a bright output of 2200 lumens. Ideal for indoor lighting in residential and commercial settings, this durable fixture is built with polycarbonate and aluminum for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power Wattage: 20W
- Voltage Input: 240V
- Lumens Output: 2200 lm
- Color Temperature: 3000K (Warm White), 4500K (Natural White), 6500K (Cool White)
- Color Rendering Index (CRI): >82
- Beam Angle: 120 degrees
- IP Rating: IP20
- Electrical Protection: Class I - High Voltage, Earth Required
- Surge Protection: 1.5 Kva
- Current Output: 250 mA
- Control Gear: Integrated
- Dimmable: No
- Fixture Material: Polycarbonate and Aluminium
- Diffuser Material: Polycarbonate
- Fixture Color: White
- Canopy Color: White
- Dimensions (H x L x W): 45.0mm x 630.0mm x 90.0mm
- Weight: 0.44 kg
Key Features
- Selectable 3 colour temperature options (3000K, 4500K, 6500K)
- Integrated LED SMD light source
- Beam angle of 120 degrees for wide illumination
- Surge protection of 1.5 Kva
- High power factor >0.90
- Durable polycarbonate and aluminium construction
- RCM approved
- Non-dimmable
- Class I electrical protection requiring earth
Professional Installation Requirements
- Installation required by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Indoor lighting for study and work areas
- Suitable for residential and commercial indoor spaces
- General lighting in offices, classrooms, and workspaces
Standards & Compliance
- AS/NZS 60598 – Luminaires safety and performance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption compared to traditional lighting.
- Long-lasting LED lifespan reduces waste and replacement frequency.
Warranty Information
3 years replacement warranty.
Available Now
The Telbix EDGE 60 20w LED Batten with 3CCT is available now for immediate purchase. Ideal for indoor lighting applications in residential and commercial environments.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
