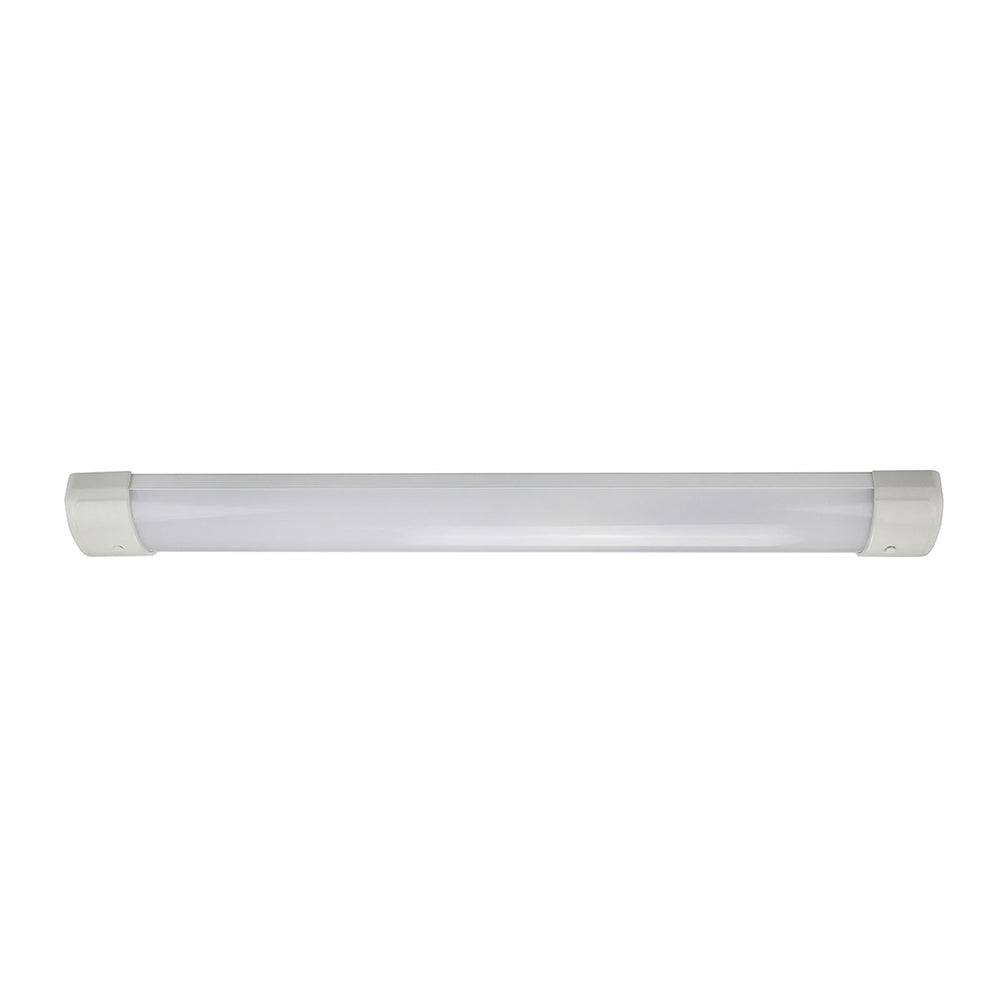

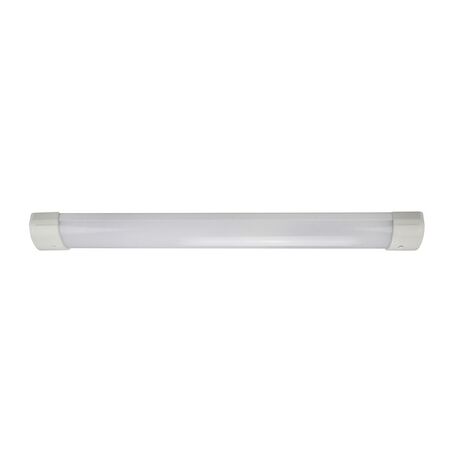

LED Batten Light 40W | 3CCT Selectable | 4000 Lumens | IP20 | White by Telbix

BRAND: Telbix
SKU: EDGE 120.40.3C
$75.50
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
Illuminate your space with the 40W LED batten light featuring selectable 3CCT options (3000K, 4500K, 6500K) and a bright output of 4000 lumens. Ideal for indoor study and work areas, this energy-efficient light is built for both commercial and residential environments.

Product Name/Title: EDGE 120 40w LED BATTEN - 3CCT

Brand: Telbix

SKU: EDGE 120.40.3C

Alternatively Known As: LED Linear Batten Light, 3CCT LED Batten, Telbix LED Batten Light, Edge LED Batten

Technical Specifications
  • Power Wattage: 40W
  • Voltage Input: 240V
  • Lumens Output: 4000 lm
  • Color Temperature: 3000K, 4500K, 6500K selectable
  • Color Rendering Index (CRI): >82
  • Beam Angle: 120°
  • IP Rating: IP20
  • Control Gear: Integrated
  • Dimmable: No
  • Surge Protection: 1.5 Kva
  • Electrical Protection: Class I - High Voltage, Earth Required
  • Fixture Material: Plastic and Metal
  • Diffuser Material: Polycarbonate
  • Fixture Color: White
  • Canopy Color: White
  • Globe Type: Integrated LED SMD
  • Current Output: 500 mA
  • Dimensions (H x L x W): 45.0mm x 1220.0mm x 90.0mm
  • Weight: 0.78 kg
Key Features
  • Selectable 3 colour temperature options: 3000K (Warm White), 4500K (Natural White), 6500K (Cool White)
  • Integrated LED SMD light source
  • Beam angle of 120 degrees for wide illumination
  • High color rendering index >82 for accurate color representation
  • Surge protection of 1.5 Kva included
  • Power factor greater than 0.90 for energy efficiency
  • Electrical protection Class I - high voltage with earth required
  • RCM approved
  • No assembly required
Professional Installation Requirements
  • Installation required by a licensed electrician to ensure compliance with electrical safety standards.
Applications
  • Indoor lighting for study and work areas
  • Office spaces
  • Commercial and residential indoor environments requiring efficient linear lighting
Standards & Compliance
  • AS/NZS 60598 – Luminaires safety and performance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption compared to traditional lighting.
  • Long-lasting LED lifespan reduces waste and replacement frequency.
Warranty Information

3 years replacement warranty.

Available Now

The Telbix EDGE 120 40w LED Batten with 3CCT is available for immediate purchase, ideal for indoor study and work lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
