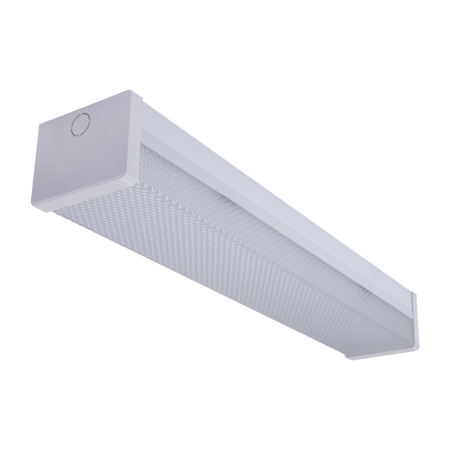

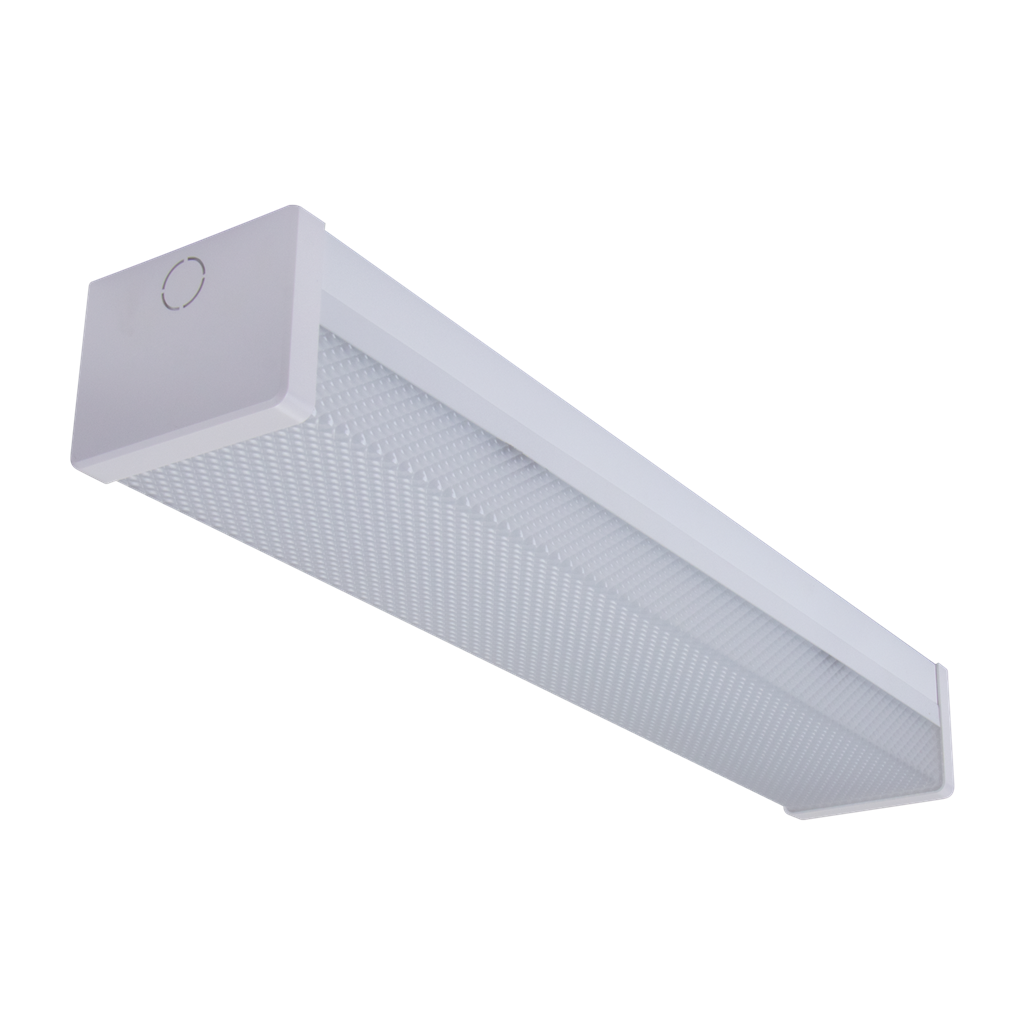

LED Batten Light 7.5 15W Dual Wattage Tricolour 3000K 4000K 5000K Surface Mounted Domus Lighting

SKU: 66072
$216.10 List price: $261.60
+
Upgrade your lighting with the LED Batten Light featuring dual wattage options of 7.5W and 15W, and tricolour switchable temperatures of 3000K, 4000K, and 5000K.
Technical Specifications
  • Wattage: 7.5W / 15W dual wattage selectable
  • Input Voltage: 240V
  • IP Rating: IP20
  • Colour Temperatures: 3000K, 4000K, 5000K switchable
  • Dimmable: No
  • Construction: High-quality sheet metal with white powder coat
  • Diffuser: Prismatic polycarbonate or wire guard options
  • Length: 600mm
  • Dimensions (H x L x W): 40mm x 600mm x 60mm
  • Weight: 1.2 kg
Key Features
  • Direct replacement for traditional T8 and T5 Wide Body Fluorescent battens
  • Dual wattage option with switch to reduce light output by half
  • Tricolour switchable LED colour temperatures: 3000K, 4000K, 5000K
  • Constructed from high-quality sheet metal with white powder coat finish
  • Available with prismatic polycarbonate diffuser or wire guard
  • Available in 600mm length with emergency model option
  • IP20 rated
  • Non-dimmable
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting setup.
Applications
  • Domestic: Laundries, garages, storerooms
  • Commercial: Underground carparks
  • Surface mounted lighting applications
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan reduces waste and replacement frequency
  • Dual wattage option allows for reduced energy use when full brightness is not needed
Warranty Information

Replacement warranty provided by Domus Lighting.

Available Now

The Domus Lighting PARK-60 DIFF 7.5/15W 600MM Wide Body Batten Trio Emergency is available now for immediate purchase. Ideal for domestic and commercial surface mounted lighting applications requiring energy-efficient and versatile LED batten lighting.

Data Sheet (PARK-60-DIFF-EM_Data_Sheet.pdf, 623 Kb) [Download]

Installation Manual (PARK-DIFF_Installation_Manual.pdf, 73 Kb) [Download]

Online Stockists (online-stockists, 211 Kb) [Download]
