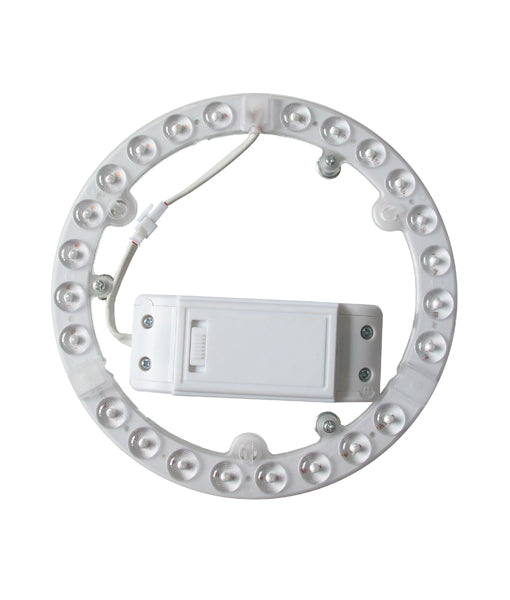

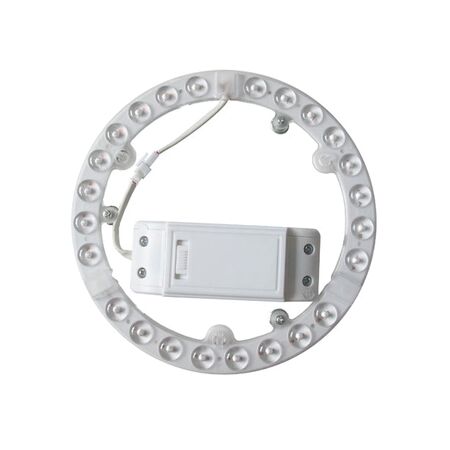

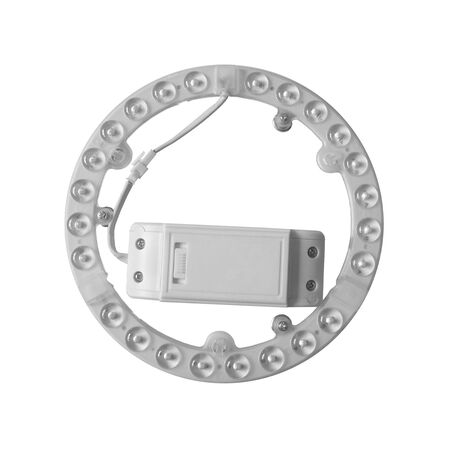

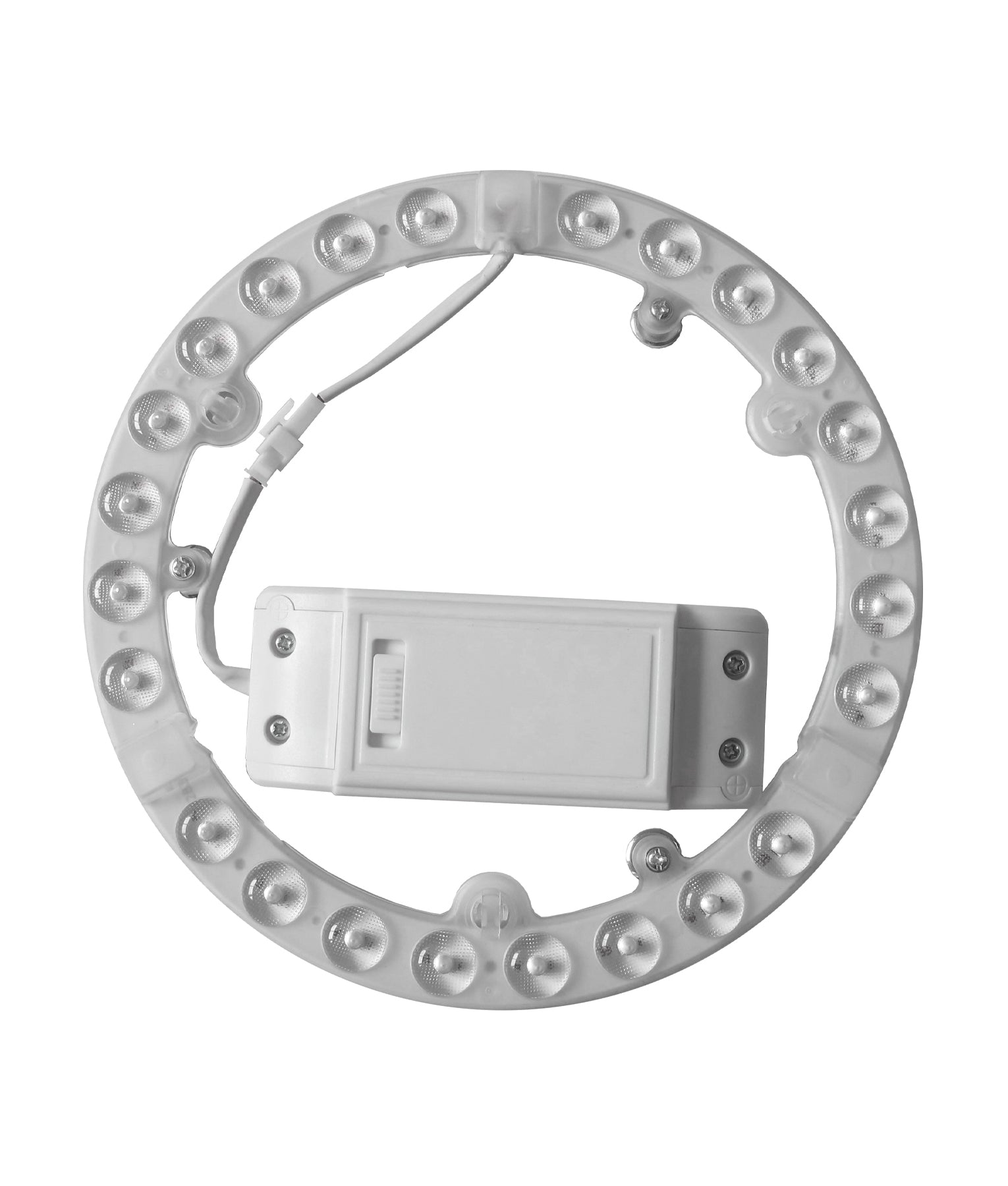

LED Circular Conversion Kit 24W Tri-Colour 230mm CLA Lighting

BRAND: CLA Lighting
SKU: CKTRI03
$60.20 List price: $80.30
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting LED circular conversion kit features 24W, tri-colour selectable CCT and 2400lm output. Ideal for upgrading oyster fittings to LED.

Alternatively Known As: CKTRI03 LED Conversion Kit, Tri‑Colour Oyster LED Kit

Technical Specifications
  • Power Consumption: 24 W
  • Selectable Colour Temperatures: 3000 K / 4000 K / 5000 K
  • Lumen Output: 2150 lm (3000 K) / 2400 lm (4000 K) / 2250 lm (5000 K)
  • Beam Angle: 120°
  • CRI: 80
  • Power Factor: > 0.8
  • Input Voltage: 220‑240 V AC 50 Hz
  • LED Chips: SMD2835
  • Ambient Temperature Range: –20 °C to 45 °C

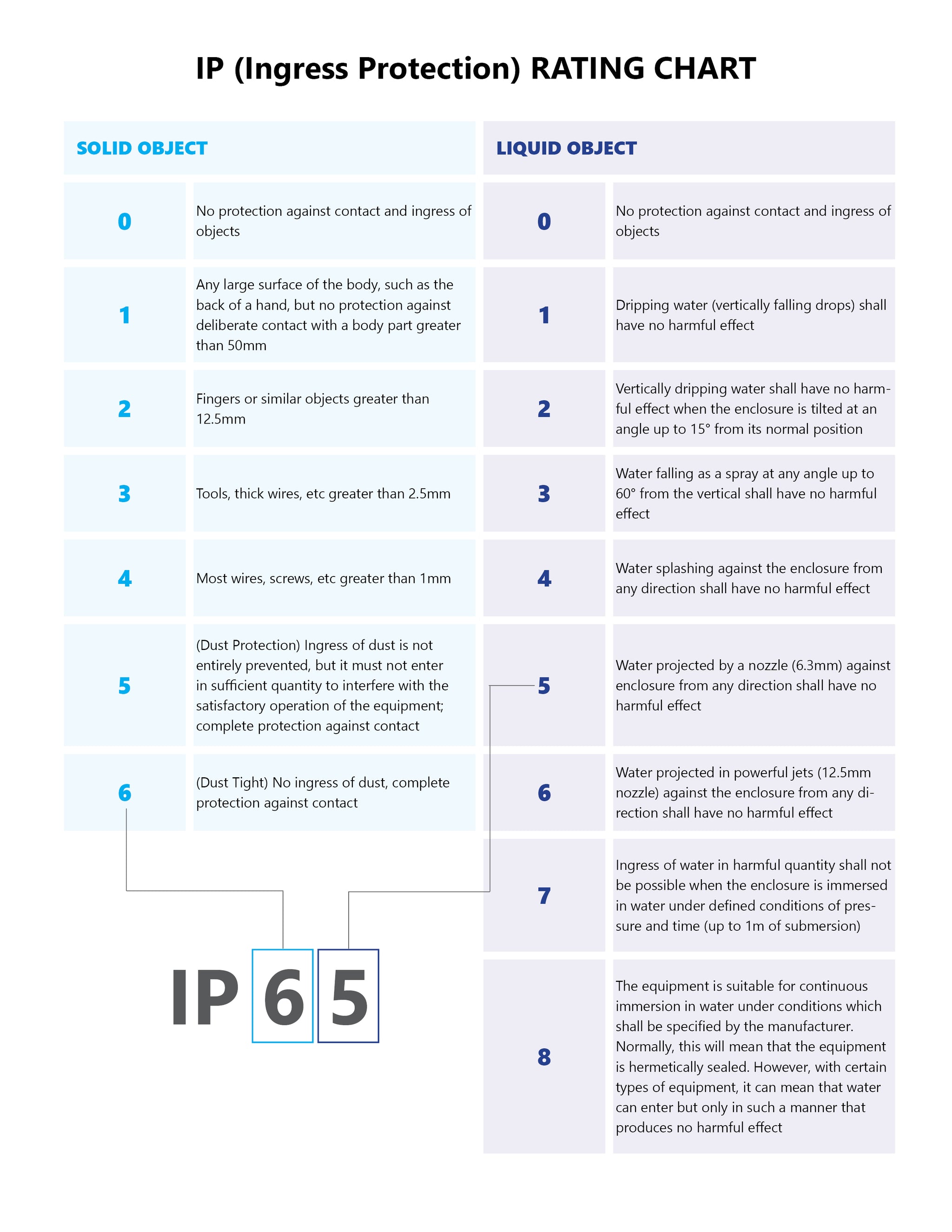

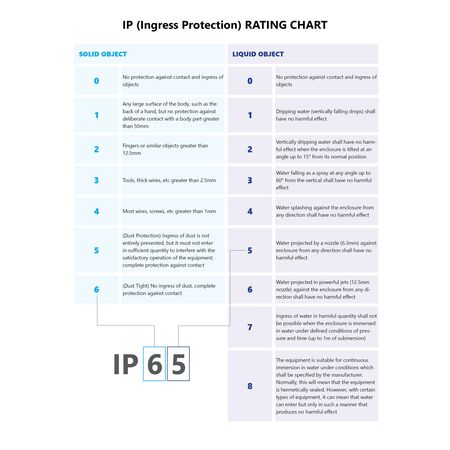

  • IP Rating: IP20
  • Double Insulated
  • Non‑dimmable
  • Suitable for 2‑way switching
  • Compatible with PIR or microwave sensors
  • Clear PC diffuser with PCB & aluminium heatsink
  • Rated Life: up to 20 000 h

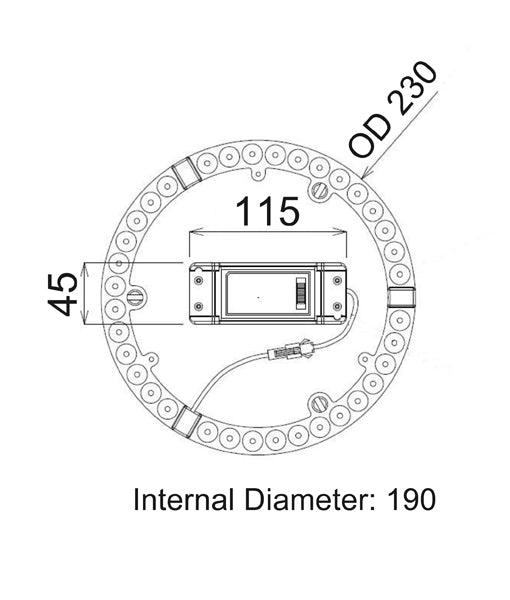

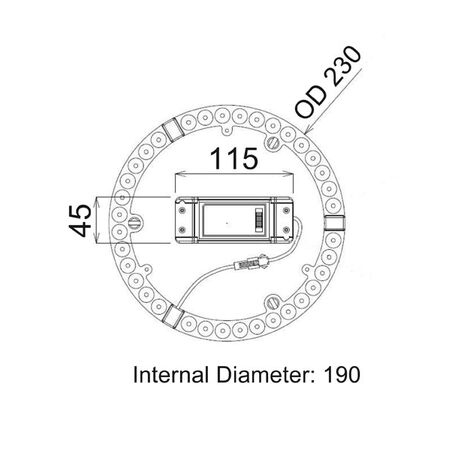

  • Dimensions (H x L x W): 230mm x 230mm x 27.5mm
  • Weight: 0.25 kg
Key Features
  • Tri‑CCT selectable on‑driver switch for warm, neutral, daylight settings
  • Includes constant‐current LED driver
  • Easy drop‐in retrofit for oyster fittings
  • Suitable for commercial indoor applications
  • Energy‑efficient LED delivering up to 2400 lm
  • Robust construction: double insulation, IP20 rated
Professional Installation Requirements
  • Installation should be performed by a qualified electrician in accordance with AS/NZS 3000 wiring rules.
Applications
  • Upgrade of existing fluorescent/circular oyster ceiling or wall fittings to LED
  • Commercial and residential indoor lighting requiring adjustable colour temperature
  • Use with motion or PIR/microwave sensor controls
  • Oyster-style fittings in corridors, kitchens, bathrooms (indoors, IP20)
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy‑efficient LED technology reduces power consumption compared with fluorescent alternatives
  • Long rated life (~20 000 h) reduces replacement frequency and waste
  • Use of recyclable materials (aluminium, PC diffuser) enhances sustainability
Warranty Information

2 year replacement warranty.

Available Now

Available through Aspen Pumps and authorised Australian electrical and lighting distributors.
