Home/Electrical/Lighting/Light Fittings/Downlights/LED COB Downlight 17W | 5 Colour Temp | 90-120mm Cutout

Trade Discount 23%

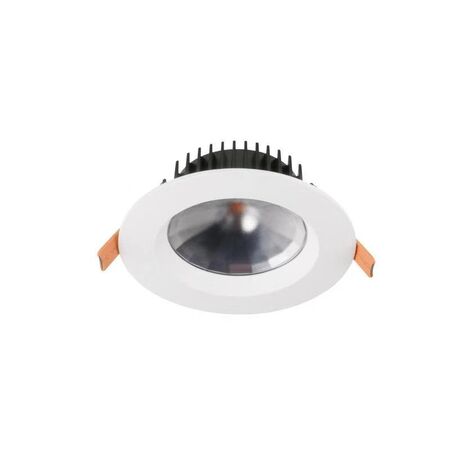

LED COB Downlight 17W | 5 Colour Temp | 90-120mm Cutout

BRAND: 3A Lighting

SKU: DL1584WH/TC

$36.40 List price: $47.40

+ −

30 Days Return Delivery Options

LED COB downlight with selectable 5 colour temperatures and 90-120mm cutout—ideal for residential and commercial spaces like reception areas, hotels, and shops. Built for versatility, with IP54 rating and dimmable driver for optimal lighting.

Description

Product Name/Title: LED COB Downlight 17W | 5 Colour Temp | 90-120mm Cutout

SKU: DL1584WH/TC

Alternatively Known As: LED Downlight 17W, COB LED Downlight, Dimmable LED Downlight, Colour Temperature Adjustable Downlight

Technical Specifications

Power: 17W
Selectable Colour Temperature: 2700K, 3000K, 4000K, 5000K, 5700K
Lumens Output: 960-1120lm
Cut-out Size: 90-120mm
IP Rating: IP54
Remote constant current dimmable LED driver included
Dimensions (H x L x W): 49mm x 125mm x 125mm
Weight: 0.3 kg

Key Features

Selectable colour temperature with an inbuilt DIP switch: 2700K, 3000K, 4000K, 5000K, 5700K
Available in White, Black, and Satin Chrome finishes
Lumens Output between 960 and 1120lm
Remote constant current dimmable LED driver with flex & plug
IP54 rated for moisture resistance

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper wiring and safety compliance.

Applications

Residential
Commercial areas such as reception areas, hotels, and shops

Standards & Compliance

Complies with AS/NZS 60598 for safety and performance standards.

Environmental Benefits

Energy-efficient LED technology reduces power consumption.
Long lifespan reduces waste and replacement frequency.

Warranty Information

3 years replacement warranty.

Available Now

The LED COB Downlight 17W is available now for immediate purchase. Ideal for residential and commercial lighting applications requiring adjustable colour temperature and dimmable features.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
