Home/Electrical/Lighting/Light Fittings/Strip Lighting/LED Corner Profile 16x16mm | Aluminium with Curved Opal Diffuser | 45° Light Focus by Domus Lighting

Trade Discount 17%

CORNER-16 16X16MM P/M C/W OPAL RND DIF & EC

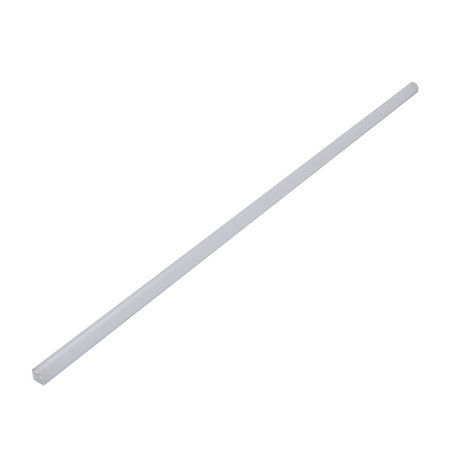

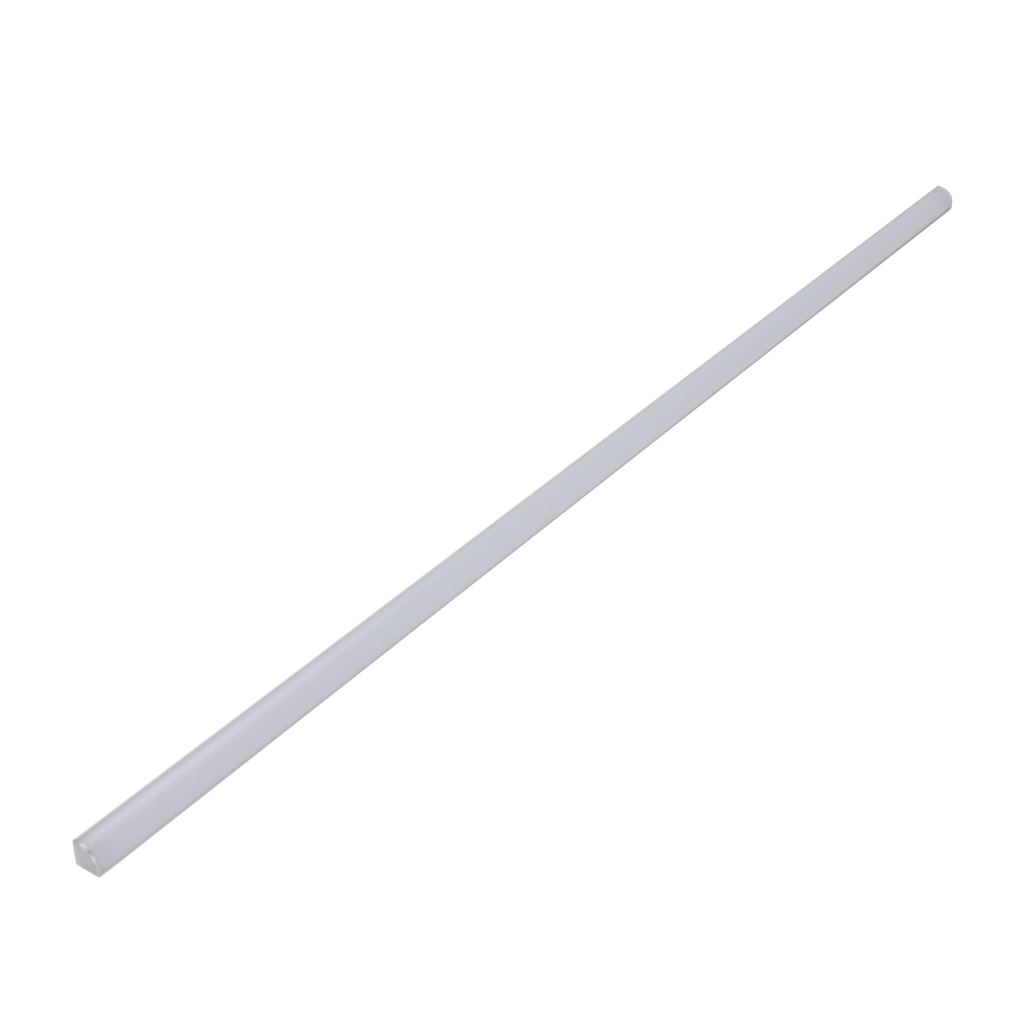

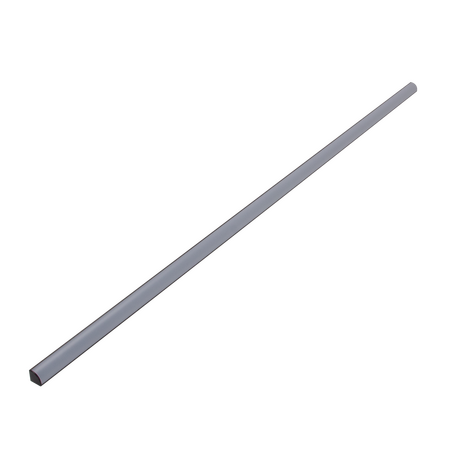

LED Corner Profile 16x16mm | Aluminium with Curved Opal Diffuser | 45° Light Focus by Domus Lighting

BRAND: Domus Lighting

SKU: 22026

$30.80 List price: $37.30

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

LED corner profile with 16x16mm dimensions and a curved opal PMMA diffuser—ideal for under kitchen cupboards and built-in wardrobes. Built for residential and commercial use, it conceals LED strip lighting while protecting it from foreign objects and vapours.

Description

Product Name/Title: CORNER-16 16X16MM P/M C/W OPAL RND DIF & EC

Brand: Domus Lighting

SKU: 22026

Alternatively Known As: LED corner profile, LED mounting channel, LED strip light profile, aluminium LED channel with diffuser

Technical Specifications

Material: Aluminium
Diffuser: Curved opal PMMA
Profile dimensions: 16mm width x 16mm height
Maximum length: 2.5 meters
Application: Corner mounting profile
Light angle: 45°
Dimensions (H x L x W): 16mm x 2500mm x 16mm
Weight: 0.2 kg

Key Features

Aluminium extruded mounting profile with curved opal PMMA diffuser
Conceals LED strip lighting and keeps it linear
Protects LEDs from foreign objects and vapours
Mounts against hard surfaces with 45° angled light focus
Suitable for corner applications

Professional Installation Requirements

Professional installation by a qualified electrician or lighting specialist is recommended to ensure proper mounting and electrical safety.

Applications

Under kitchen cupboards
Built-in wardrobes
Stairs
Mounting against hard surfaces, under shelving or steps

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Protects LED strips extending their lifespan and reducing waste
Aluminium material is recyclable
Improves energy efficiency by optimizing LED light output

Warranty Information

Standard manufacturer warranty applies. Please refer to Domus Lighting warranty terms.

Available Now

The Domus Lighting CORNER-16 16x16mm Aluminium LED Mounting Profile with Opal Round Diffuser is available now for immediate purchase. Ideal for residential and commercial lighting installations requiring neat and protected LED strip mounting in corners.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
