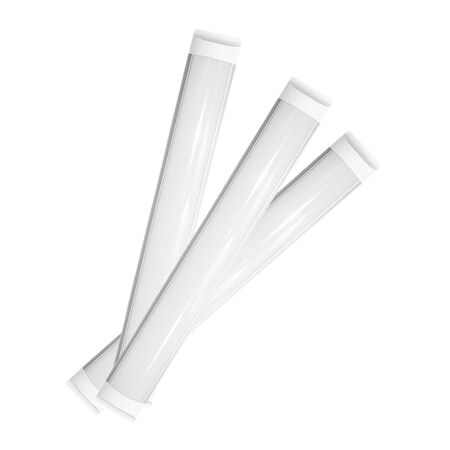

LED Dimmable Batten 18W | Tri-CCT 3000K/4000K/5000K | Surface Mounted
Interior surface mounted LED dimmable batten with Tri-CCT 3000K/4000K/5000K—ideal for versatile lighting needs. Built for energy efficiency, with a sleek design and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wattage: 18W
- Input Voltage: 220-240V AC 50/60Hz
- LED Chips: SMD2835
- Lumens Output: 1500lm (3000K), 1700lm (4000K), 1500lm (5000K)
- Colour Rendering Index (CRI): >80
- Beam Angle: 160°
- Power Factor: ≥0.9
- Operating Ambient Temperature: -20°C to 40°C
- IP Rating: IP20
- Housing Material: Powder coated aluminium
- Diffuser Material: Polycarbonate
- Heat Sink: Aluminium
- Inrush Current: <20A
- CCT Changeable via switch on fitting
- Suitable for dimming and 2-way switching
- Compatible with 3-wire motion and microwave sensors
- Dimensions (H x L x W): 30 mm x 600 mm x 75 mm
- Weight: 0.8 kg
Key Features
- Dimmable LED batten with tri-colour temperature options (3000K, 4000K, 5000K)
- Surface mounted design with powder coated aluminium housing
- Inbuilt constant current driver with low inrush current (<20A)
- Suitable for 2-way switching and sensor integration
- High power factor (≥0.9) and CRI >80 for quality lighting
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct wiring, dimmer compatibility, and sensor integration.
Applications
- Interior lighting for residential and commercial spaces
- Suitable for offices, corridors, kitchens, and general indoor areas
- Compatible with motion and microwave sensors for automated lighting control
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption
- Long lifespan reduces waste and replacement frequency
- Compatible with dimming and sensor controls to optimize energy use
Warranty Information
3 year replacement warranty.
Available Now
The Razord LED Dimmable Batten 18W Tri-CCT is available now for immediate purchase. Ideal for indoor residential and commercial lighting applications requiring flexible and efficient illumination.
