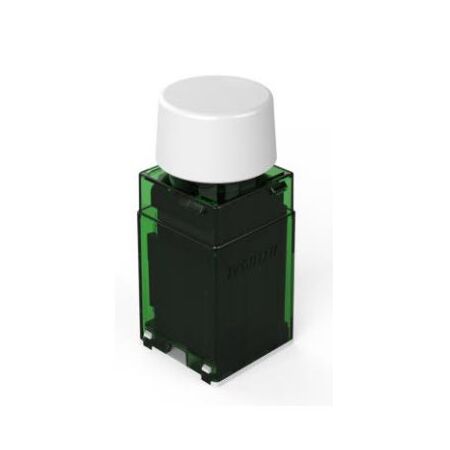

LED Dimmer Mechanism 150W | Rotary with White Knob | Kick Start Feature
LED dimmer mechanism with 150W capacity and rotary control—ideal for dimmable LED, halogen, and incandescent loads. Built for smooth dimming, with kick start for faster LED activation and adjustable brightness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Dimmer Mechanism 150W | Rotary with White Knob | Kick Start Feature
SKU: 32ELEDM2-WE
Alternatively Known As: LED Rotary Dimmer, 150W LED Dimmer Switch, Clipsal LED Dimmer, Rotary Light Dimmer, LED Light Dimmer Switch
Technical Specifications
- Load Rating: 150W for LED, halogen, and incandescent bulbs
- Control Type: Rotary
- Design: Digital electronic 2-wire
- Dimming Range: 1-100% (load dependent)
- Features: Kick start for faster LED turn on, adjustable minimum brightness
- Protection: Short circuit, over-current, over-temperature
- Switching: Suitable for 1-way or 2-way applications
- Dimensions (H x L x W): 50mm x 40mm x 30mm
- Weight: 0.2 kg
Key Features
- 150W load rating for LED, halogen, and incandescent bulbs
- Rotary control with smooth dimming from 1-100% (load dependent)
- New digital electronic 2-wire design for optimum LED dimming performance
- Kick start feature for faster LED turn on at low settings
- Adjustable minimum brightness for optimized dimming range
- In-built short circuit, over-current, and over-temperature protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Residential lighting control for dimmable LED, halogen, and incandescent lights
- Commercial lighting systems requiring smooth dimming and energy efficiency
- Suitable for 1-way or 2-way switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Optimizes energy use by enabling precise dimming of LED and other lighting types
- Reduces power consumption and extends bulb life through smooth dimming control
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal LED Dimmer Mechanism 150W Rotary with White Knob and Kick Start Feature is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
