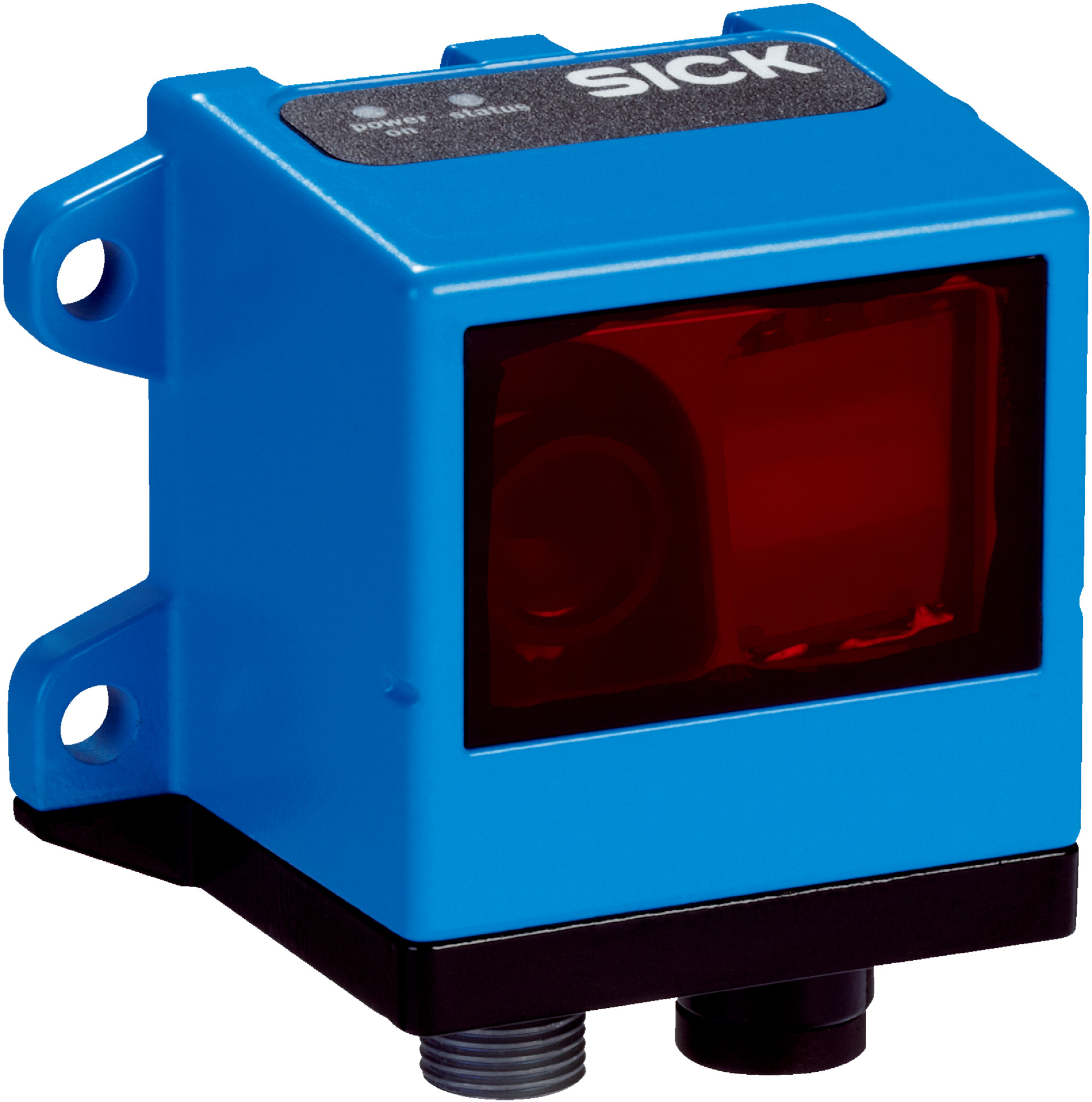

LED Distance Sensor OLM100-1201 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The OLM100-1201 LED Distance Sensor is designed for industrial automation, offering an impressive measuring range of up to 10,000 m with high resolution of 0.1 mm. Ideal for quality control and material handling, this sensor features a fast output time of 1 ms and is housed in a durable IP65 enclosure, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Distance Sensor OLM100-1201 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1053074
Alternatively Known As: OLM100-1201 LED Distance Sensor, SICK Measurement Sensor, Industrial LED Sensor
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 0.15 mm
- Output time: 1 ms
- Light source: Red LED
- Max movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- EMC: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Interface: SSI
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 0.15 mm
- Fast output time of 1 ms
- Red LED light source
- Maximum movement speed of 7 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width compatibility of 30 mm
- IP65 rated enclosure for dust and water protection
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control in manufacturing processes
- Material handling and logistics for object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK OLM100-1201 LED Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
