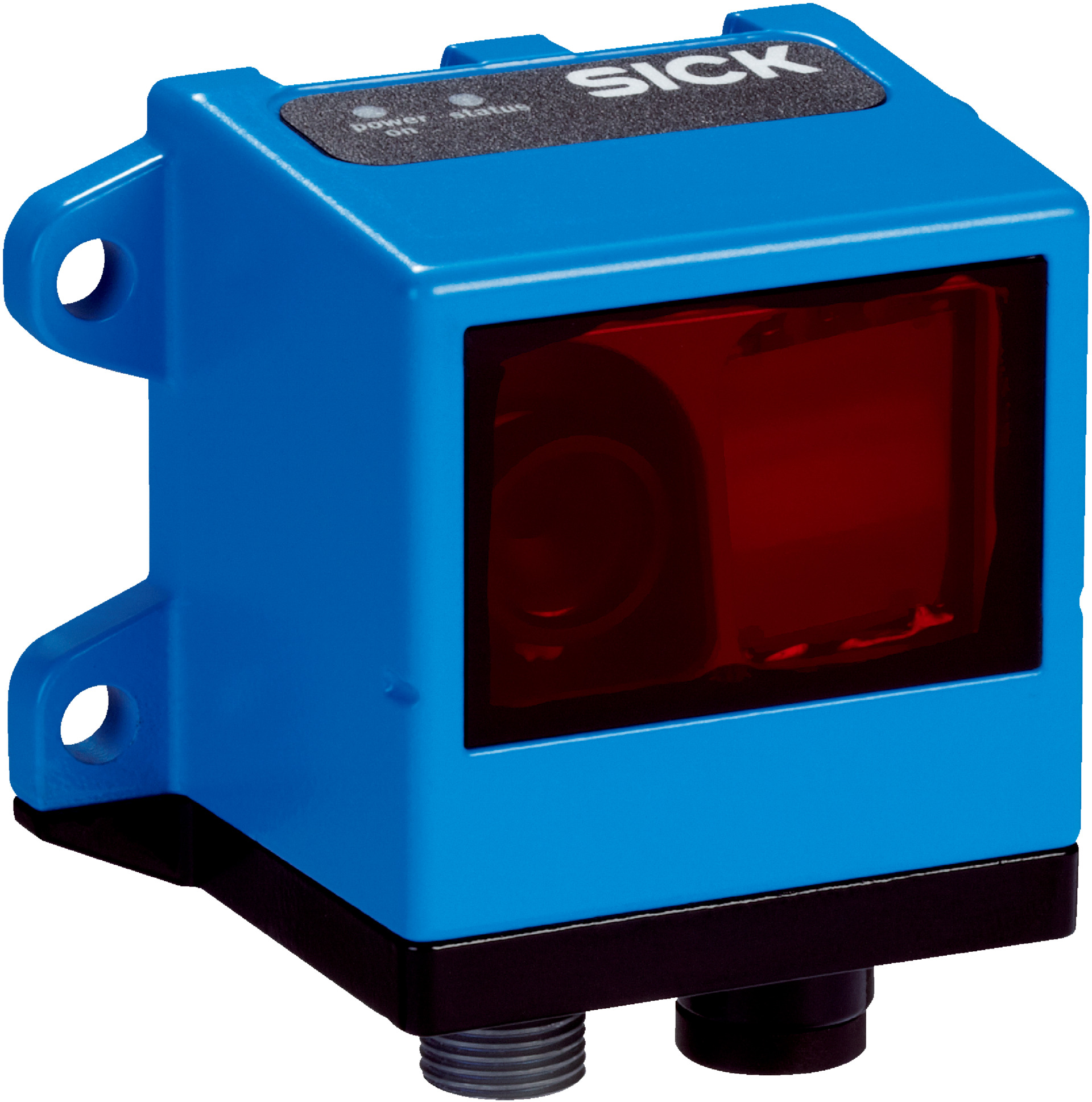

LED Distance Sensor OLM100-1206 | 10,000 m Measuring Range | 0.1 mm Resolution | IP65 Rated | by SICK
The OLM100-1206 LED Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range of up to 10,000 m and a high resolution of 0.1 mm. With an IP65 rated enclosure, it ensures durability in harsh environments, making it ideal for quality control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 0.15 mm
- Output time: 1 ms
- Light source: Red LED
- Max movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- Electromagnetic compatibility: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 60mm x 100mm x 120mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 0.15 mm
- Fast output time of 1 ms
- Red LED light source
- Max movement speed of 7 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width detection of 30 mm
- CANopen interface for easy integration
- IP65 rated enclosure for dust and water resistance
- Wide operating temperature range from -30 °C to +60 °C
- Vibration and shock resistant according to DIN/EN standards
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK OLM100-1206 LED Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
