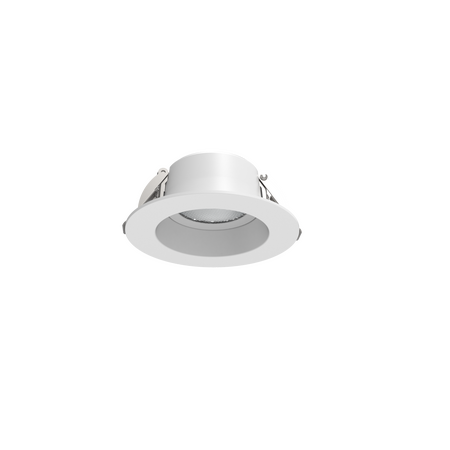

LED Downlight 7W | Antiglare | 3CCT Selectable | IP54 White by 3A Lighting
LED downlight with 7W power and antiglare design—ideal for residential and commercial spaces. Built for energy efficiency, with 3CCT selectable color temperature and IP54 rating for dust and splash resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 7w LED Downlight Antiglare White
Brand: 3A Lighting
SKU: DL108-WHTC7S03
Alternatively Known As: LED Downlight, 3CCT Downlight, Epistar Downlight, Low Glare Downlight, UGR19 Downlight, 3A Lighting Downlight
Technical Specifications
- LED Chip: Epistar SMD
- CRI: >90
- Input Voltage: AC220-240V 50/60Hz

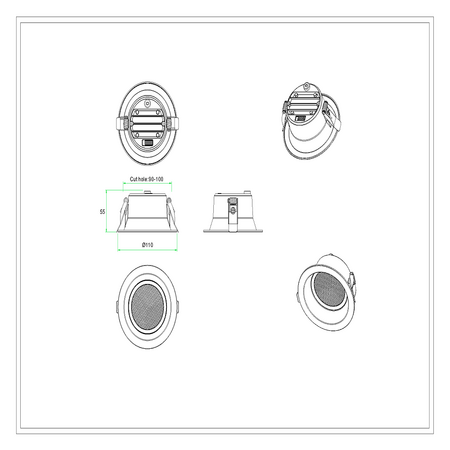

- Size: Ø110x55 mm
- Cutout: Ø90-100 mm
- Beam Angle: 60°
- Surface IP Rating: IP54
- Color: White
- 3CCT selectable
- UGR: <19
- Luminous Flux: 160lm
- Dimensions (H x L x W): 55mm x 110mm x 110mm
- Weight: 0.3 kg
Key Features
- Epistar SMD LED chip for reliable performance
- High CRI >90 for superior color rendering
- 3CCT selectable color temperature
- Surface IP54 rated for dust and splash resistance
- UGR<19 for low glare lighting
- Wide 60° beam angle
- Cutout size: Ø90-100 mm
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal safety.
Applications
- Residential: Living rooms, bedrooms, kitchens, hallways
- Commercial: Offices, retail stores, hospitality venues
- General: Any indoor area requiring energy-efficient, high-CRI downlighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption.
- Long lifespan minimizes waste and replacement frequency.
- High efficacy lighting supports sustainable building practices.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The 3A Lighting DL108-WHTC7S03 LED Downlight is available for immediate purchase. Ideal for residential and commercial spaces requiring efficient, high-quality lighting.
