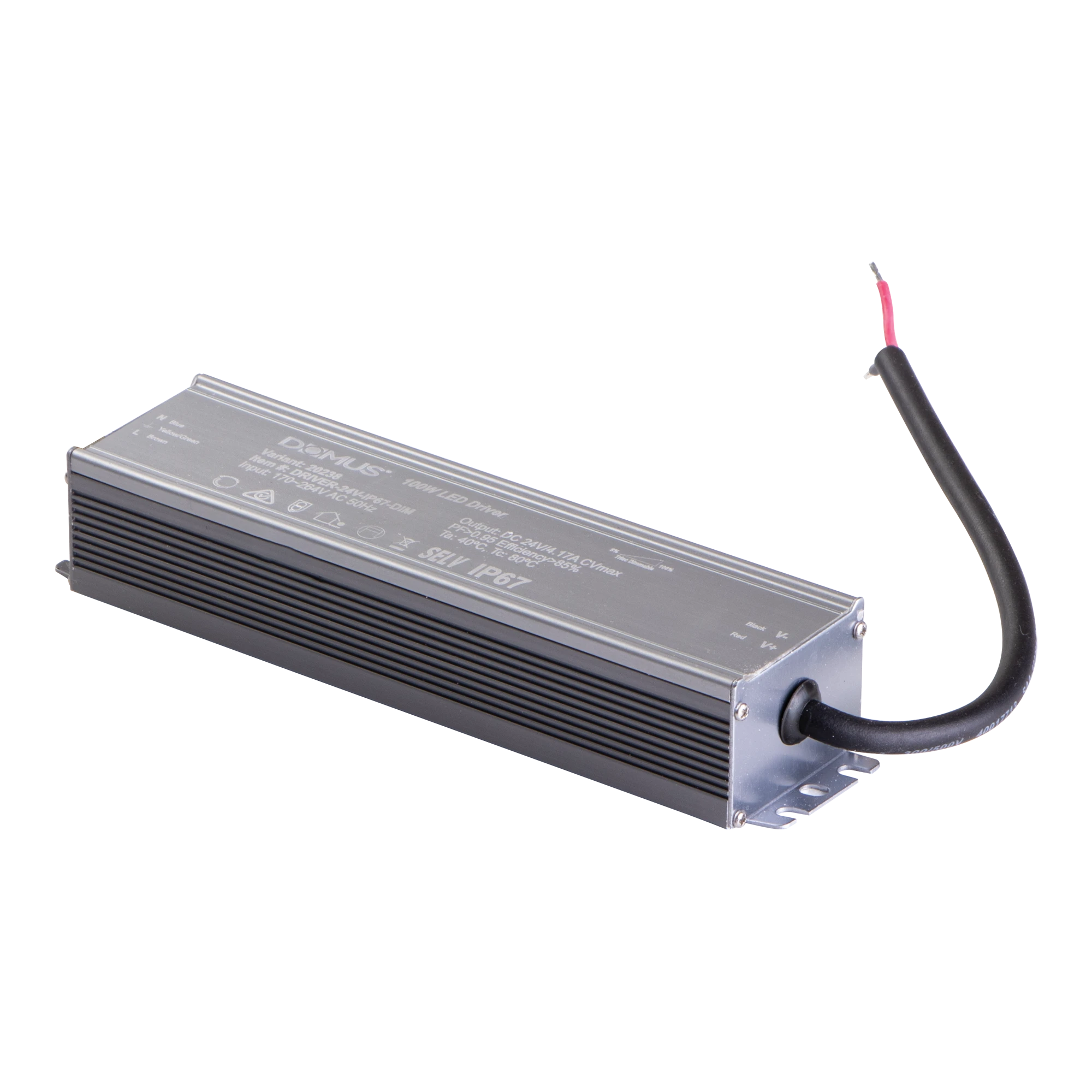

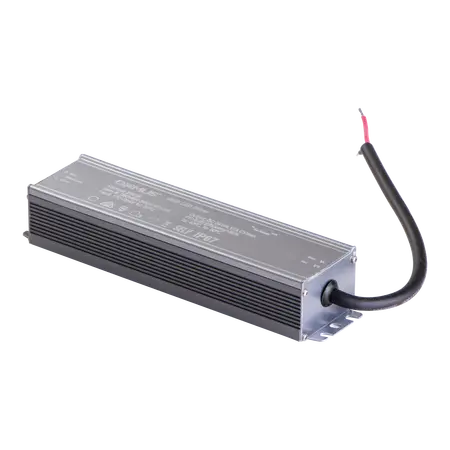

LED Driver 100W 12V DC Constant Voltage IP67 Dimmable Domus
Domus 100W 12V DC constant voltage LED driver, IP67, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Constant Voltage LED Driver, Triac Dimmable LED Power Supply, Outdoor LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Power Output: 100W
- Output Current: 8.33A
- Dimming: Triac dimmable with compatible dimmers
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Operating Temperature: -30°C to +45°C
- Working Humidity: 5–95% RH
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Flicker Free: Yes
- Variant Item Number: 23195
- Dimensions (H x L x W): 32mm x 180mm x 44mm
- Weight: 0.616 kg
Key Features
- Provides regulated 12V DC constant voltage output for compatible LED products
- Suitable for 12V LED strip lighting, inground uplighters, garden spike lights and landscape lighting
- Triac dimmable when used with a compatible dimmer
- IP67-rated housing for outdoor and weatherproof applications
- Built-in electrical and thermal protection functions
- Supplied with 1m flex and plug
- Flicker-free operation
- Suitable for parallel wiring
- Backed by a five-year replacement warranty for residential IP67 power supply applications
Professional Installation Requirements
- Installation and connection to 240V AC mains must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use only compatible Triac dimmers and 12V constant voltage LED loads.
Applications
- 12V LED strip lighting
- Outdoor architectural and landscape lighting
- Inground uplighters
- Garden spike lights
- Weatherproof LED fittings
- Residential and commercial low-voltage lighting systems
Standards & Compliance
- AS/NZS 61347.1:2016 - Lamp controlgear, general and safety requirements
- AS 61347.2.13:2018 - Particular safety requirements for electronic controlgear for LED modules
- AS/NZS 3000 - Electrical installations and connection of the 240V AC supply
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- IP67 construction supports extended service life in suitable outdoor installations, reducing replacement waste
- Built-in overload, over-temperature and over-voltage protection helps protect the driver and connected LED equipment
- Constant voltage operation supports efficient use of compatible LED strip and low-voltage lighting systems
Warranty Information
Five-year replacement warranty for residential IP67 power supplies and three-year replacement warranty for commercial IP67 power supplies, subject to Domus warranty conditions. Warranty claims require proof of purchase, licensed electrician installation and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
