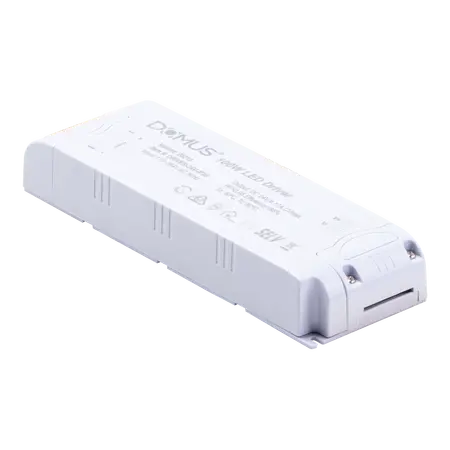

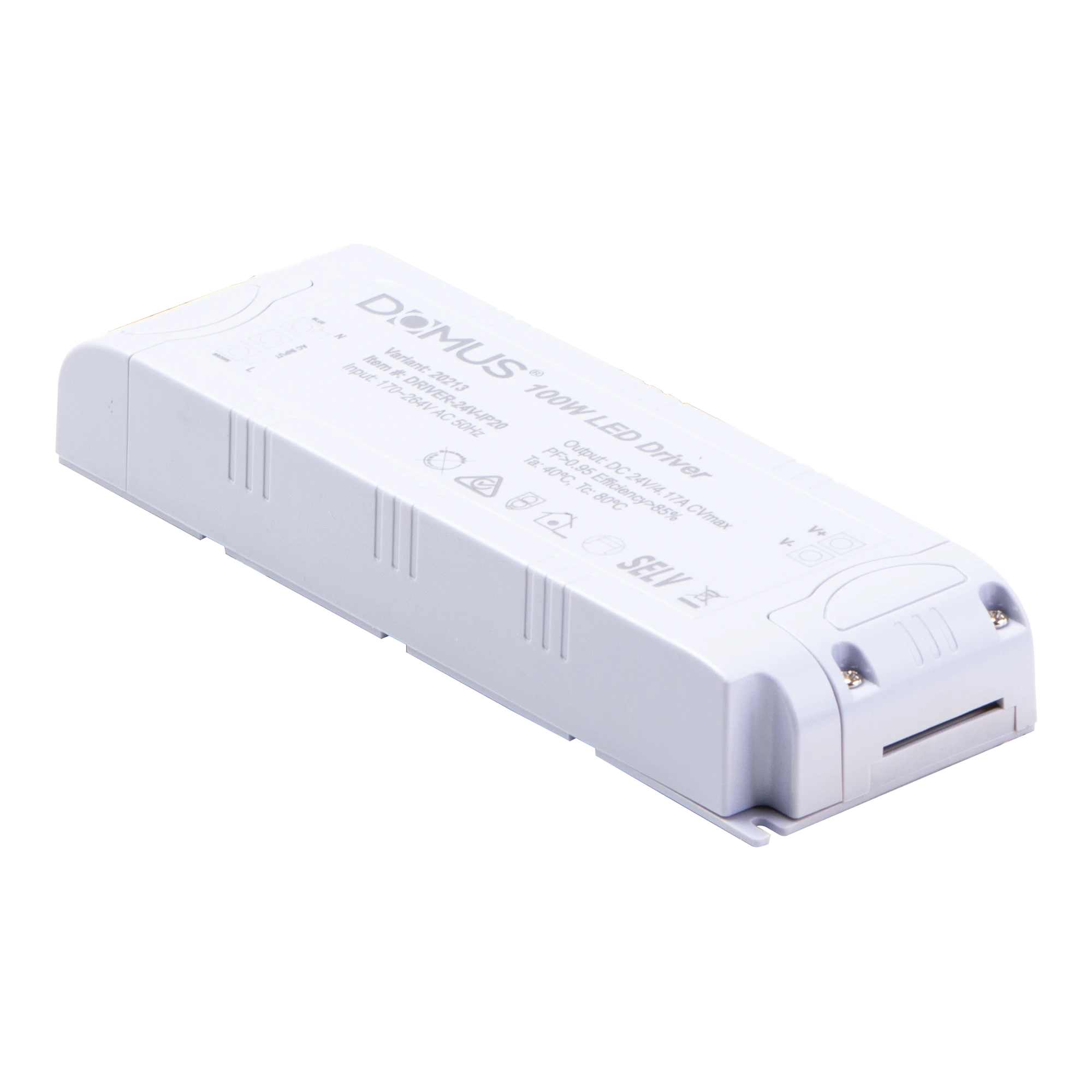

LED Driver 100W 24V DC Constant Voltage IP20 Dimmable Domus
Domus 100W 24V DC constant voltage LED driver, IP20, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus DRIVER-24V-IP20-DIM 100W, 24V LED Strip Driver, Triac Dimmable LED Power Supply
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 100W
- Output Current: 4.17A
- Dimming: Triac dimmable with compatible dimmers
- IP Rating: IP20
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Flicker Performance: Flicker free when installed less than 2m from the light source
- Installation Environment: Indoor use only
- Dimensions (H x L x W): 30mm x 189mm x 65mm
- Weight: 0.5 kg
Key Features
- Provides regulated 24V DC output for constant-voltage LED strips and fittings
- Compatible with suitable Triac dimmers
- Suitable for LED strip lighting, inground uplighters and garden spike lighting
- Built-in electrical and thermal protection functions
- Supplied with 1m flex and plug
- Compact IP20 housing for indoor installations
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Mains electrical connection and installation should be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Use only with compatible 24V constant-voltage LED loads and a suitable dimmer.
Applications
- 24V constant-voltage LED strip lighting
- Indoor architectural and feature lighting
- Inground uplighter systems
- Garden spike lighting installed in protected indoor or suitable controlled environments
- Residential and commercial LED lighting installations
Standards & Compliance
- AS/NZS 3000: Electrical installations — applicable to the connection and installation of this mains-powered LED driver
- AS/NZS 61347.1 and AS/NZS 61347.2.13: Relevant safety standards for lamp controlgear and LED controlgear; product-specific certification is not stated on the published Domus product documentation
Environmental Benefits
- Up to 89% efficiency and power factor greater than 0.95 can help reduce operating losses
- Constant-voltage operation supports efficient 24V LED lighting systems
- Built-in protection functions can help extend service life and reduce premature replacement waste
- Replaceable driver design can reduce the need to replace an entire LED lighting installation
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
