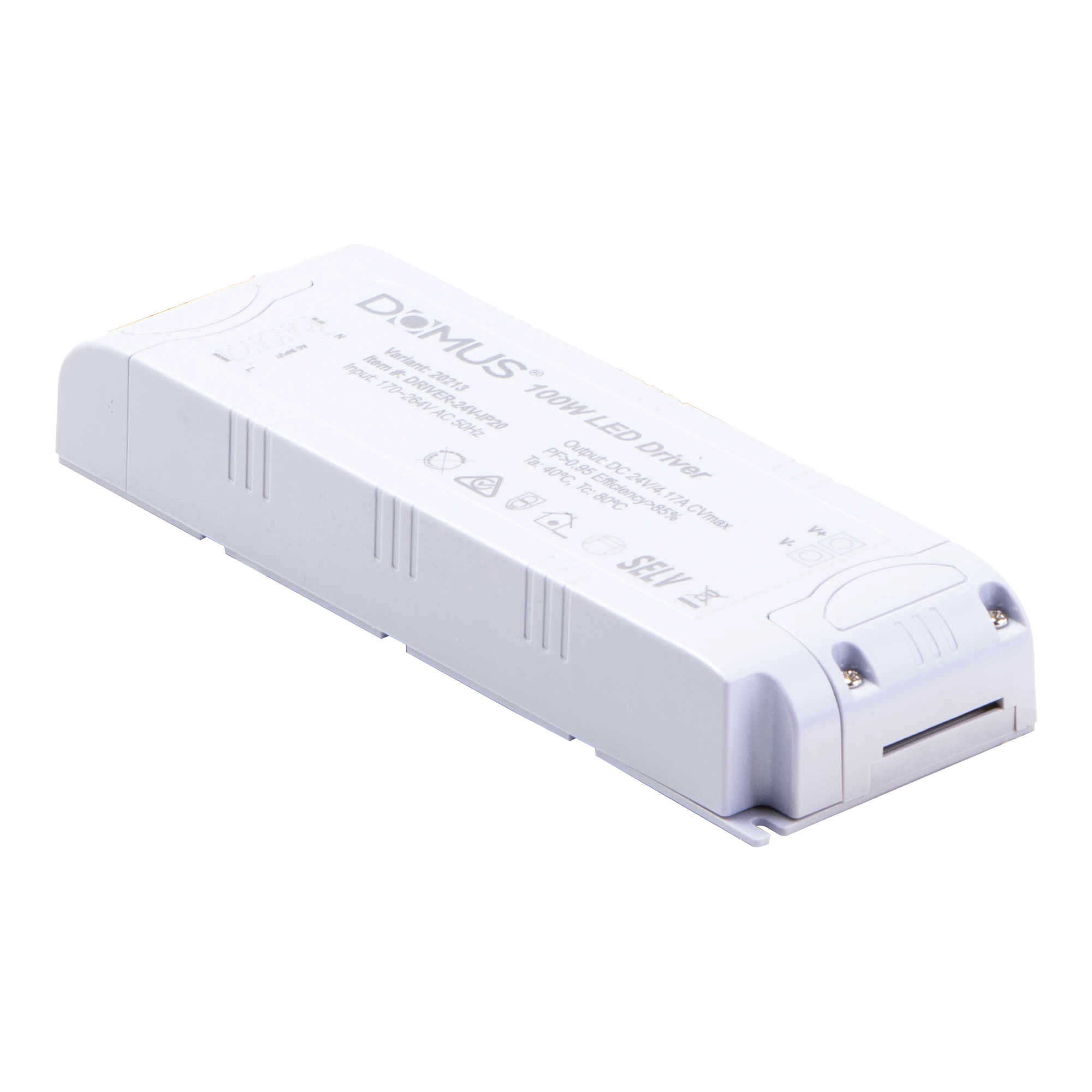

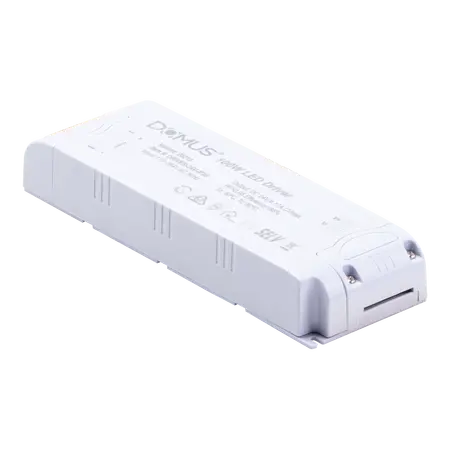

LED Driver 100W 24V DC Constant Voltage IP20 Non-Dimmable Domus
Domus 100W 24V DC constant voltage LED driver, IP20, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, 24V LED Power Supply, Non-Dimmable LED Strip Driver
Technical Specifications
- Model: DRIVER-24V-IP20
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 100W
- Output Current: 4.2A
- IP Rating: IP20
- Dimming: Non-dimmable
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Flicker: Flicker-free when installed within 2m of the light source
- Wiring: Parallel wiring
- Cable and Plug: Supplied with 1m flex and plug
- Dimensions (H x L x W): 30mm x 189mm x 65mm
- Weight: 0.14 kg
Key Features
- Constant voltage output for compatible 24V DC LED strip and fittings
- Suitable for indoor LED lighting applications
- Built-in secondary-side short-circuit protection
- Thermal overload and over-temperature protection
- Over-voltage protection
- Non-dimmable design for stable operation
- Compact housing suitable for indoor installation
Professional Installation Requirements
- Connection to 240V AC mains must be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Install only in dry indoor locations appropriate for the IP20 rating.
Applications
- 24V constant voltage LED strip lighting
- Indoor architectural and decorative lighting
- Inground uplighters installed in suitable dry locations
- Garden spike lighting supplied from a protected indoor installation
- General 24V DC LED lighting systems
Standards & Compliance
- Applicable safety standard: AS/NZS 61347.2.13 for light-emitting semiconductor controlgear
- AS/NZS 61347.1 general safety requirements for lamp controlgear
- Installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- Power factor greater than 0.95 supports efficient use of mains power
- Enables efficient low-voltage LED lighting systems with lower operating power than many conventional lighting technologies
- Built-in protection features can help extend service life and reduce premature replacement waste
Warranty Information
Backed by a 5-year replacement warranty according to the Domus product information. Warranty claims require proof of purchase, compliant installation and installation by a licensed electrician; applicable terms may vary by application.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
