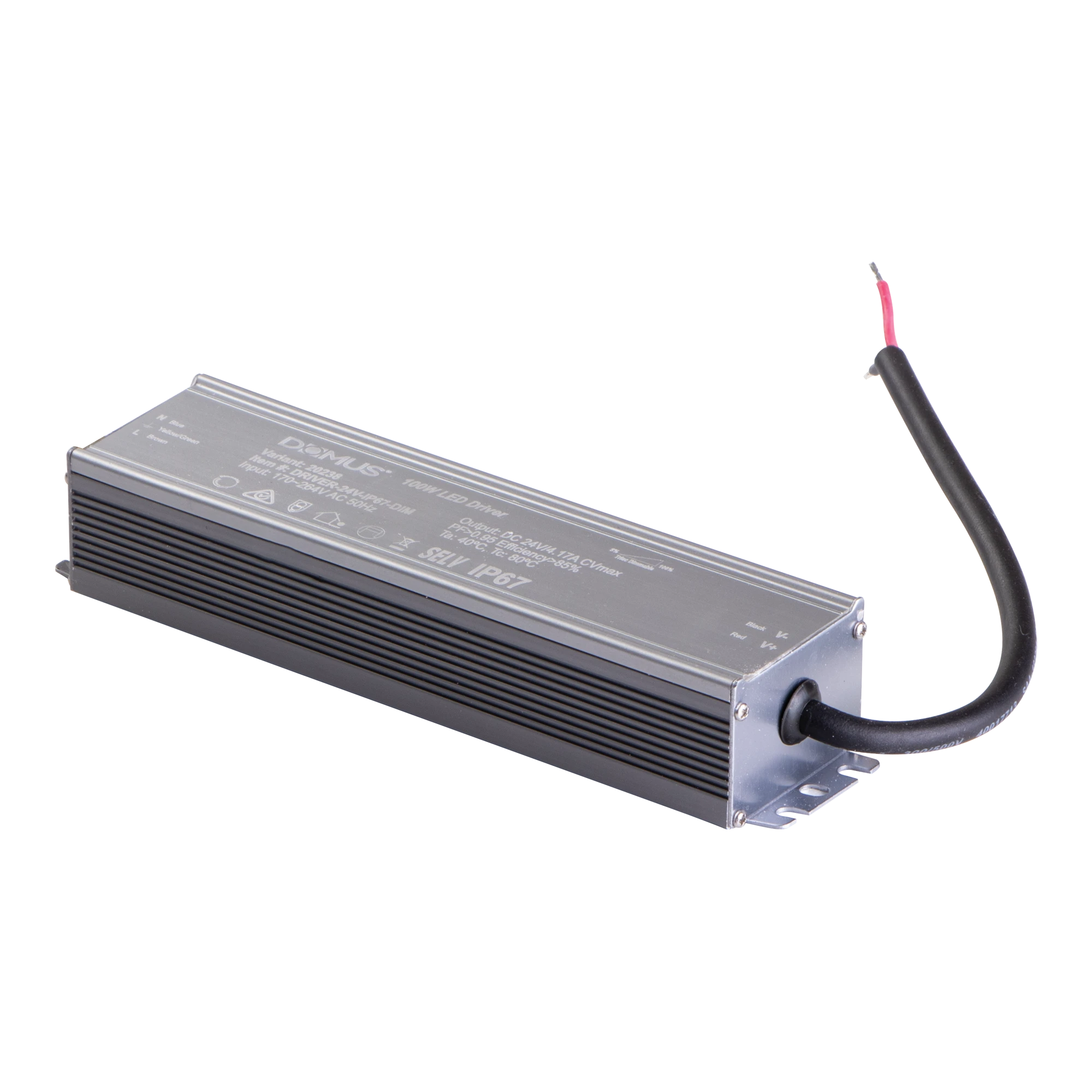

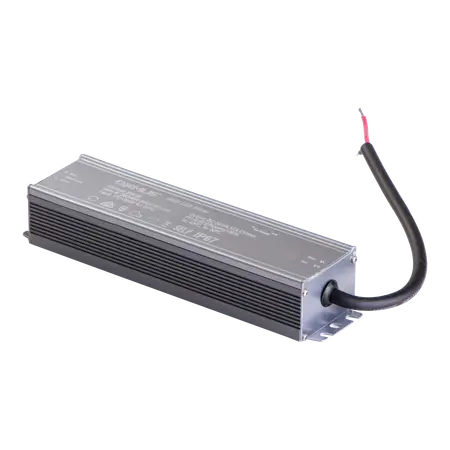

LED Driver 100W 24V DC Constant Voltage IP67 Dimmable Domus
Domus 100W 24V DC constant voltage LED driver, IP67, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DRIVER-24V-IP67-DIM, 24V Constant Voltage LED Driver, Outdoor Dimmable LED Power Supply
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 100W
- Output Current: 4.2A
- Dimming Method: Triac dimmable with suitable dimmers
- Ingress Protection: IP67
- Efficiency: Up to 89%; power factor greater than 0.95
- Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
- Cable and Plug: Supplied with 1 metre flex and plug
- Wiring: Suitable for parallel wiring
- Operating Temperature: -30°C to +45°C
- Operating Humidity: 5–95% RH
- Variant ID: 20238
- Dimensions (H x L x W): 32mm x 180mm x 44mm
- Weight: 0.616 kg
Key Features
- Designed for 24V constant-voltage LED strip lighting and fittings
- Triac dimmable when paired with a compatible dimmer
- IP67-rated housing for suitable outdoor applications
- Includes short-circuit, thermal overload, over-temperature and over-voltage protection
- Suitable for LED strip lighting, inground uplighters and garden spike lighting
- Supplied with 1 metre flex and plug
Professional Installation Requirements
- Installation and connection to 240V AC mains should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Confirm compatibility between the driver and the selected Triac dimmer before installation.
Applications
- 24V LED strip lighting
- Outdoor LED strip and feature lighting
- Inground uplighters
- Garden spike lighting
- Outdoor architectural and landscape lighting
- 24V constant-voltage LED fittings
Standards & Compliance
- AS/NZS 61347.2.13: applicable safety standard for electronic controlgear for LED light sources; verify product-specific certification and RCM documentation
- AS/NZS 3000: applicable requirements for electrical installation and connection to mains supply
Environmental Benefits
- Supports efficient LED lighting systems with up to 89% driver efficiency
- IP67 construction and built-in protection features can support longer service life and reduce replacement waste
- Suitable for 24V LED systems, which can reduce current and associated cable losses compared with equivalent 12V systems
Warranty Information
5-year replacement warranty for the IP67 power-supply range, subject to Domus Lighting warranty terms and installation requirements. Domus states that warranty claims require installation by a licensed electrician. ([domuslighting.com.au](https://www.domuslighting.com.au/product/driver-ip67-dim/?utm_source=openai))
Available Now
Available through Domus Lighting and authorised Australian lighting retailers and electrical wholesalers. ([domuslighting.com.au](https://www.domuslighting.com.au/resources/?utm_source=openai))
