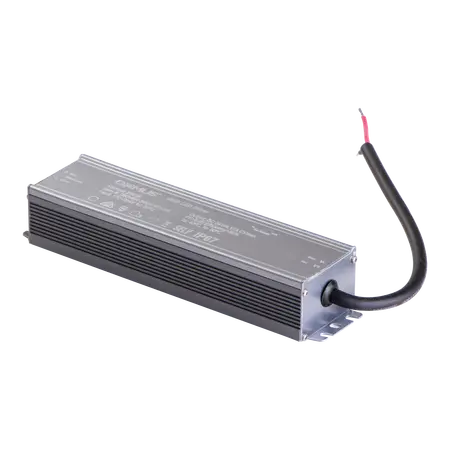

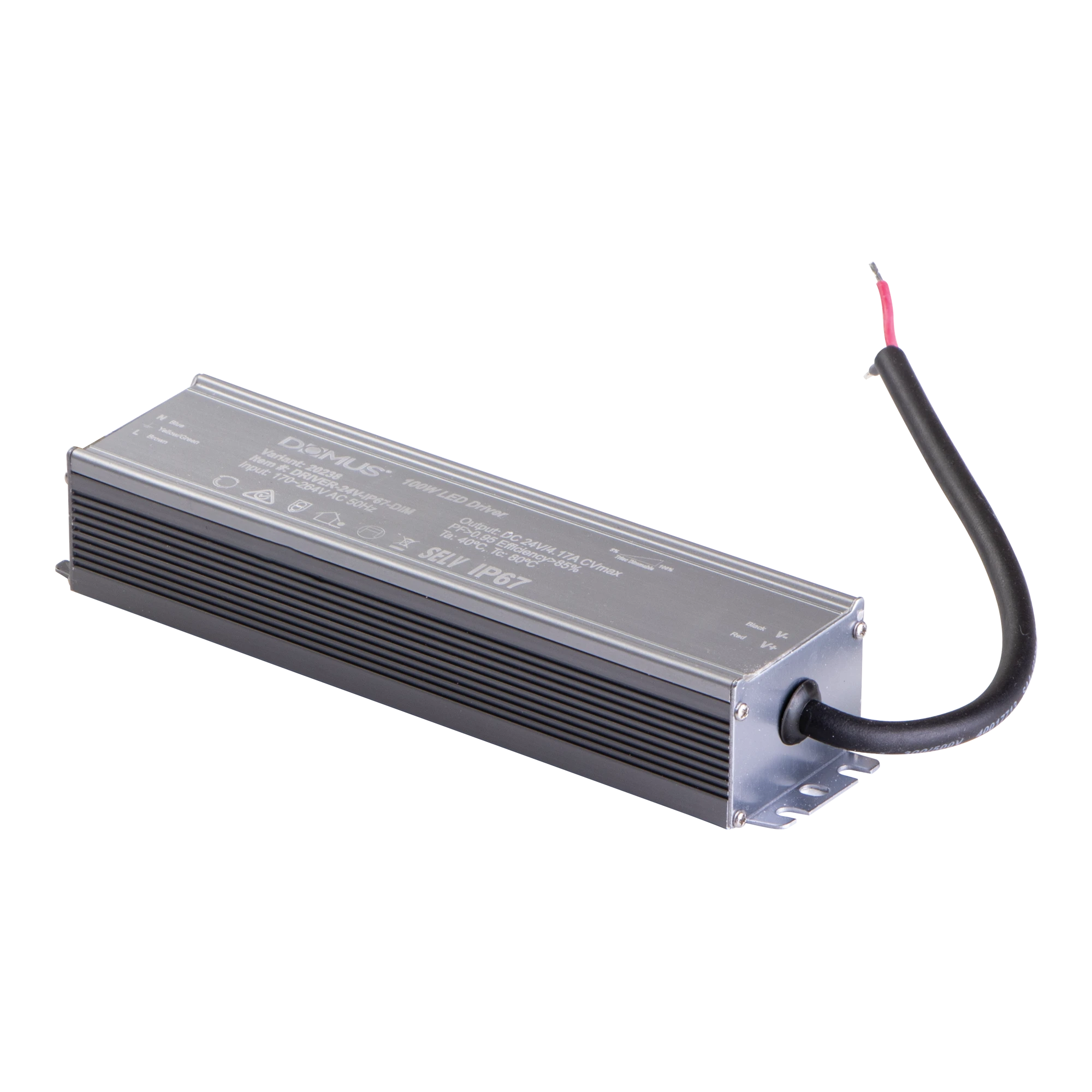

LED Driver 100W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 100W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Outdoor LED Power Supply, IP67 LED Driver, Non-Dimmable LED Driver
Technical Specifications
- Model: DRIVER-24V-IP67
- Variant/SKU: 20227
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Power: 100W
- Output Current: 4.17A
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1 m flex and plug
- Wiring: Parallel wiring supported
- Dimensions (H x L x W): 39mm x 186mm x 68mm
- Weight: 0.8 kg
Key Features
- Provides stable 24V DC constant-voltage output for compatible LED strip and fittings
- IP67-rated enclosure for outdoor applications
- Non-dimmable design
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1 m flex and plug
- Suitable for LED strip lighting, inground uplighters and garden spike lighting
Professional Installation Requirements
- Mains-voltage connection should be completed by a licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. Ensure the driver is installed in an accessible location and that all cable entries and connections maintain the required IP protection.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor LED lighting systems
- Inground uplighters
- Garden spike lighting
- Residential, commercial and landscape lighting installations
Standards & Compliance
- AS/NZS 61347.1 and AS/NZS 61347.2.13 are the applicable Australian/New Zealand safety standards for LED controlgear; product-specific certification or declaration was not located in the available manufacturer documentation.
- AS/NZS 3000 applies to the installation and connection of the 240V AC supply
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- IP67 construction and protective circuitry can support longer service life and reduce premature replacement waste
- Supports efficient low-voltage LED lighting systems
Warranty Information
5-year replacement warranty, as stated for the Domus DRIVER-24V-IP67 series. Warranty claims are subject to Domus Lighting’s warranty terms and conditions.
Available Now
Available through Domus Lighting’s authorised Australian distributors, electrical wholesalers and lighting retailers.
