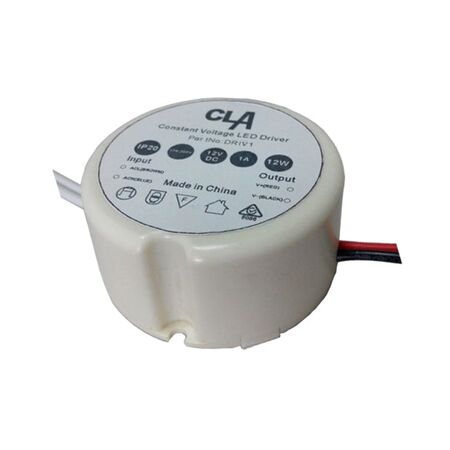

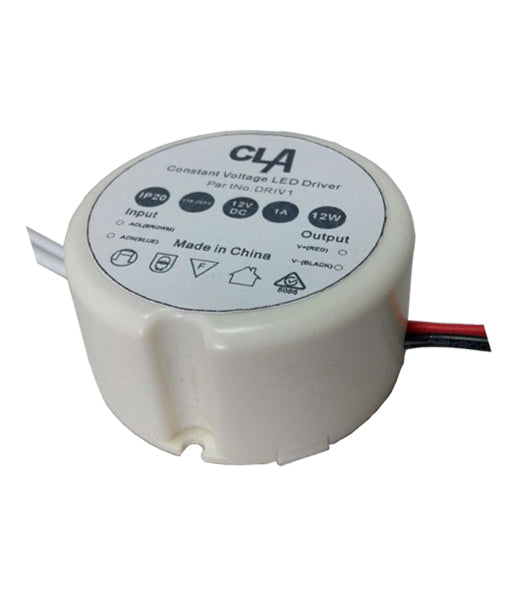

LED Driver 12V DC 1-12W Round IP20 CLA Lighting

BRAND: CLA Lighting
SKU: DRIV1
$33.80 List price: $45.00
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting LED driver features 12V DC constant voltage output, 1.2-9.6W load range and an IP20 round case. Ideal for indoor LED strip and lighting.

Alternatively Known As: -

Technical Specifications
  • Voltage Output: 12V DC
  • Power Output Range: 1-12W
  • Rated Voltage: 240V AC 50/60Hz
  • Short Circuit Protection: Yes
  • Ambient Temperature: -10 to 40°C

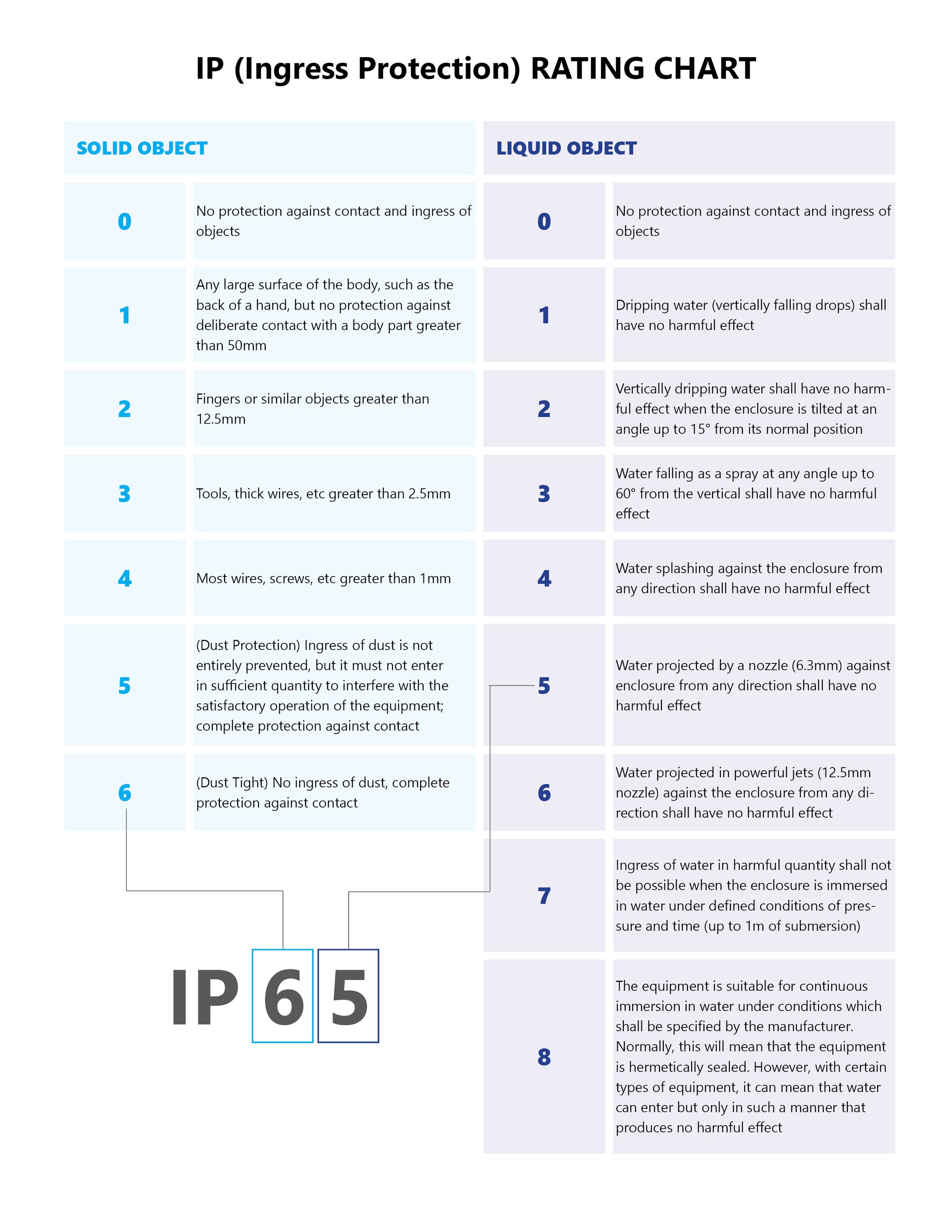

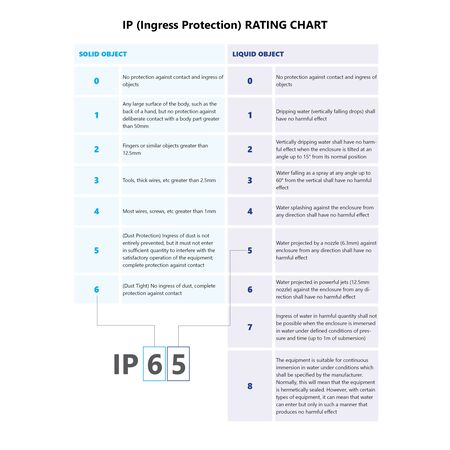

  • IP Rating: IP20
  • Maximum Distance to Light Source: 2m
  • Dimensions (H x L x W): 20mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • 12V DC constant voltage output
  • Supports 1-12W load range
  • Short circuit protected
  • Designed for indoor use
  • IP20 rated for dry environments
Applications
  • Indoor LED strip lighting
  • Low power indoor LED lights
Environmental Benefits
  • Energy-efficient power delivery for LED lighting
  • Extended lifecycle of LEDs by providing stable power
Warranty Information

2 year warranty

Available Now

Available through Aspen Pumps and authorised Australian distributors.
