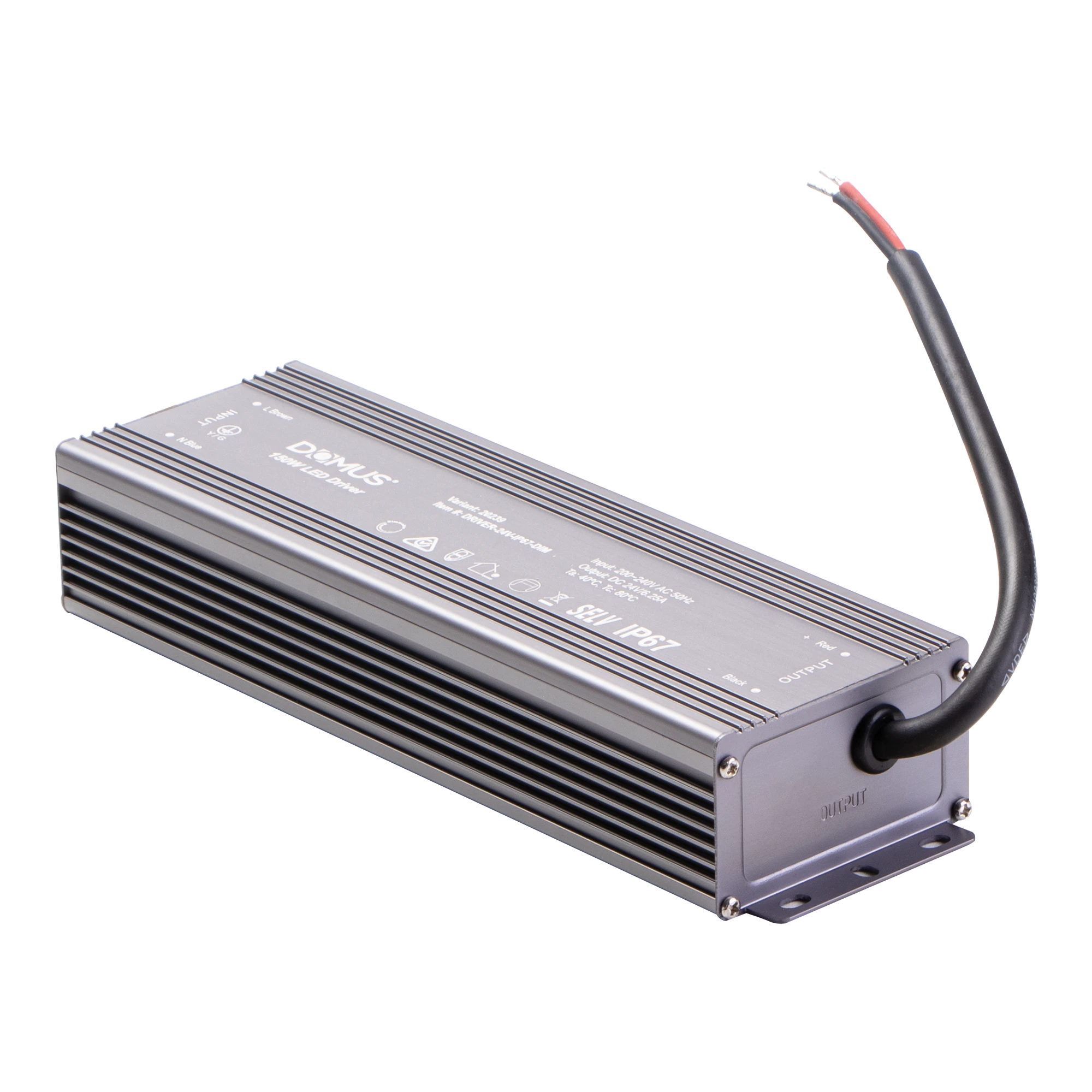

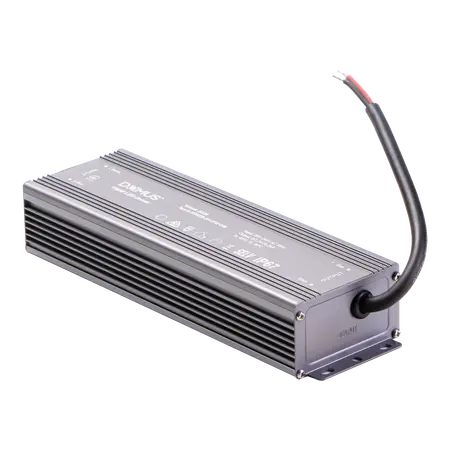

LED Driver 150W 24V DC Constant Voltage IP67 Dimmable Domus
Domus 150W 24V DC constant voltage LED driver, IP67, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Triac Dimmable LED Driver, Outdoor LED Power Supply, LED Strip Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Output Current: 6.25A
- Rated Power: 150W
- Dimming: Triac dimmable with compatible dimmers
- Ingress Protection: IP67
- Protection Functions: Short circuit, thermal overload, over-temperature and over-voltage protection
- Flicker Free: Yes
- Power Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Operating Temperature: -30°C to +45°C
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Dimensions (H x L x W): 39mm x 196mm x 68mm
- Weight: 1.2 kg
Key Features
- Provides regulated 24V DC output for constant-voltage LED strips and fittings
- 150W capacity with 6.25A output current
- Triac dimmable when paired with a compatible dimmer
- IP67-rated enclosure for outdoor and weather-exposed installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Flicker-free operation
- Suitable for LED strips, inground uplighters, garden spike lights and landscape lighting
- Supplied with 1m flex and plug
Professional Installation Requirements
- Installation and connection to 240V AC mains must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm compatibility between the driver and the selected Triac dimmer before installation.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor landscape lighting
- Inground uplighters
- Garden spike lighting
- Weather-exposed LED fittings
- Residential and commercial decorative lighting installations
Standards & Compliance
- AS/NZS 61347.2.13: Applicable safety standard for LED controlgear and light-emitting semiconductor drivers
- AS/NZS 3000: Applicable requirements for electrical installation and connection of associated controlgear
Environmental Benefits
- Constant-voltage operation supports efficient LED lighting systems
- Dimming capability can reduce energy consumption when full output is not required
- IP67 protection and built-in safeguards can extend service life and reduce premature electronic waste
- Suitable for long-life LED strip and fitting installations, reducing replacement frequency
Warranty Information
5-year replacement warranty for the IP67 power supply range, subject to Domus Lighting warranty conditions. Residential and commercial warranty terms may differ, and installation by a licensed electrician is required for warranty coverage.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
