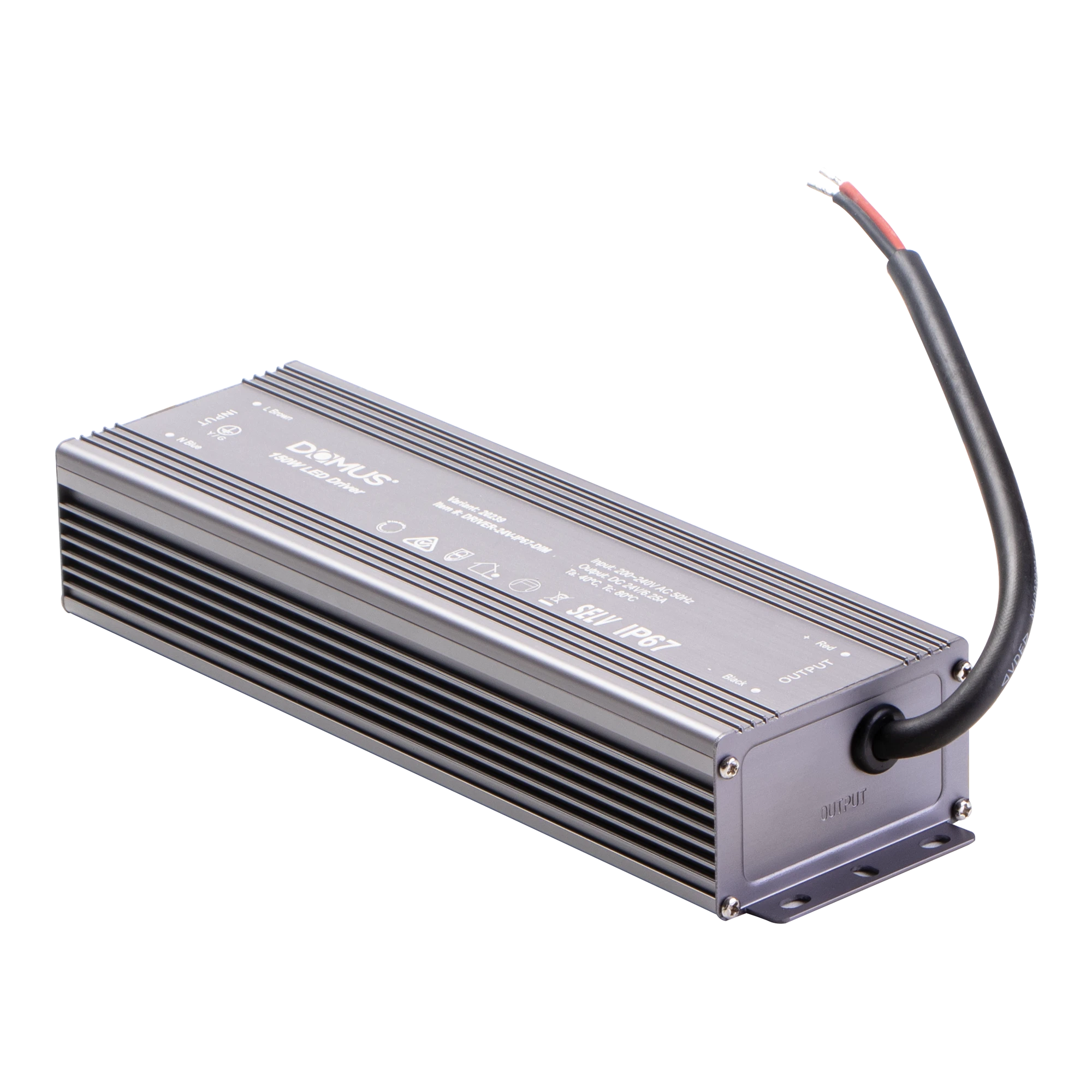

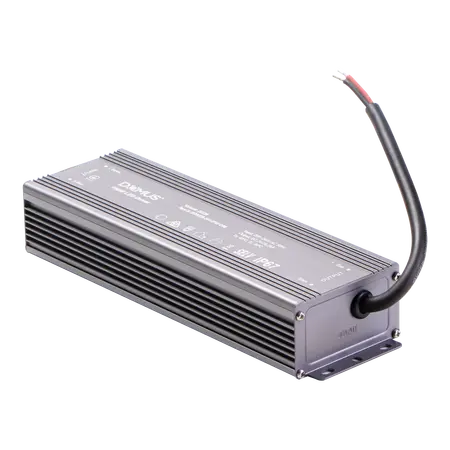

LED Driver 150W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 150W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Driver, Outdoor LED Power Supply, IP67 LED Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 150W
- Output Current: 6.25A
- Dimming: Non-dimmable
- IP Rating: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring
- Variant: 150W, product variant 20228
- Dimensions (H x L x W): 39mm x 196mm x 68mm
- Weight: 1.2 kg
Key Features
- Constant-voltage 24V DC output for compatible LED strip and fittings
- IP67-rated enclosure for suitable outdoor applications
- Non-dimmable design
- Secondary-side short-circuit protection
- Thermal overload and over-temperature protection
- Over-voltage protection
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- Domus datasheet states a five-year replacement warranty for the product series
Professional Installation Requirements
- Installation should be performed by a licensed electrician because the driver has a 240V AC mains input. Install and protect all mains connections, cable joints and downstream equipment in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor LED lighting installations
- Inground uplighters
- Garden spike lighting
- Outdoor architectural and landscape lighting
- Compatible 24V LED fittings requiring a 150W power supply
Standards & Compliance
- AS/NZS 3000:2018 – installation requirements for mains-connected electrical equipment; product-specific AS/NZS conformity is not stated in the published Domus datasheet.
- AS/NZS 61347.1 and AS/NZS 61347.2.13 are relevant safety standards for LED controlgear; verify the product's current RCM and conformity documentation before specification.
Environmental Benefits
- Up to 89% efficiency can reduce operating energy losses compared with less efficient power supplies
- Power factor greater than 0.95 supports efficient use of supply power
- IP67 protection and multiple internal safeguards can extend service life and reduce replacement waste
- Enables efficient 24V LED lighting systems with lower energy consumption than conventional lighting technologies
Warranty Information
Domus states a 5-year replacement warranty for IP67 power supplies for residential use and a 3-year replacement warranty for commercial use. Warranty claims require compliance with Domus conditions, including licensed-electrician installation. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/03/DRIVER-24V-IP67-Data-Sheets.pdf?utm_source=openai))
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors. ([domuslighting.com.au](https://www.domuslighting.com.au/product-category/indoor-drivers/?utm_source=openai))
