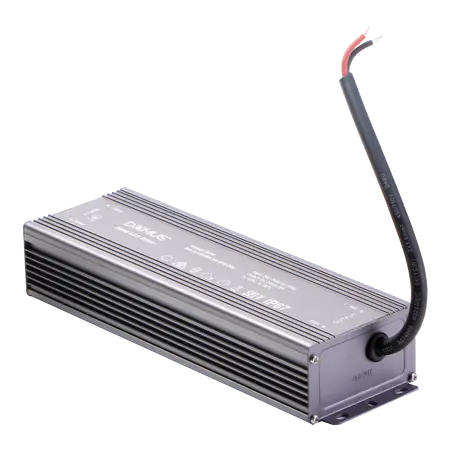

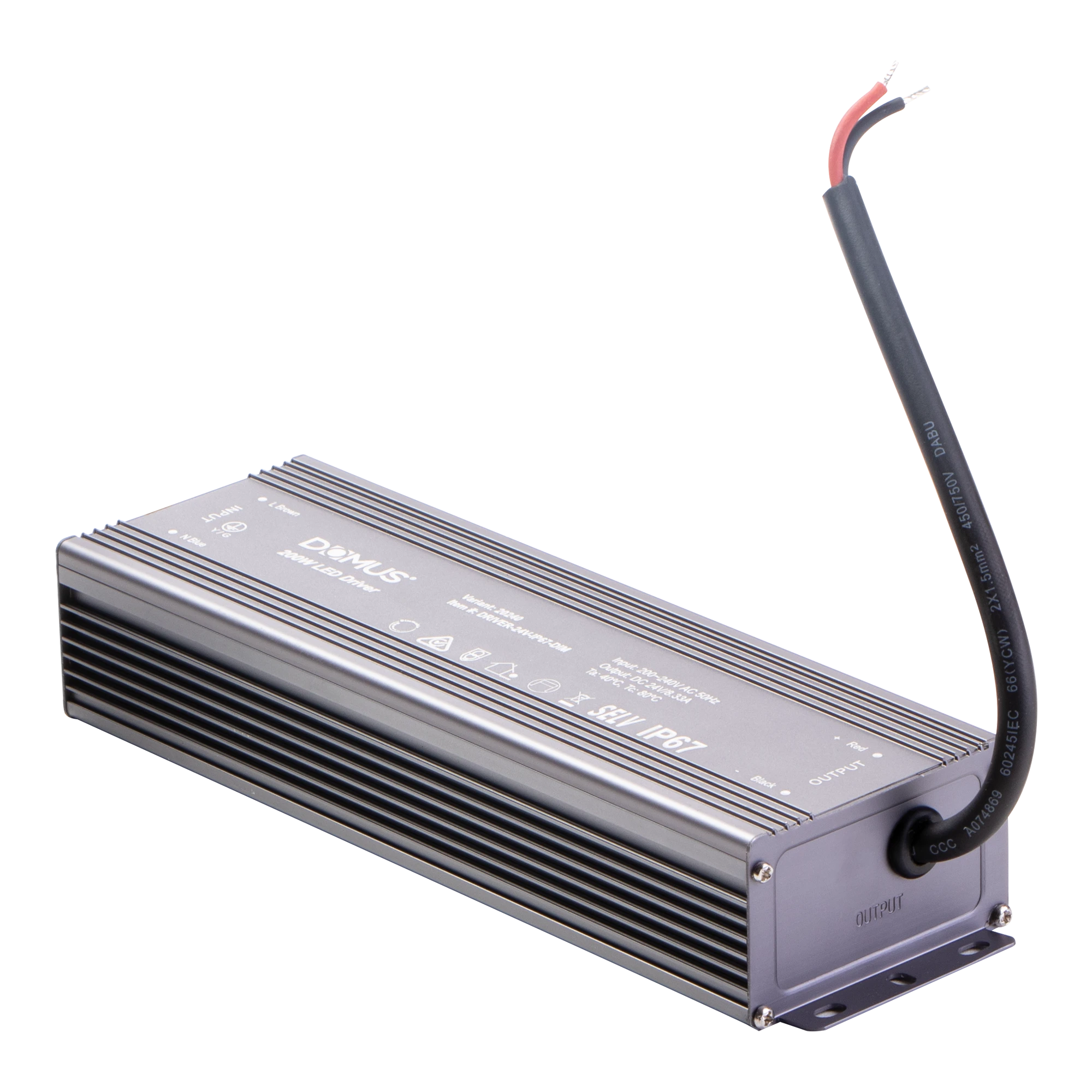

LED Driver 200W 12V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 200W 12V DC constant voltage LED driver, IP67, non-dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus 200W LED Driver, 12V DC Constant-Voltage Power Supply, IP67 Outdoor LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 200W
- Output Current: 16.7A
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Suitable for parallel wiring
- Supply Lead: Supplied with 1m flex and plug
- Dimensions (H x L x W): 39mm x 236mm x 68mm
- Weight: 1.4 kg
Key Features
- Designed for 12V constant-voltage LED strip lighting and fittings
- IP67-rated housing for suitable outdoor applications
- Non-dimmable operation
- Up to 89% efficiency and power factor above 0.95
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Suitable for LED strip lighting, inground uplighters and garden spike lighting
- Backed by Domus warranty coverage for IP67 power supplies
Professional Installation Requirements
- The 240V AC mains connection and installation must be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Ensure the driver is installed in a location suitable for its IP67 rating and that the connected LED load is compatible with 12V constant-voltage output.
Applications
- 12V outdoor LED strip lighting
- Inground LED uplighters
- Garden spike lighting
- 12V constant-voltage LED fittings
- Residential and commercial exterior lighting systems
Standards & Compliance
- Relevant product standard: AS/NZS 61347.2.13 for LED controlgear, used in conjunction with AS/NZS 61347.1
- Installation should comply with AS/NZS 3000 wiring requirements
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during AC-to-DC conversion
- IP67 construction supports longer service in suitable outdoor environments, helping reduce premature replacement waste
- Suitable for energy-efficient LED lighting systems with lower operating power than many conventional lighting technologies
Warranty Information
Domus lists IP67 power supplies as covered by a 5-year replacement warranty for residential applications and a 3-year replacement warranty for commercial applications, subject to warranty conditions, proof of purchase and licensed installation.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
