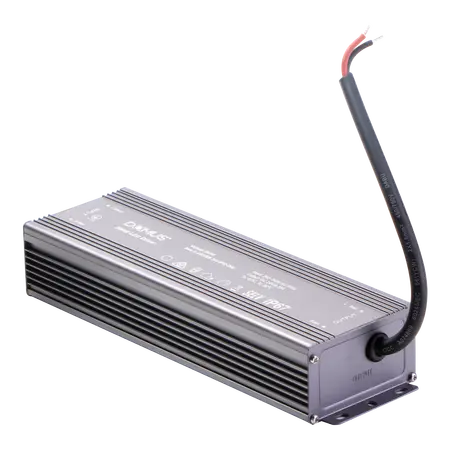

LED Driver 200W 24V DC Constant Voltage IP67 Dimmable Domus
Domus 200W 24V DC constant voltage LED driver, IP67, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Triac Dimmable LED Driver, Outdoor LED Power Supply, Weatherproof LED Strip Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 200W
- Output Current: 8.33A
- Dimming: Triac dimmable with compatible dimmers
- IP Rating: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1m flex and plug
- Wiring: Suitable for parallel wiring
- Dimensions (H x L x W): 39mm x 236mm x 68mm
- Weight: 1.4 kg
Key Features
- Provides regulated 24V DC constant-voltage output for compatible LED strip lighting and fittings
- Supports Triac dimming when paired with a suitable dimmer
- IP67-rated housing for outdoor and weather-exposed applications
- Includes secondary-side short-circuit protection
- Includes thermal overload and over-temperature protection
- Includes over-voltage protection
- Suitable for garden lighting, inground uplighters and other outdoor LED installations
Professional Installation Requirements
- Connection to 240V AC mains or any fixed wiring must be performed by a licensed electrician in accordance with AS/NZS 3000. Confirm dimmer compatibility and provide accessible mounting for servicing.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor architectural and accent lighting
- Garden spike lighting
- Inground uplighters
- Outdoor signage and display lighting
- Residential, commercial and landscape lighting installations
Standards & Compliance
- Relevant LED controlgear safety standard: AS 61347.2.13:2018
- Electrical installation and mains connection should comply with AS/NZS 3000
- Product-specific certification details were not stated on the manufacturer's product page
Environmental Benefits
- Constant-voltage operation supports efficient LED lighting systems with power-factor performance greater than 0.95
- IP67 protection helps extend service life in outdoor environments and can reduce premature replacement waste
- Suitable for long-life LED strip and fitting installations, reducing ongoing component consumption
Warranty Information
5-year replacement warranty for residential use and 3-year replacement warranty for commercial use for IP67 power supplies, according to Domus Lighting's warranty statement.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
