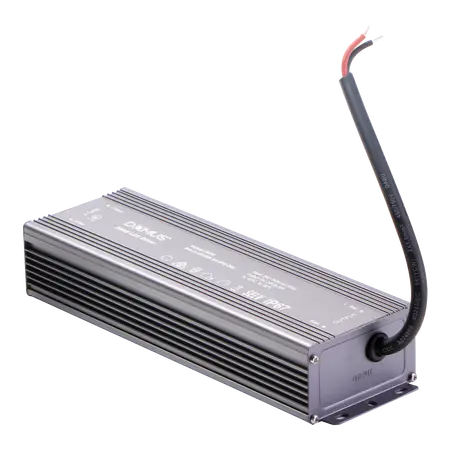

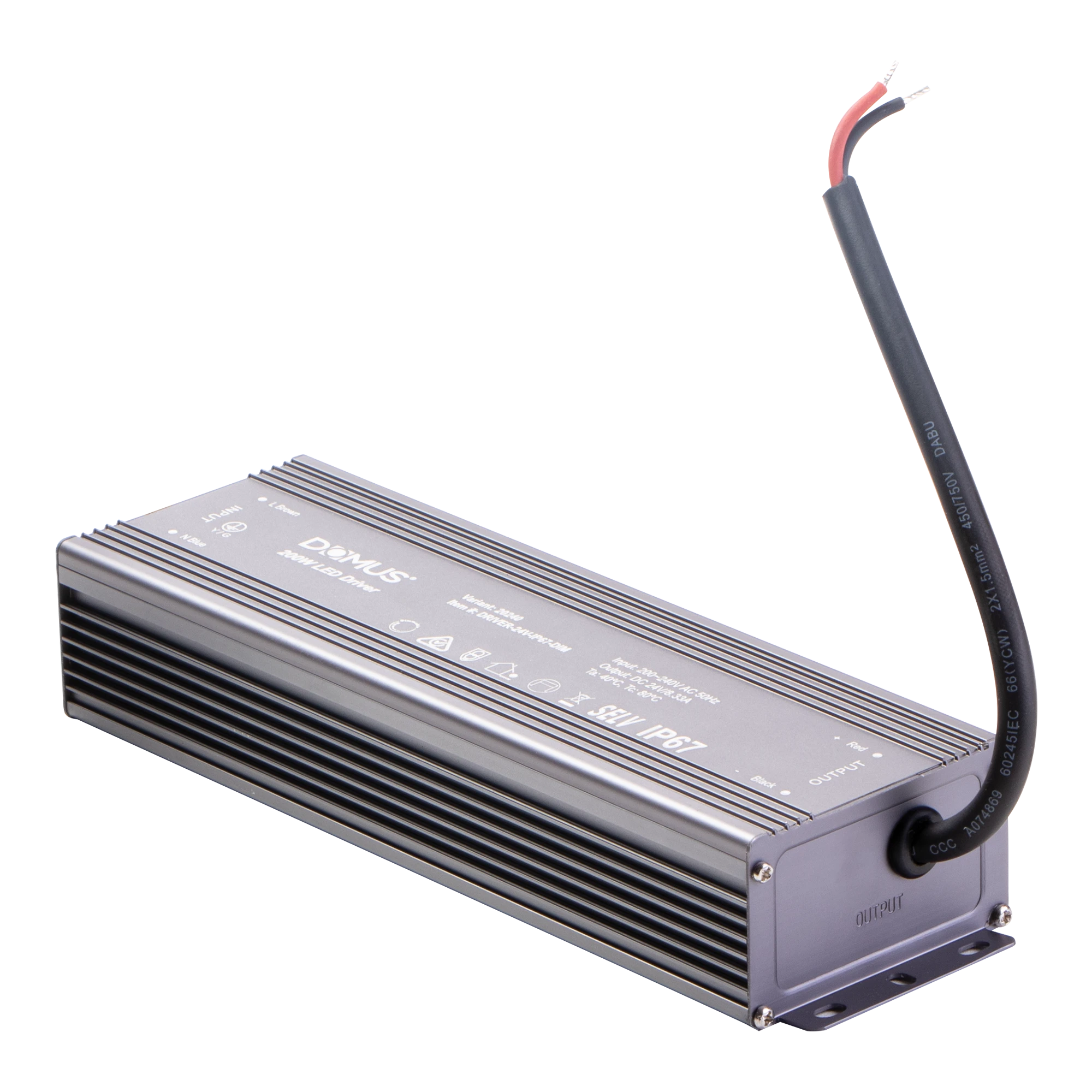

LED Driver 200W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 200W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Driver, 24V Constant Voltage Power Supply, Outdoor LED Strip Driver, Domus DRIVER-24V-IP67
Technical Specifications
- Model Series: DRIVER-24V-IP67
- Domus Item Number: 20229
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Output Current: 8.33A
- Rated Power: 200W
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Wiring: Parallel wiring supported
- Mains Connection: Supplied with 1m flex and plug
- Dimensions (H x L x W): 39mm x 236mm x 68mm
- Weight: 1.4 kg
Key Features
- Designed for 24V constant-voltage LED strip lighting and fittings
- IP67-rated enclosure for suitable outdoor applications
- Secondary-side short-circuit protection
- Thermal overload and over-temperature protection
- Over-voltage protection
- Non-dimmable operation
- Suitable for parallel wiring
- Supplied with 1m flex and plug
Professional Installation Requirements
- The 240V AC mains connection should be installed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Ensure the connected LED load is compatible with 24V DC constant-voltage output and does not exceed 200W.
Applications
- 24V LED strip lighting
- Outdoor LED lighting installations
- In-ground uplighters
- Garden spike lighting
- Outdoor LED fittings and landscape lighting
- Commercial and residential low-voltage lighting systems
Standards & Compliance
- AS/NZS 61347.2.13: Applicable safety standard for light-emitting semiconductor LED controlgear
- AS/NZS 61347.1: Applicable general safety requirements for lamp controlgear
- AS/NZS 3000: Applicable requirements for connection to Australian electrical installations
Environmental Benefits
- Up to 89% efficiency can reduce electrical losses during operation
- IP67 construction and protective functions can help extend service life and reduce replacement waste
- Suitable for efficient 24V LED lighting systems, including LED strip and outdoor fittings
Warranty Information
5-year replacement warranty for residential applications and 3-year replacement warranty for commercial applications, subject to Domus warranty conditions, licensed installation and proof of purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
