Trade Discount 25%

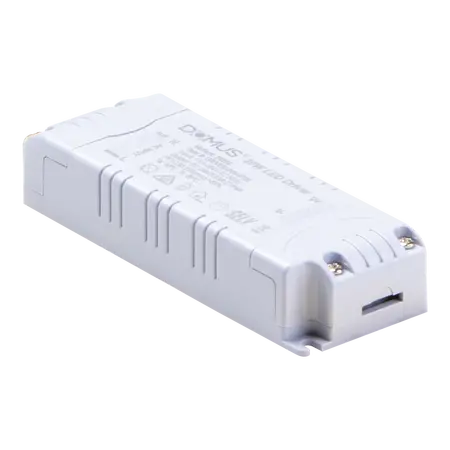

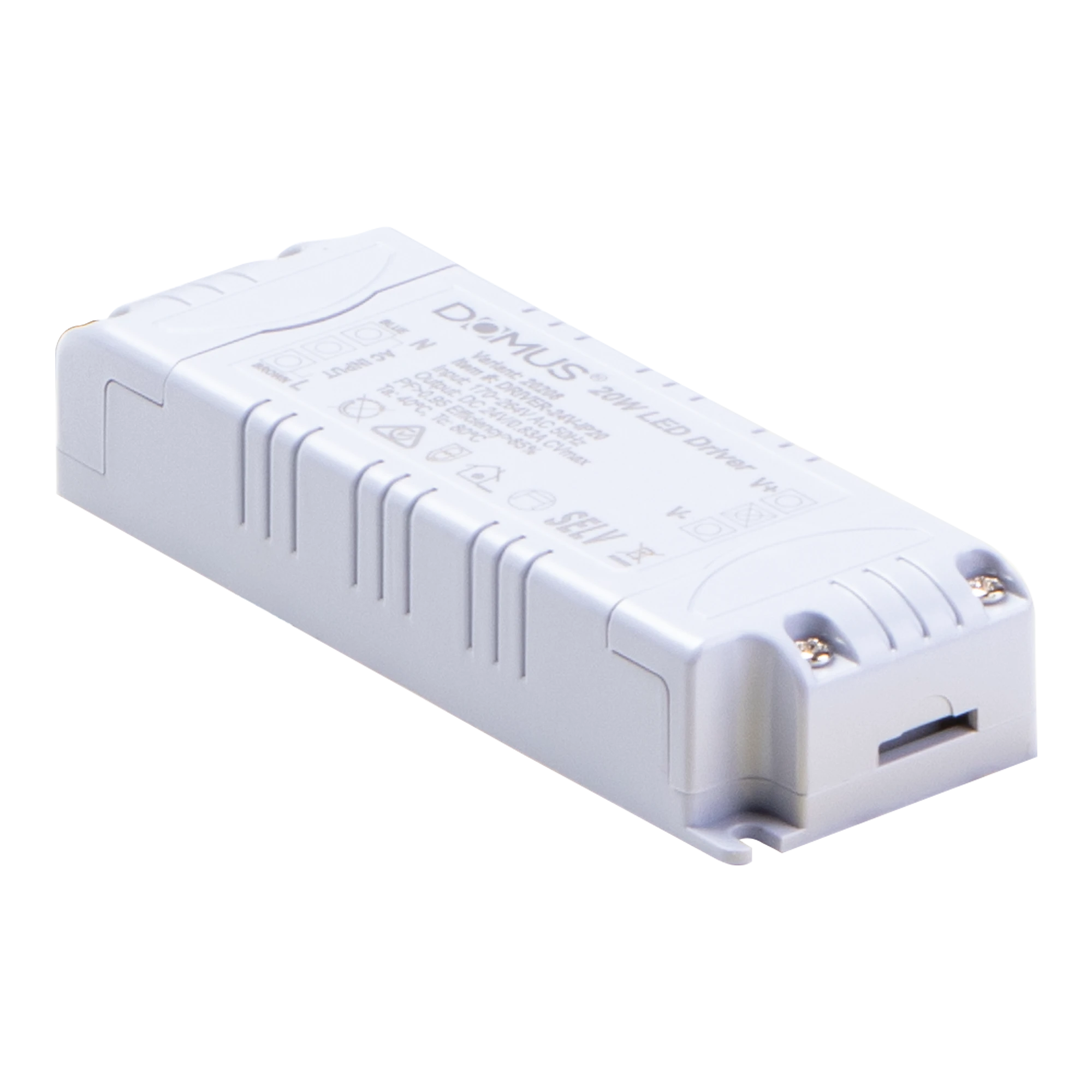

LED Driver 20W 12V DC Constant Voltage IP20 Non-Dimmable Domus
Domus 20W 12V DC constant voltage LED driver, IP20, non-dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Constant Voltage LED Power Supply, LED Strip Driver, Indoor LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Output Current: 1.67A
- Rated Power: 20W
- Dimming: Non-dimmable
- Ingress Protection: IP20
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1 m flex and plug
- Wiring: Suitable for parallel wiring
- Operating Environment: Indoor use only
- Flicker Performance: Flicker-free when installed less than 2 m from the light source
- Variant Code: 23171
- Dimensions (H x L x W): 18mm x 100mm x 36mm
- Weight: 0.1 kg
Key Features
- Provides regulated 12V DC constant-voltage output for compatible LED strip lighting and fittings
- Suitable for indoor LED strip lighting, inground uplighters and garden spike lighting
- Non-dimmable design
- IP20-rated enclosure for dry indoor locations
- Integrated short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1 m flex and plug
- Up to 89% efficiency with power factor greater than 0.95
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- The driver connects to 240V AC mains via the supplied plug. Use only in accordance with the manufacturer's instructions and connect compatible 12V constant-voltage LED products within the 20W rating. Any fixed-wiring work or alteration to the mains supply should be performed by a licensed electrician.
Applications
- 12V constant-voltage LED strip lighting
- Indoor cabinet and joinery lighting
- Inground uplighter systems installed in suitable dry locations
- Garden spike lighting systems where the driver is installed indoors or in a protected dry location
- Other compatible 12V DC constant-voltage LED fittings
Standards & Compliance
- Applicable LED controlgear safety standards include AS/NZS 61347.1 and AS/NZS 61347.2.13; product-specific certification is not stated in the available Domus datasheet
- Supply plug requirements are covered by AS/NZS 3112 where applicable
Environmental Benefits
- Up to 89% electrical efficiency helps reduce operating energy losses
- Power factor greater than 0.95 supports efficient use of supplied electrical power
- Protection features can help extend service life and reduce premature replacement waste
- Designed to operate compatible LED lighting systems, which generally use less energy than conventional lighting technologies
Warranty Information
5-year replacement warranty as stated on the Domus product datasheet, subject to Domus warranty terms, installation conditions and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
