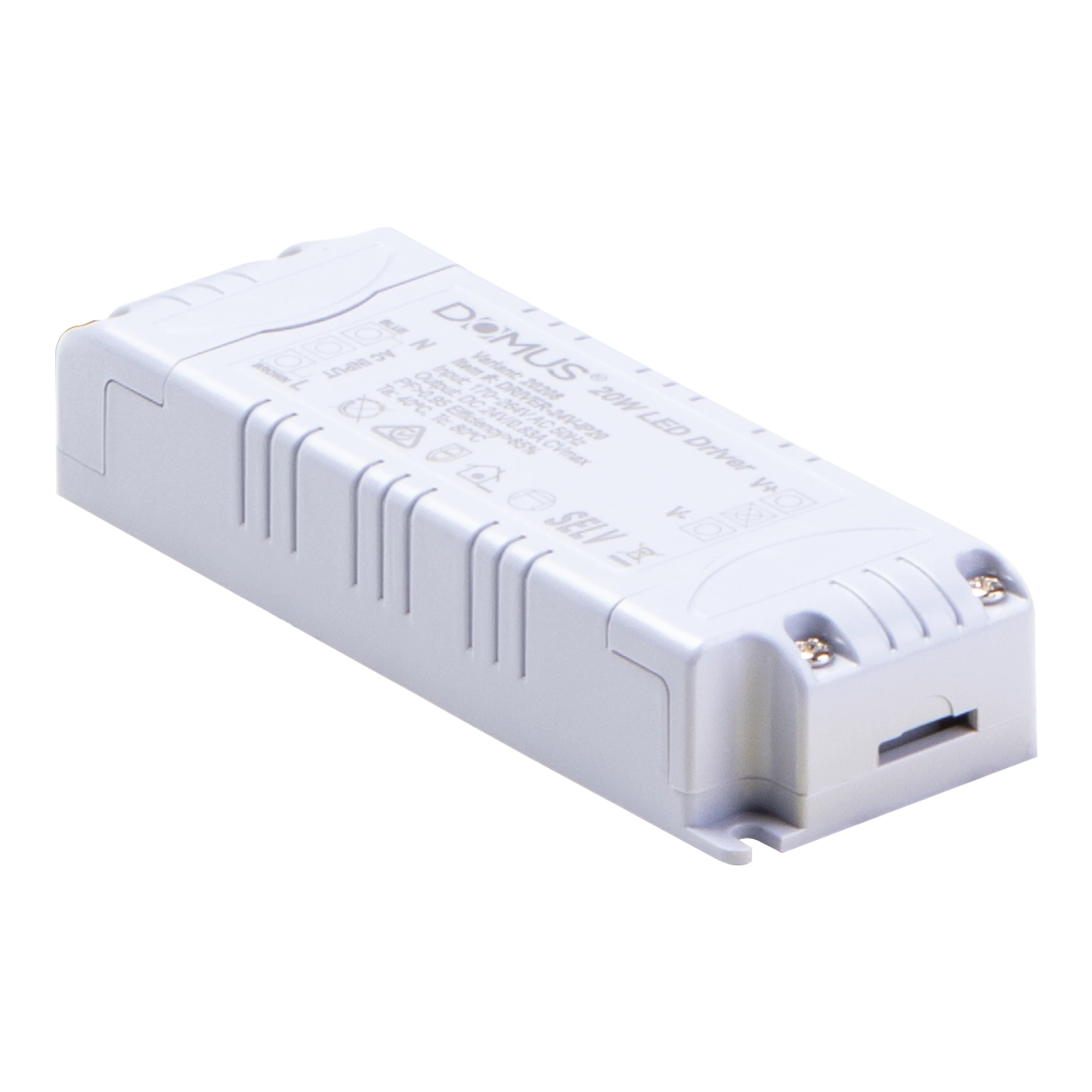

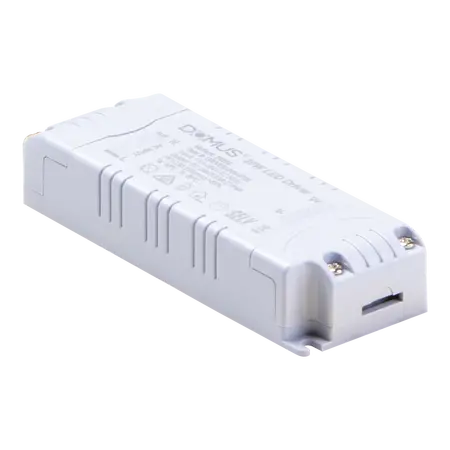

LED Driver 20W 24V DC Constant Voltage IP20 Non-Dimmable Domus

BRAND: Domus Lighting
SKU: 20208
$33.60 List price: $44.80
+ −
30 Days Return Electricians Unlock Trade Access
Domus 20W 24V DC constant voltage LED driver, IP20, non-dimmable, suits 24V constant voltage LED strip and fittings.

Alternatively Known As: 24V Constant Voltage LED Driver, 24V LED Strip Driver, Non-Dimmable LED Power Supply

Technical Specifications
  • Model: DRIVER-24V-IP20
  • Variant: 20208
  • Input Voltage: 240V AC
  • Rated Power: 20W
  • Output Voltage: 24V DC
  • Output Current: 0.83A
  • Dimming: Non-dimmable
  • Ingress Protection: IP20
  • Efficiency: Up to 89%
  • Power Factor: Greater than 0.95
  • Wiring: Parallel
  • Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
  • Cable and Plug: Supplied with 1 m flex and plug
  • Application Environment: Indoor use only
  • Dimensions (H x L x W): 18mm x 100mm x 36mm
  • Weight: 0.1 kg
Key Features
  • Constant-voltage 24V DC output for compatible LED strip and fittings
  • 20W output capacity with 0.83A maximum output current
  • Non-dimmable design for straightforward on/off LED installations
  • IP20 enclosure for dry indoor locations
  • Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
  • Supplied with 1 m flex and plug
  • Suitable for parallel wiring of compatible 24V LED loads
Professional Installation Requirements
  • The 240V AC connection and installation should be completed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Use only with compatible 24V constant-voltage LED products and install in a dry indoor location.
Applications
  • Indoor 24V LED strip lighting
  • Indoor 24V constant-voltage LED fittings
  • Cabinet, joinery and display lighting
  • Decorative and architectural LED lighting installations
Standards & Compliance
  • AS/NZS 61347.1: applicable safety framework for lamp controlgear and LED drivers; confirm the manufacturer's declaration of conformity for the specific variant
  • AS/NZS 3000: applicable requirements for the fixed electrical installation and 240V AC connection
  • AS/NZS 3112: relevant to the Australian plug and socket configuration where supplied with an Australian plug
Environmental Benefits
  • Up to 89% efficiency can reduce operating energy losses compared with less efficient power supplies
  • Constant-voltage operation supports efficient 24V LED strip and fitting installations
  • Protective circuitry can help extend service life and reduce premature electronic waste
  • Compact construction reduces material use and packaging volume compared with larger power supplies
Warranty Information

The Domus product page states a 5-year replacement warranty for the DRIVER-IP20 series. Domus' current general warranty statement lists LED power supplies and controllers as covered for 3 years in residential applications and 12 months in commercial applications; confirm the applicable term at purchase. Warranty eligibility requires installation by a licensed electrician and other stated conditions.

Available Now

Available through Domus Lighting and authorised Australian lighting retailers and electrical wholesalers.
