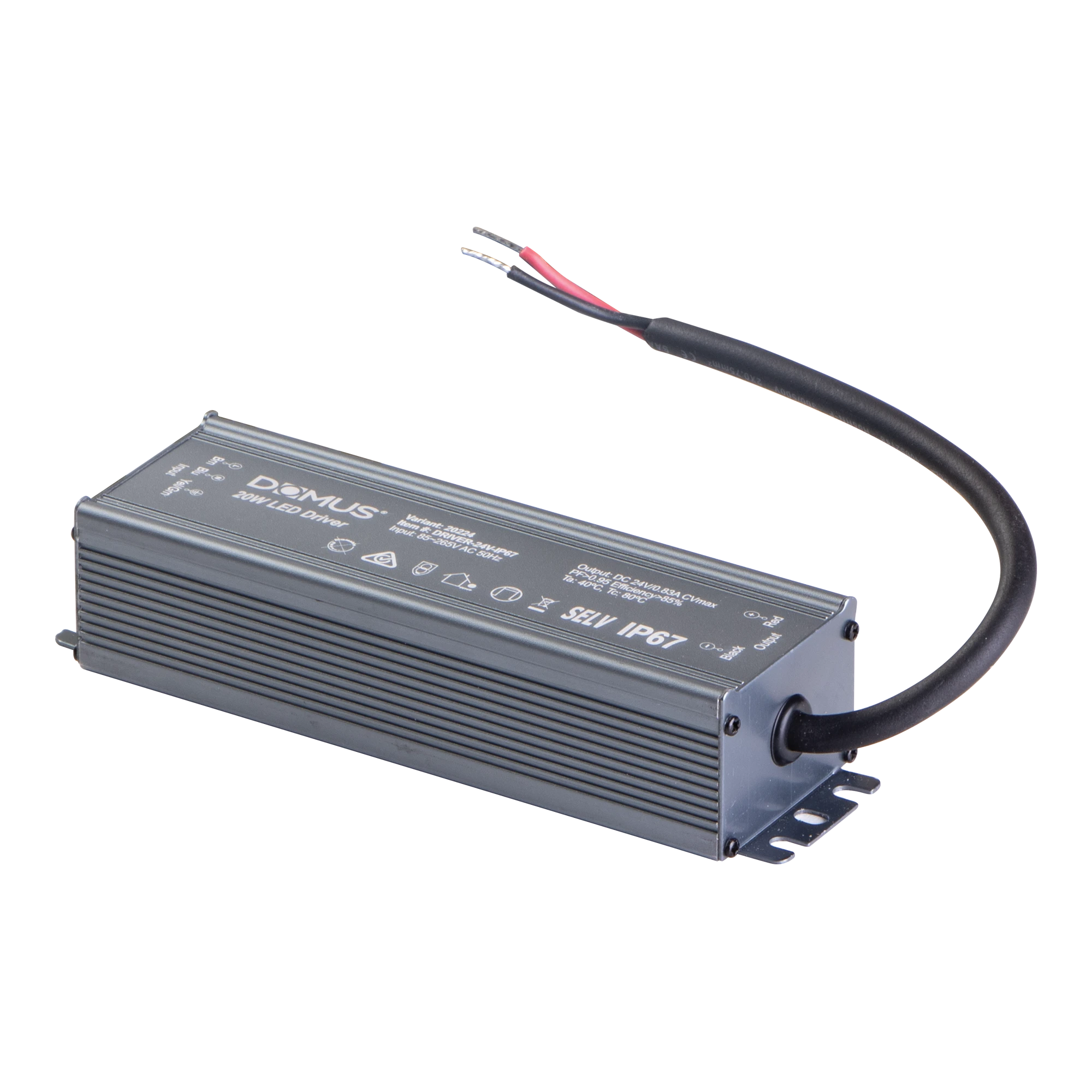

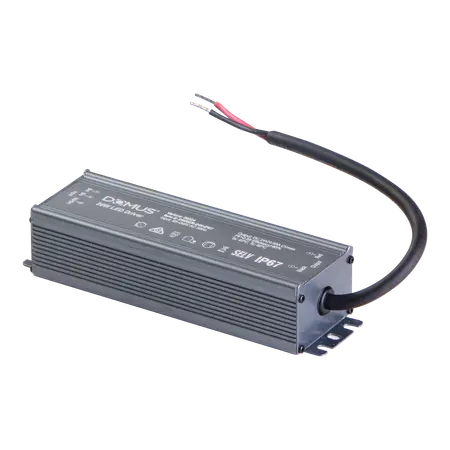

LED Driver 20W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 20W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus DRIVER-24V-IP67 20W LED Driver, 24V LED Strip Power Supply, Outdoor Weatherproof LED Driver
Technical Specifications
- Item Number: 20224
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 20W
- Output Current: 0.87A
- Driver Type: Constant voltage
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Flicker Free: Yes
- Working Temperature: -40°C to +60°C
- Working Humidity: 20–90% RH, non-condensing
- Cable and Plug: Supplied with 1m flex and plug
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring configuration
- Dimensions (H x L x W): 32mm x 150mm x 44mm
- Weight: 0.24 kg
Key Features
- 24V DC constant voltage output for compatible LED strip and fittings
- 20W capacity with 0.87A maximum output current
- IP67-rated housing for outdoor and wet-area installations
- Non-dimmable operation
- Flicker-free output
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- Manufacturer datasheet dated 10 January 2025
Professional Installation Requirements
- The 240V AC input must be connected by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical requirements. Outdoor installation must maintain the manufacturer's IP67 protection and use suitable connections and cable entry methods. Domus warranty claims require installation by a licensed electrician. ([domuslighting.com.au](https://www.domuslighting.com.au/warranty-claim-form/?utm_source=openai))
Applications
- 24V constant voltage LED strip lighting
- Outdoor and landscape lighting
- Inground LED uplighters
- Garden spike lighting
- External architectural and decorative lighting
- Wet-area LED lighting installations
Standards & Compliance
- AS/NZS 61347.1:2016: Relevant general safety standard for lamp controlgear.
- AS 61347.2.13:2018: Relevant particular safety standard for electronic controlgear associated with LED modules, including constant-voltage controlgear. Domus does not publish a product-specific conformity declaration in the available datasheet. ([intertekinform.com](https://www.intertekinform.com/en-au/standards/as-61347-2-13-2018-1131502_saig_as_as_2626152/?utm_source=openai))
- AS/NZS 3000:2018: Applicable to the 240V AC electrical installation and connection, rather than a product certification claim. ([legislation.nsw.gov.au](https://legislation.nsw.gov.au/view/whole/pdf/inforce/2025-10-04/sl-2018-0501?utm_source=openai))
Environmental Benefits
- Up to 89% efficiency and power factor greater than 0.95 can reduce input energy losses during operation
- IP67 protection and built-in electrical safeguards can support longer service life and reduce premature replacement waste
- Suitable for efficient LED lighting systems that generally use less energy than conventional lighting technologies
Warranty Information
Domus lists a 5-year replacement warranty for IP67 power supplies in residential applications and a 3-year replacement warranty in commercial applications. Warranty coverage is subject to the applicable Domus warranty statement and licensed-electrician installation requirements. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/03/DRIVER-24V-IP67-Data-Sheets.pdf))
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers. ([domuslighting.com.au](https://www.domuslighting.com.au/product-category/outdoor-weatherproof-drivers/))
