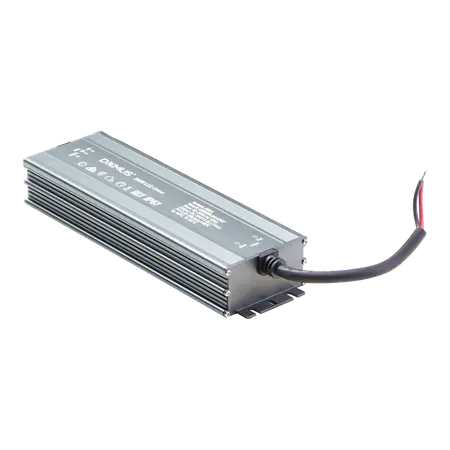

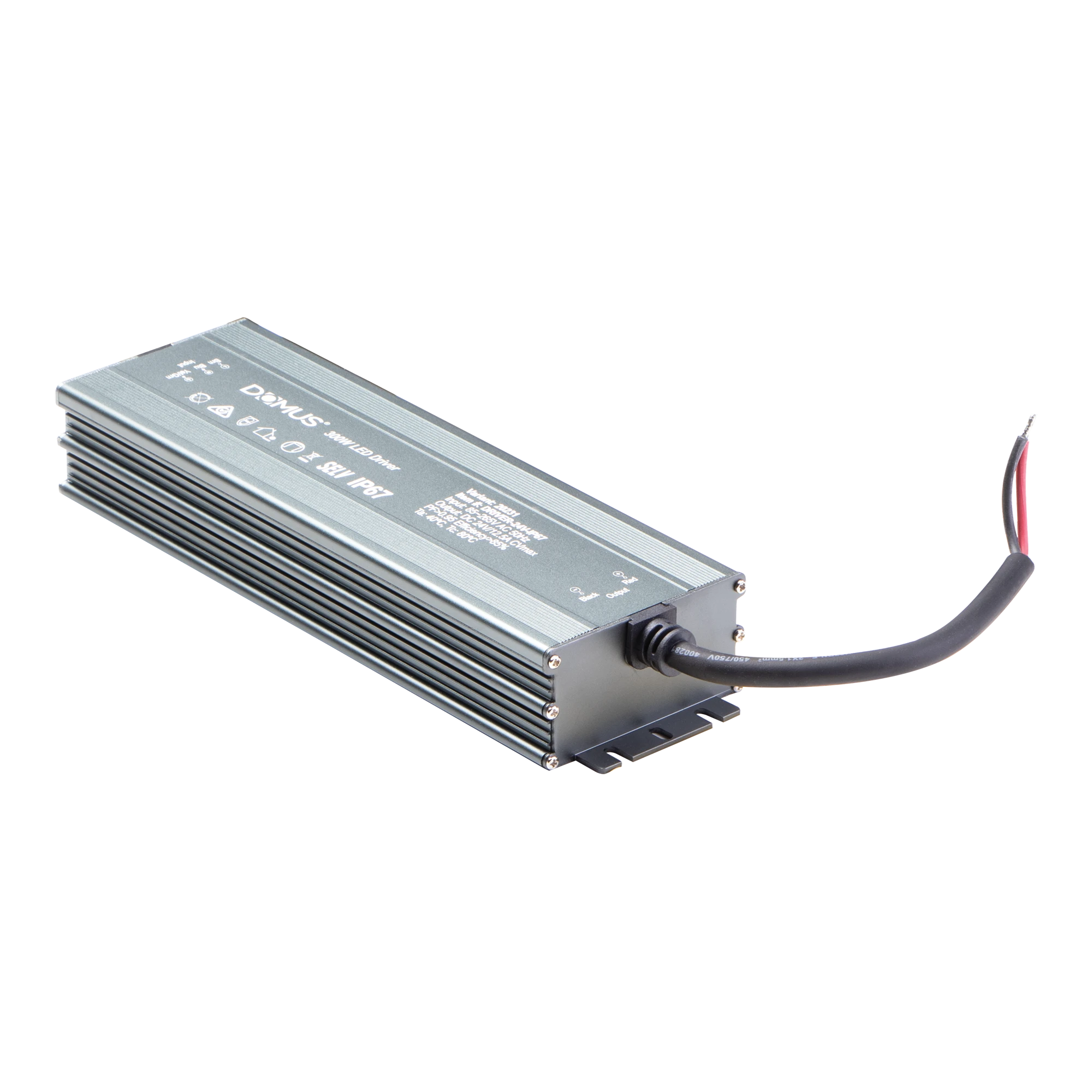

LED Driver 300W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 300W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus 300W LED Driver, 24V Constant Voltage LED Power Supply, IP67 Outdoor LED Driver, Domus Variant 20231
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Output Current: 12.5A
- Rated Power: 300W
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring
- Supplied Cable: 1 m flex and plug
- Variant: 20231
- Dimensions (H x L x W): 38mm x 244mm x 75mm
- Weight: 2.4 kg
Key Features
- Provides regulated 24V DC constant-voltage output for compatible LED strip and fittings
- 300W capacity with 12.5A maximum output current
- IP67-rated housing suitable for outdoor applications
- Non-dimmable design for straightforward fixed-output installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Up to 89% efficiency and power factor greater than 0.95
- Supplied with 1 m flex and plug
- Supports parallel wiring of compatible LED loads
Professional Installation Requirements
- Mains electrical connection must be carried out by a licensed electrician in accordance with applicable Australian wiring requirements, including AS/NZS 3000. Confirm that the connected LED load is 24V DC constant voltage and does not exceed the driver's rated capacity. Protect mains connections and cable joints to suit the installation environment.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor LED strip and linear lighting installations
- In-ground uplighters
- Garden spike lighting
- Outdoor signage and feature lighting
- Commercial and residential low-voltage lighting systems
Standards & Compliance
- Relevant product safety standard: AS 61347.2.13:2018 for electronic controlgear supplied by AC or DC and associated with LED modules; product-specific compliance is not stated in the supplied Domus datasheet
- General installation requirements: AS/NZS 3000
Environmental Benefits
- Up to 89% efficiency can reduce energy lost during AC-to-DC conversion
- Long-term use supported by thermal, overload and over-voltage protection, helping reduce premature replacement and waste
- IP67 protection supports use in exposed outdoor installations where suitable installation practices are followed
Warranty Information
5-year replacement warranty, as stated by Domus Lighting for the DRIVER-24V-IP67 series.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
