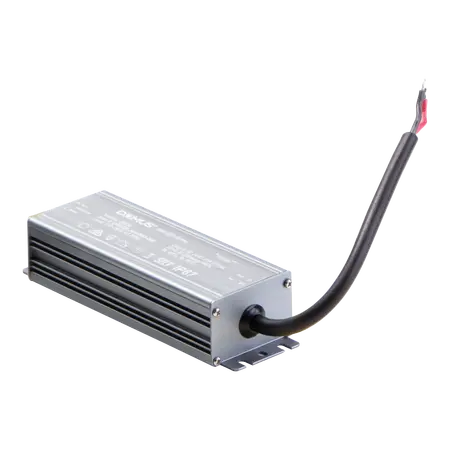

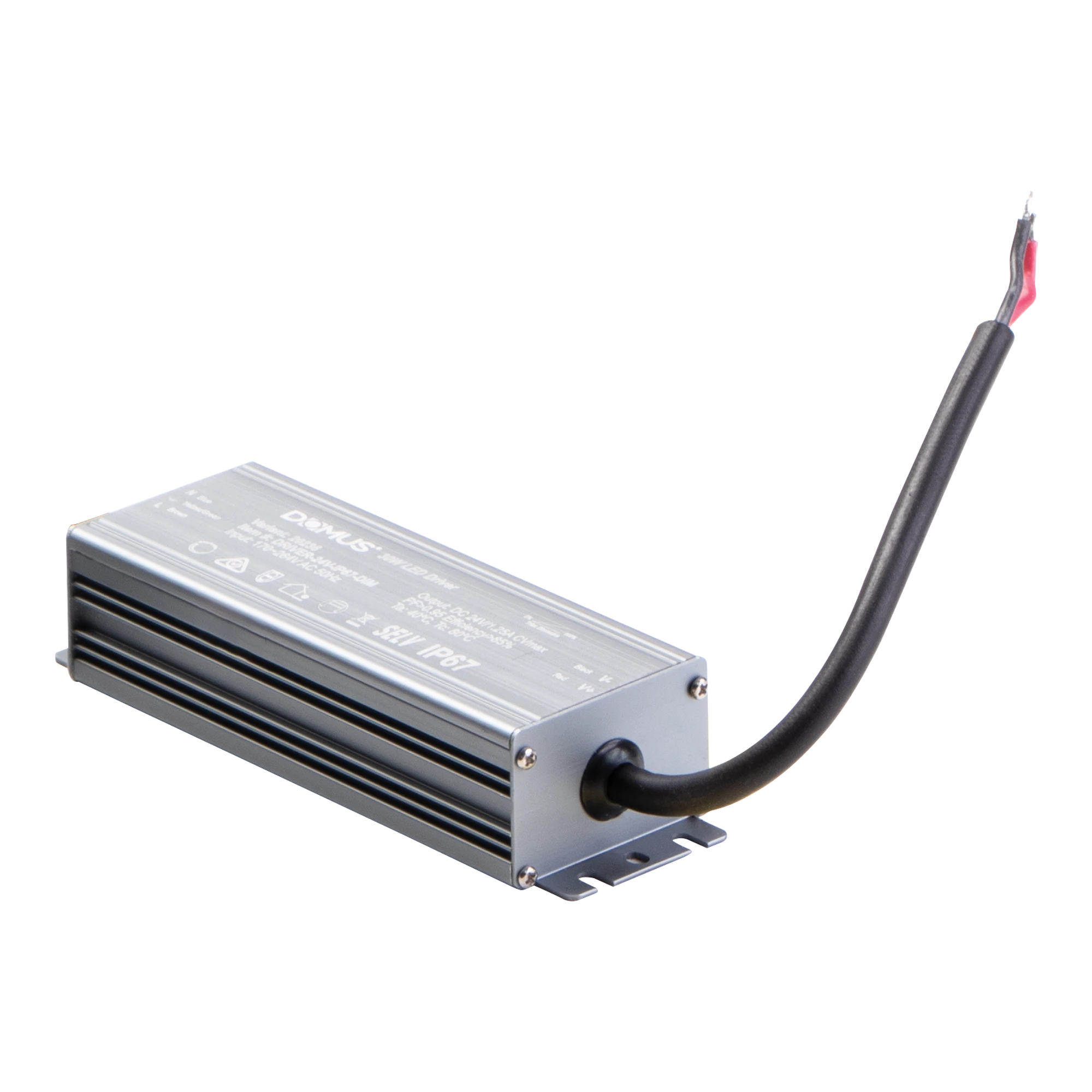

LED Driver 30W 12V DC Constant Voltage IP67 Dimmable Domus
Domus 30W 12V DC constant voltage LED driver, IP67, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DRIVER-12V-IP67-DIM, 12V Constant Voltage LED Driver, Outdoor LED Power Supply, Triac Dimmable LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 30W
- Output Current: 2.5A
- Dimming: Triac dimmable with compatible dimmers
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Operating Temperature: -30°C to +45°C
- Operating Humidity: 5–95% RH
- Cable and Plug: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Flicker Free: Yes
- Dimensions (H x L x W): 28mm x 125mm x 42mm
- Weight: 0.472 kg
Key Features
- Suitable for 12V constant voltage LED strips and fittings
- IP67-rated housing for outdoor and weatherproof applications
- Triac dimmable when paired with a compatible dimmer
- Built-in electrical and thermal protection functions
- Flicker-free operation
- Suitable for LED strips, inground uplighters, garden spike lights and landscape lighting
- Compact 30W format with 2.5A output capacity
Professional Installation Requirements
- Connection to 240V mains power and installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use only with compatible dimmers and 12V constant-voltage LED products.
Applications
- Outdoor LED strip lighting
- Garden and landscape lighting
- Inground uplighters
- Garden spike lights
- Weatherproof 12V LED fittings
- Residential and commercial exterior lighting installations
Standards & Compliance
- AS 61347.2.13:2018, particular safety requirements for electronic controlgear for LED modules
- AS/NZS 61347.1:2016, general safety requirements for lamp controlgear
- AS/NZS 3000, electrical installation requirements for connection to mains wiring
Environmental Benefits
- Up to 89% efficiency helps reduce electrical losses during operation
- Power factor greater than 0.95 supports efficient use of electrical supply capacity
- Built-in protection features can help extend service life and reduce premature replacement waste
- IP67 weather protection supports durable outdoor installations in demanding environments
Warranty Information
5-year replacement warranty. Warranty coverage is subject to Domus Lighting's terms and requires installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
