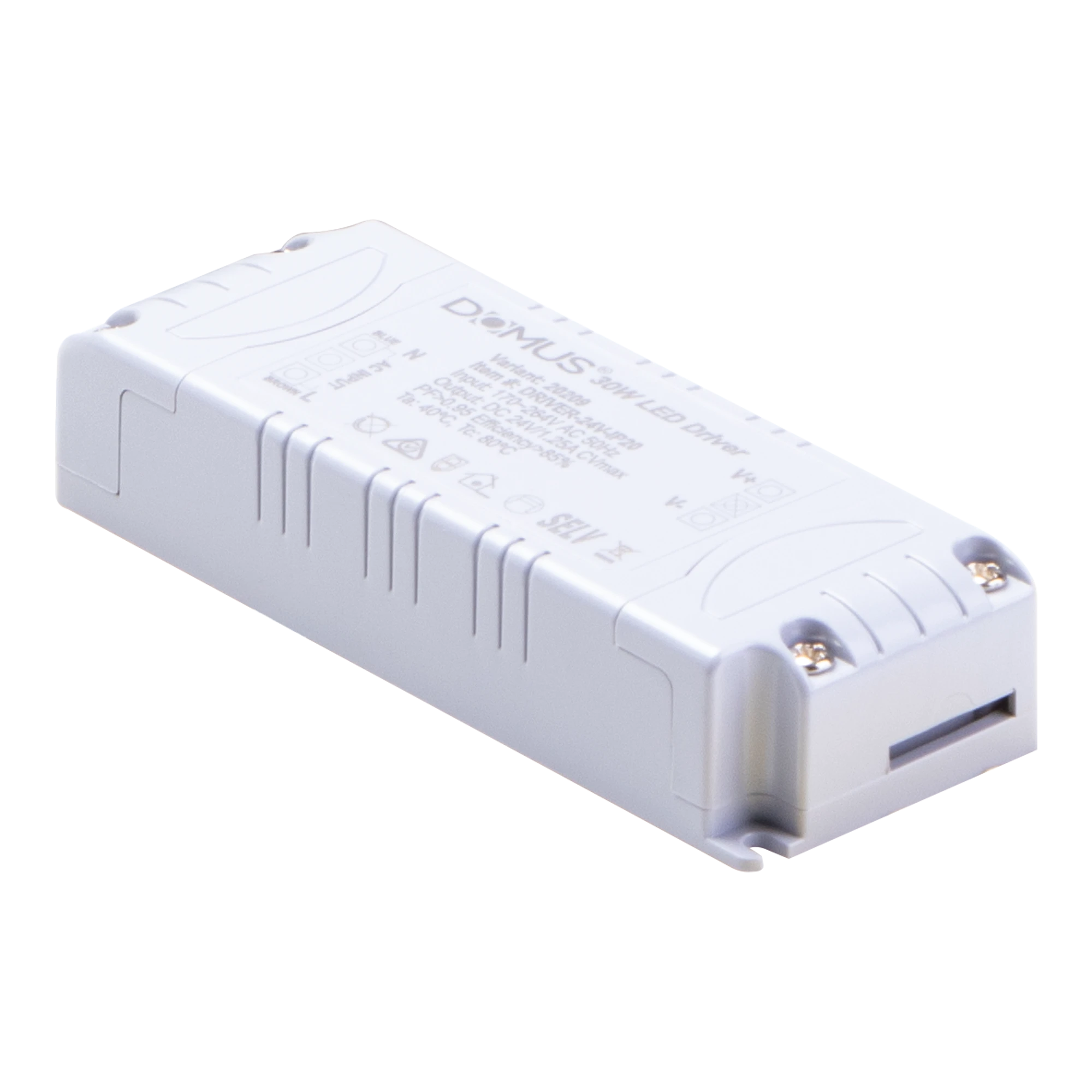

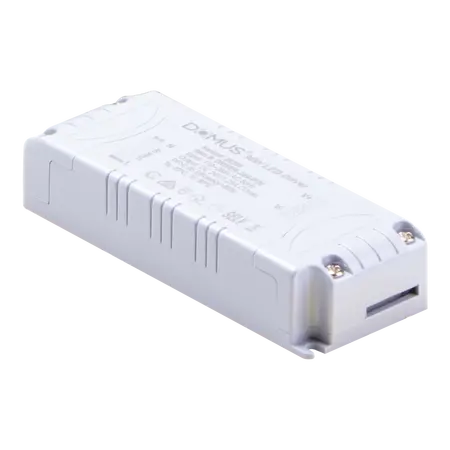

LED Driver 30W 24V DC Constant Voltage IP20 Dimmable Domus
Domus 30W 24V DC constant voltage LED driver, IP20, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DRIVER-24V-IP20-DIM, 24V Constant Voltage LED Driver, Triac Dimmable LED Power Supply
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 30W
- Output Current: 1.25A
- Dimming: Triac dimmable with compatible dimmers
- Ingress Protection: IP20
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Flicker Performance: Flicker-free when installed less than 2m from the light source
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Protection: Short-circuit, thermal overload, over-temperature and over-voltage protection
- Operating Environment: Indoor use only
- Variant: 20217
- Dimensions (H x L x W): 22mm x 107mm x 41mm
- Weight: 0.106 kg
Key Features
- Constant-voltage 24V DC output for compatible LED strip and fittings
- 30W capacity with 1.25A maximum output current
- Triac dimmable using a suitable compatible dimmer
- IP20 housing for indoor applications
- Built-in electrical and thermal protection functions
- Flicker-free performance when installed within the stated distance from the light source
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- Suitable for LED strips, inground uplighters, garden spike lights and general indoor LED lighting
Professional Installation Requirements
- Installation and connection to 240V AC mains should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Use only with compatible dimmers and 24V constant-voltage LED loads.
Applications
- 24V constant-voltage LED strip lighting
- Indoor architectural and accent lighting
- Inground uplighters used with suitable indoor-rated installation arrangements
- Garden spike lighting power supplies where the driver remains in a suitable indoor location
- General indoor 24V LED lighting installations
Standards & Compliance
- Relevant controlgear standard: AS 61347.2.13:2018 for electronic controlgear associated with LED modules
- General controlgear requirements: AS/NZS 61347.1:2016
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- Constant-voltage output supports efficient operation of compatible LED lighting systems
- Built-in protection functions may help extend service life and reduce premature replacement waste
- Compact electronic driver design reduces material use compared with larger conventional transformers
Warranty Information
5-year replacement warranty as stated by Domus for the DRIVER-24V-IP20-DIM series. Domus warranty claims require installation by a licensed electrician and compliance with the product installation guidelines; the current general warranty table lists LED power supplies and controllers as having a 3-year residential and 12-month commercial replacement warranty, so confirm the applicable product-specific warranty at purchase.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
