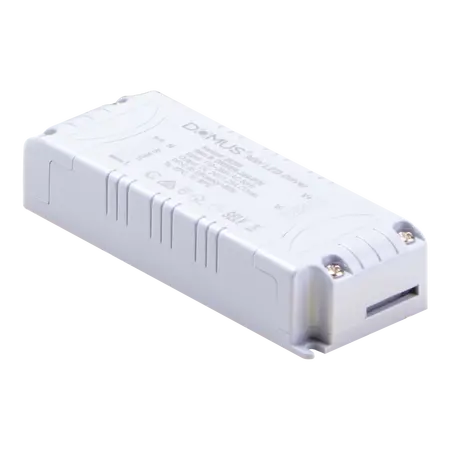

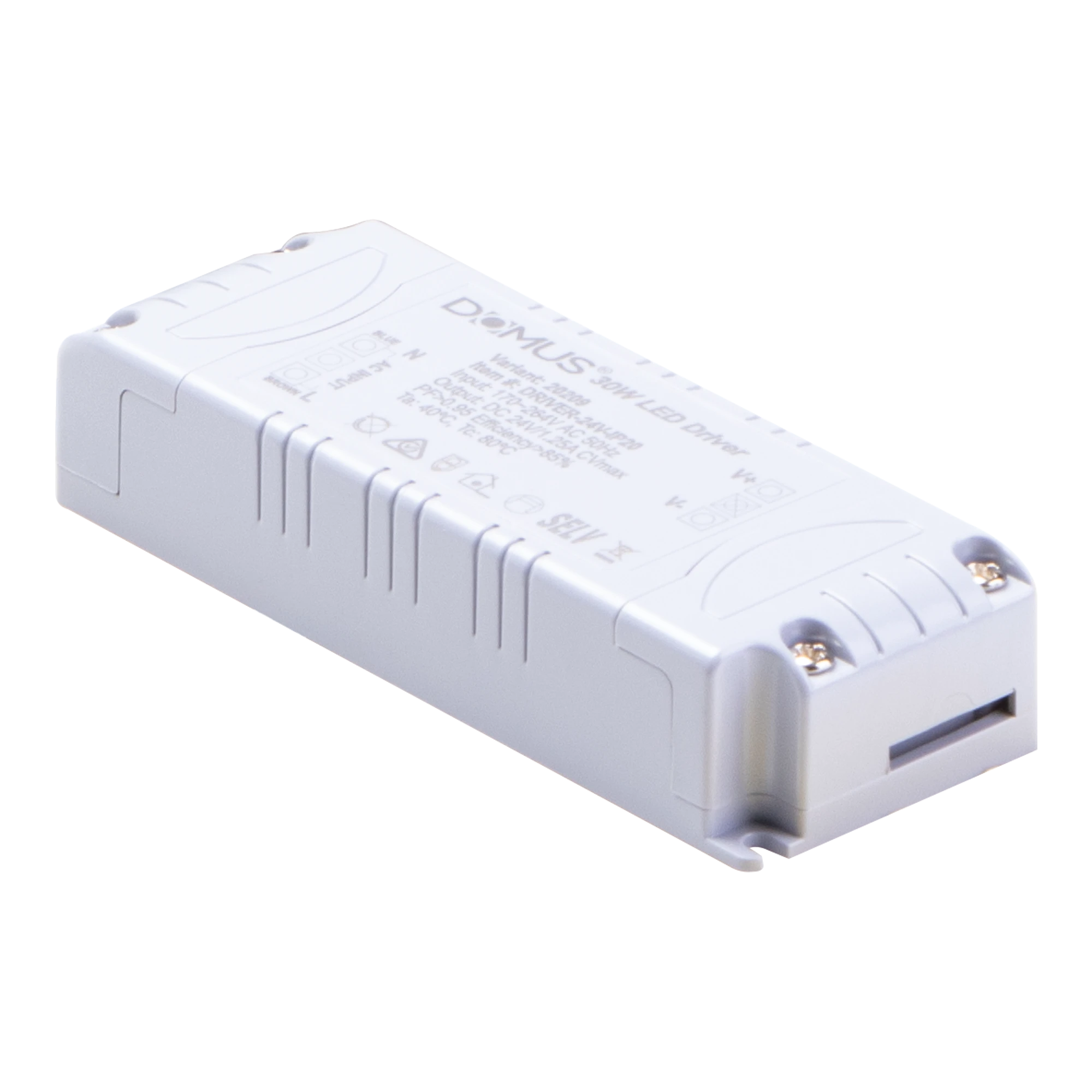

LED Driver 30W 24V DC Constant Voltage IP20 Non-Dimmable Domus
Domus 30W 24V DC constant voltage LED driver, IP20, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Driver, 30W LED Power Supply, Constant Voltage LED Driver, Non-Dimmable LED Strip Driver
Technical Specifications
- Model: DRIVER-24V-IP20
- Variant: 20209
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Current: 1.25A
- Rated Power: 30W
- Output Type: Constant voltage
- Dimming: Non-dimmable
- Ingress Protection: IP20
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring
- Use: Indoor applications only
- Dimensions (H x L x W): 22mm x 107mm x 41mm
- Weight: 0.1 kg
Key Features
- Provides regulated 24V DC constant-voltage output for compatible LED strip lighting and fittings
- Suitable for 24V constant-voltage LED systems
- Secondary-side short-circuit protection
- Thermal overload protection
- Over-temperature protection
- Over-voltage protection
- Supplied with 1m flex and plug
- Compact IP20 housing for dry indoor locations
Professional Installation Requirements
- The 240V AC input and final connection should be installed by a licensed electrician in accordance with applicable Australian wiring requirements. Install only in a dry indoor location and ensure the driver remains accessible for servicing.
Applications
- 24V LED strip lighting
- Indoor LED profiles and linear lighting
- 24V indoor cabinet, joinery and architectural lighting
- Inground uplighters and garden spike lighting installed in suitable dry indoor or protected applications
Standards & Compliance
- Applicable lamp-controlgear safety standards include AS/NZS 61347.1:2016 and AS 61347.2.13:2018; verify the product's RCM marking and supplier compliance documentation before installation.
Environmental Benefits
- High efficiency of up to 89% can reduce operating energy losses compared with less efficient drivers
- Over-temperature and overload protection can help extend service life and reduce premature replacement waste
- Replaceable driver architecture can allow the power supply to be replaced without replacing the complete LED fitting
- Suitable for low-voltage LED systems that can provide efficient lighting when correctly sized and installed
Warranty Information
5-year replacement warranty stated by Domus for the DRIVER-IP20 series, subject to Domus warranty terms, proof of purchase, compliant installation and applicable residential or commercial conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
