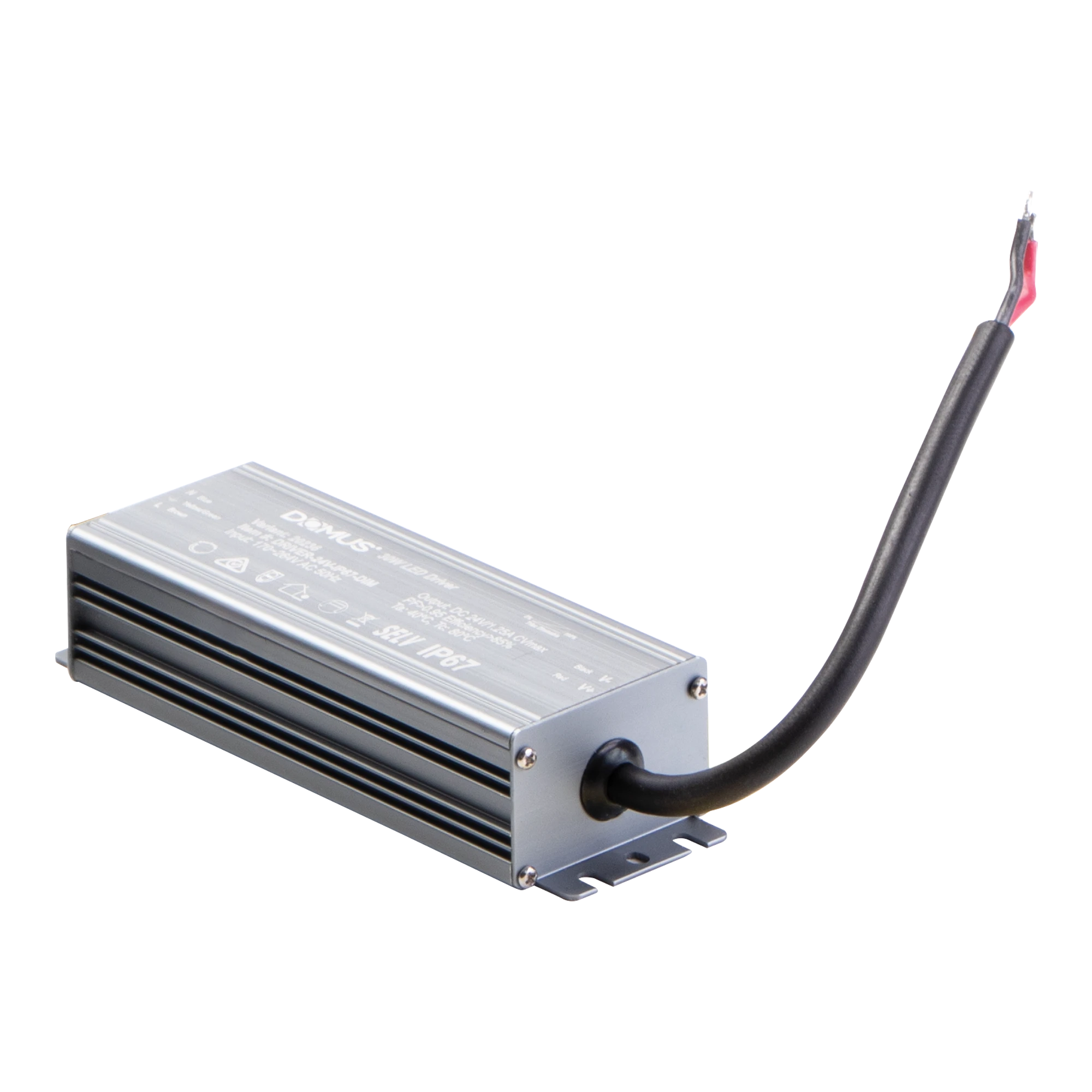

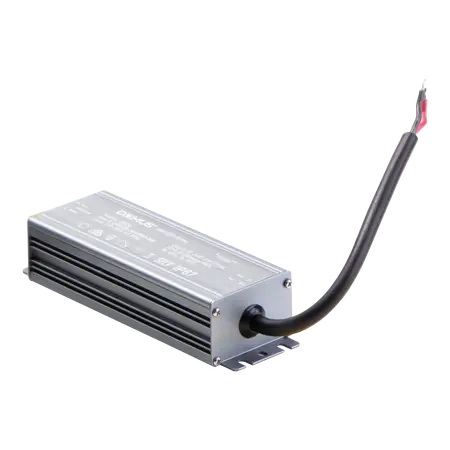

LED Driver 30W 24V DC Constant Voltage IP67 Dimmable Domus
Domus 30W 24V DC constant voltage LED driver, IP67, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Driver, Constant Voltage LED Power Supply, IP67 Outdoor LED Driver, Dimmable LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 30W
- Output Current: 1.25A
- Dimming: Triac dimmable with a compatible dimmer
- Ingress Protection: IP67
- Flicker Free: Yes
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring supported
- Connection: Supplied with 1m flex and plug
- Operating Temperature: -30°C to +45°C
- Estimated dimensions: Based on the manufacturer's published housing-size range for this series; confirm before enclosure design
- Estimated weight: Approx. 0.45kg; product-specific weight not published
- Dimensions (H x L x W): 28mm x 180mm x 44mm
- Weight: 0.45 kg
Key Features
- 24V DC constant-voltage output for compatible LED strip and fittings
- 30W capacity with 1.25A output
- Triac dimmable with suitable compatible dimmers
- IP67-rated housing for outdoor and weather-exposed installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Flicker-free operation
- Supplied with 1m flex and plug
- Supports parallel wiring
- Suitable for LED strips, inground uplighters, garden spike lights and landscape lighting
Professional Installation Requirements
- Installation and connection to 240V AC mains must be carried out by a licensed electrician in accordance with Australian electrical installation requirements. Confirm compatibility between the driver, LED load and Triac dimmer before installation.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor and landscape lighting
- Inground uplighters
- Garden spike lighting
- Weather-exposed LED fittings
- Residential and commercial architectural lighting installations
Standards & Compliance
- AS/NZS 61347 series: applicable safety standard family for lamp controlgear and LED controlgear; product-specific conformity declaration was not published by the manufacturer
- AS/NZS 3000: relevant wiring and installation requirements for connection to Australian 240V AC electrical installations
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- IP67 construction supports extended service life in outdoor environments, reducing replacement waste
- Replaceable driver architecture can allow the power supply to be replaced without replacing the complete LED fitting
- LED system compatibility supports efficient low-voltage lighting installations
Warranty Information
Five-year replacement warranty stated for the DRIVER-IP67-DIM series. Domus' current warranty policy lists IP67 power supplies as having a 5-year residential replacement warranty and a 3-year commercial replacement warranty, subject to licensed installation, approved use and the warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
