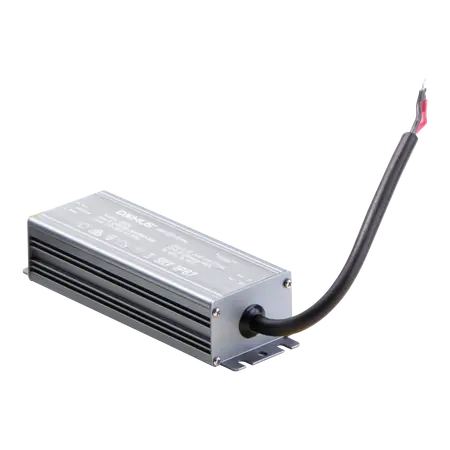

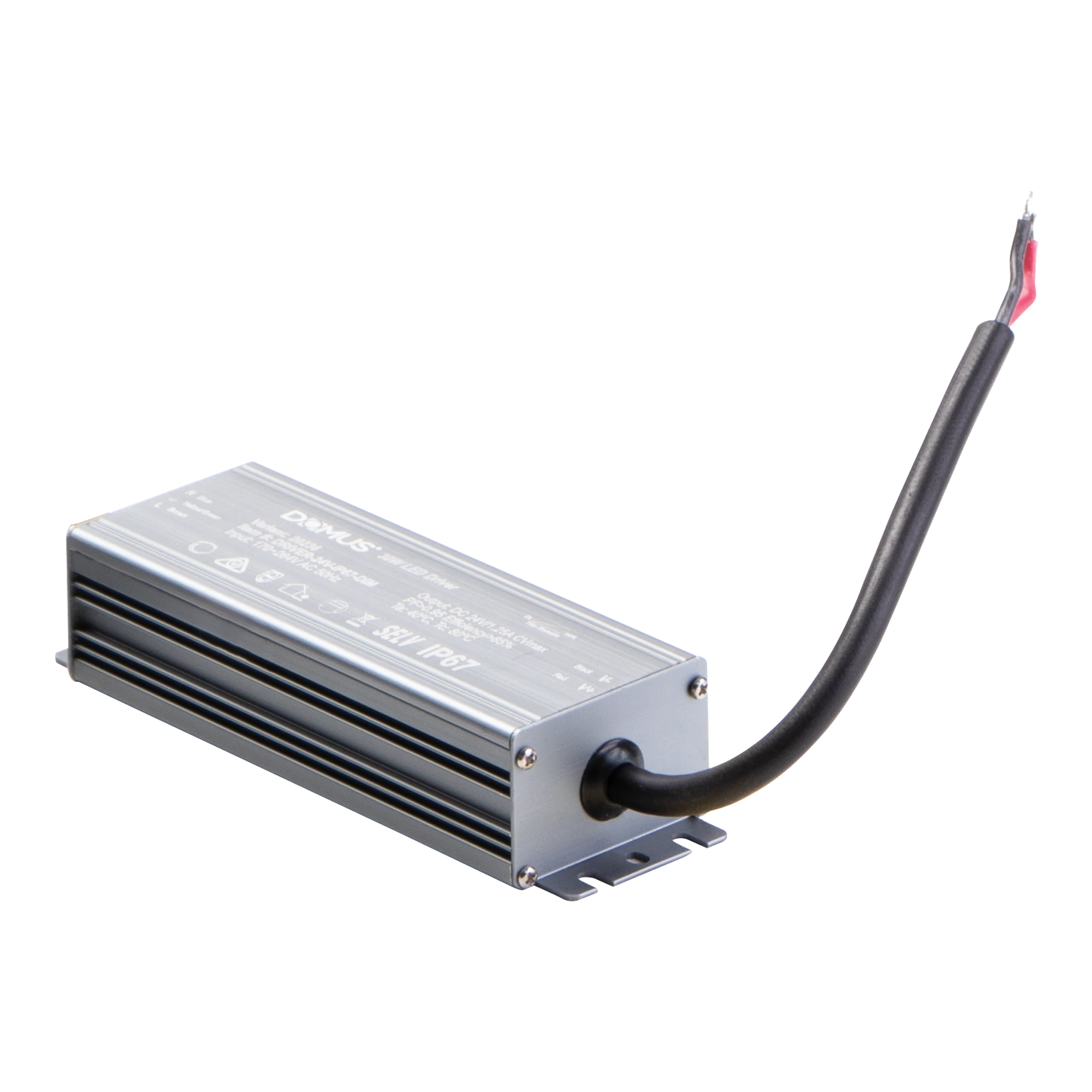

LED Driver 30W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 30W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Power Supply, 24V Constant Voltage LED Driver, IP67 LED Driver, Outdoor LED Transformer
Technical Specifications
- Model: DRIVER-24V-IP67
- Item Number: 20225
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Current: 1.25A
- Rated Power: 30W
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Cable and Plug: Supplied with 1m flex and plug
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring configuration
- Flicker Free: Yes
- Dimensions (H x L x W): 32mm x 150mm x 44mm
- Weight: 0.24 kg
Key Features
- Constant-voltage 24V DC output for compatible LED strip and fittings
- IP67-rated housing for outdoor and wet-area applications
- Non-dimmable operation
- Suitable for LED strips, inground lighting, garden spike lights and landscape lighting
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- Flicker-free output
Professional Installation Requirements
- The 240V AC input must be connected by a licensed electrician in accordance with applicable Australian electrical installation requirements. Ensure the connected LED load does not exceed 30W and that all IP-rated connections remain suitably protected.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor and landscape lighting
- Inground uplighters
- Garden spike lighting
- Wet-area LED fittings
- Residential and commercial decorative lighting systems
Environmental Benefits
- Up to 89% efficiency can reduce electrical losses during operation
- IP67 construction supports extended service life in outdoor environments, reducing premature replacement and waste
- Suitable for LED systems that can provide efficient, long-life illumination compared with conventional lighting technologies
Warranty Information
Backed by Domus Lighting's 5-year replacement warranty for IP67 power supplies. Warranty coverage is subject to Domus terms and installation by a licensed electrician. ([domuslighting.com.au](https://www.domuslighting.com.au/product/driver-ip67/))
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers. ([domuslighting.com.au](https://www.domuslighting.com.au/product-category/outdoor-weatherproof-drivers/))
