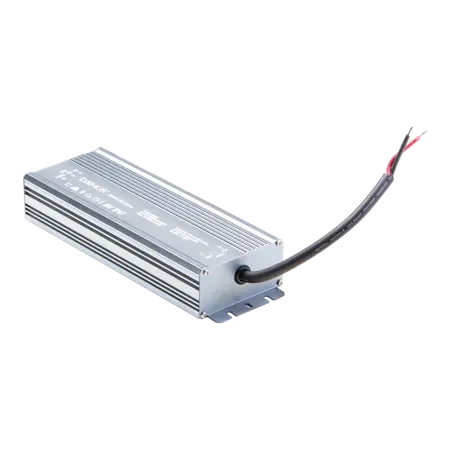

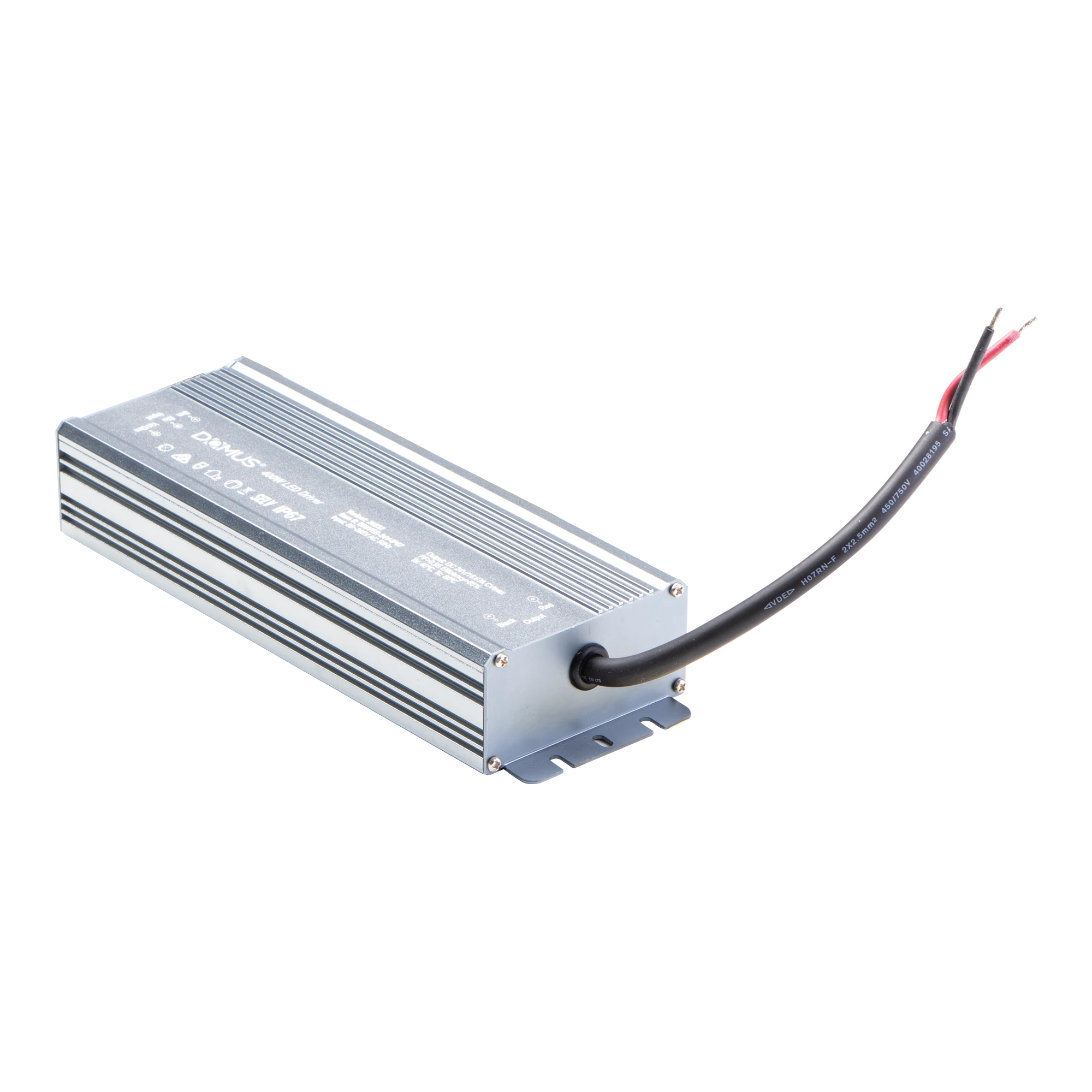

LED Driver 400W 12V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 400W 12V DC constant voltage LED driver, IP67, non-dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus DRIVER-12V-IP67 400W LED Driver, 12V LED Power Supply, Constant Voltage LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Output Current: 33.3A
- Rated Power: 400W
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Operating Use: Suitable for outdoor applications
- Protection Functions: Short circuit, thermal overload, over-temperature and over-voltage protection
- Connections: Supplied with 1 metre flex and plug
- Wiring: Suitable for parallel wiring
- Dimensions (H x L x W): 43mm x 260mm x 89mm
- Weight: 2.1 kg
Key Features
- Provides regulated 12V DC constant-voltage output for compatible LED loads
- IP67-rated housing for protection against dust and water ingress
- Suitable for LED strip lighting, inground uplighters and garden spike lighting
- Non-dimmable design for standard constant-voltage installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1 metre flex and plug
- 400W capacity with 33.3A maximum output current
Professional Installation Requirements
- Installation and connection to 240V mains should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Ensure the connected LED load is compatible with 12V DC constant-voltage output and does not exceed the driver's rated capacity.
Applications
- 12V constant-voltage LED strip lighting
- Outdoor architectural and landscape lighting
- Inground uplighters
- Garden spike lighting
- Commercial and residential exterior lighting installations
Standards & Compliance
- AS/NZS 61347.1 and AS/NZS 61347.2.13 are the applicable safety standards for LED controlgear; verify the product's current supplier declaration and RCM status before installation
- AS/NZS 3000 applies to the associated Australian electrical installation and mains wiring
Environmental Benefits
- Supports efficient LED lighting systems, which generally use less energy than conventional light sources
- IP67 construction and built-in protection functions can help extend service life and reduce premature replacement waste
- A separate replaceable driver allows the LED fitting or strip system to be serviced without replacing the complete installation
Warranty Information
Domus warranty statement provides a 5-year replacement warranty for IP67 power supplies in residential applications and a 3-year replacement warranty in commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
