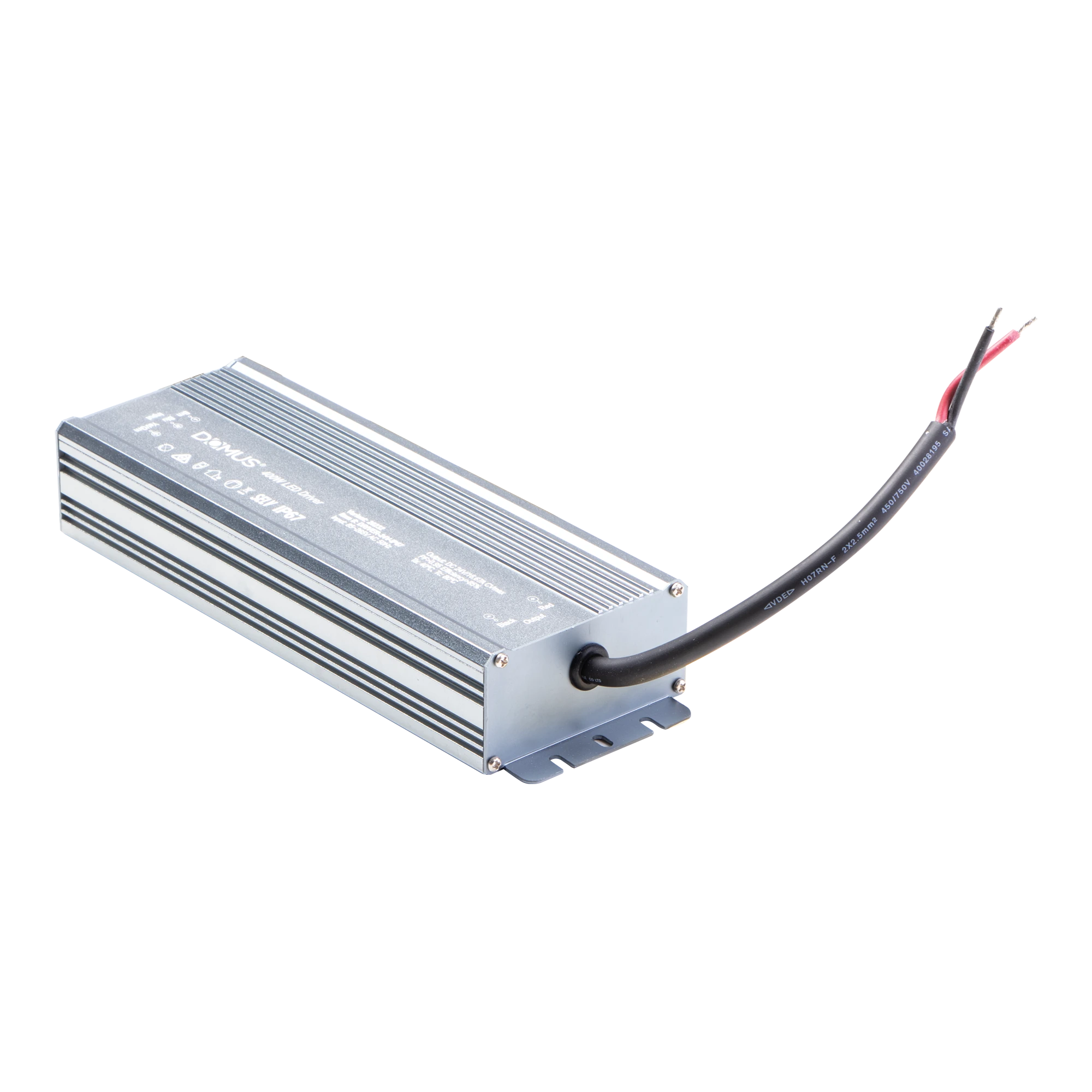

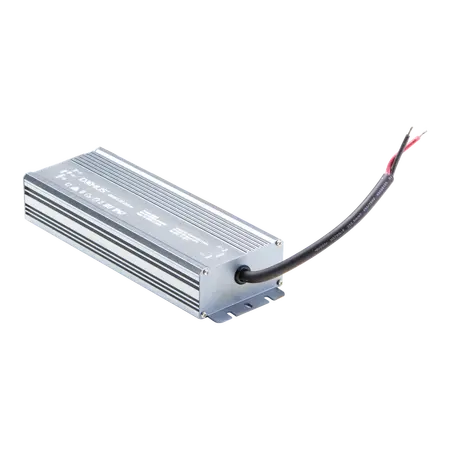

LED Driver 400W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 400W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus DRIVER-24V-IP67 400W LED Driver, 24V LED Power Supply, Constant Voltage LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Power: 400W
- Output Current: 16.7A
- Driver Type: Constant voltage
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Cable: Supplied with 1 m flex and plug
- Wiring: Parallel wiring supported
- Protections: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Variant ID: 20232
- Dimensions (H x L x W): 43mm x 260mm x 89mm
- Weight: 1.8 kg
Key Features
- Provides regulated 24V DC constant-voltage output for compatible LED strip and fittings
- IP67-rated enclosure for suitable outdoor applications
- Non-dimmable design for straightforward fixed-output installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1 m flex and plug
- Suitable for parallel wiring of compatible 24V LED loads
- Designed for LED strip lighting, inground uplighters and garden spike lighting
Professional Installation Requirements
- The 240V AC input and any fixed wiring must be installed and tested by a licensed electrician in accordance with applicable Australian electrical installation requirements. Use only with compatible 24V constant-voltage LED loads and maintain the manufacturer's IP67 installation conditions.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor architectural and landscape lighting
- Inground uplighters
- Garden spike lighting
- Outdoor LED fittings requiring a 400W 24V DC supply
Standards & Compliance
- AS/NZS IEC 61347.2.13 / AS 61347.2.13: Applicable safety standard for electronic controlgear associated with LED modules; product-specific certification is not stated in the supplied documentation.
- AS/NZS 3000: Relevant wiring and installation requirements for the 240V AC supply; installation must be completed by a licensed electrician.
Environmental Benefits
- Up to 89% efficiency can reduce electrical losses during operation
- IP67 construction and protective circuitry can help extend service life and reduce replacement waste
- Enables efficient 24V LED lighting systems, including outdoor applications
- Suitable for long-life LED strip and fitting installations, reducing the frequency of component replacement
Warranty Information
5-year replacement warranty for the IP67 power-supply category, subject to Domus Lighting warranty terms and installation by a licensed electrician. Domus documentation also states that the warranty does not cover removal or reinstallation costs.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; live stock and delivery timing should be confirmed with the distributor.
