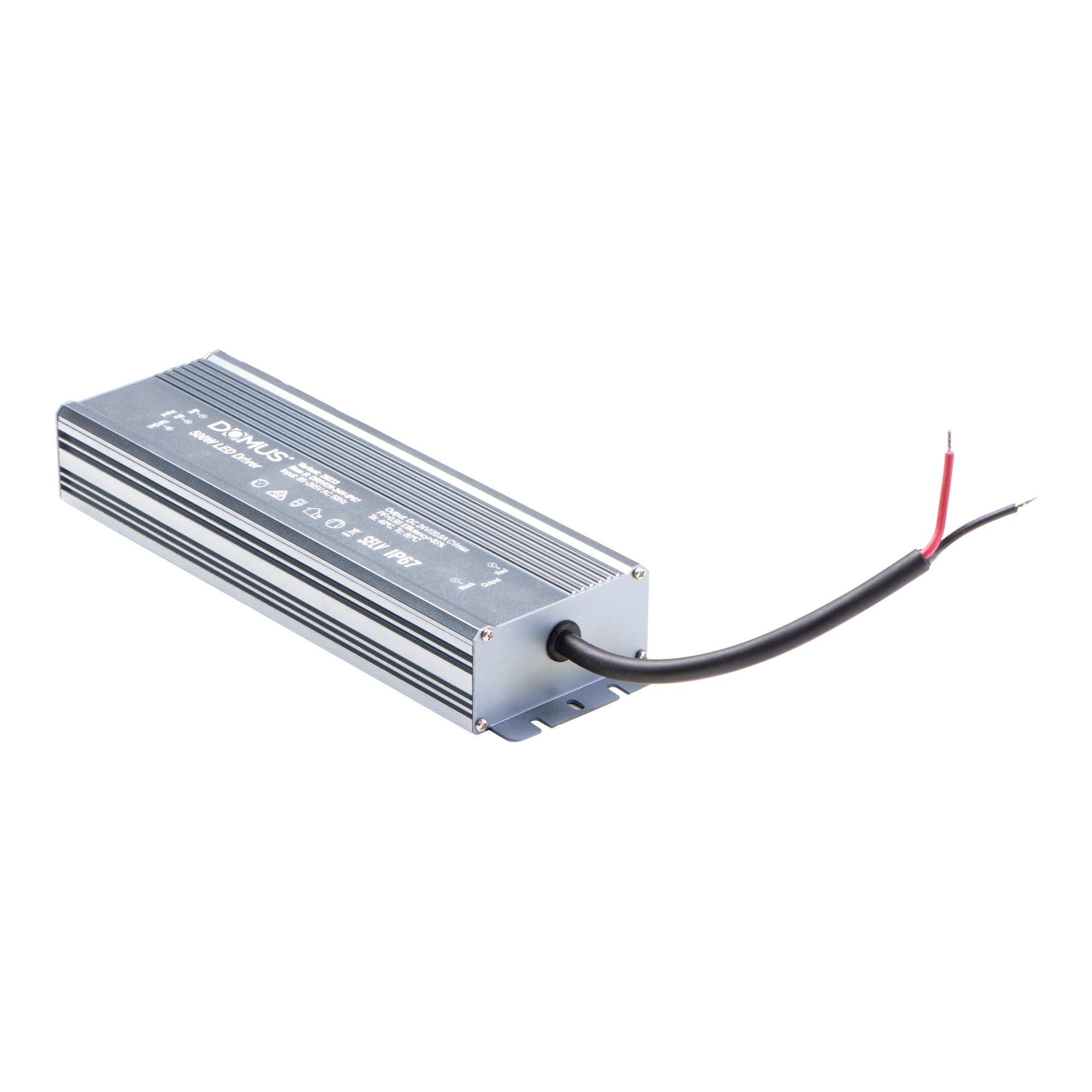

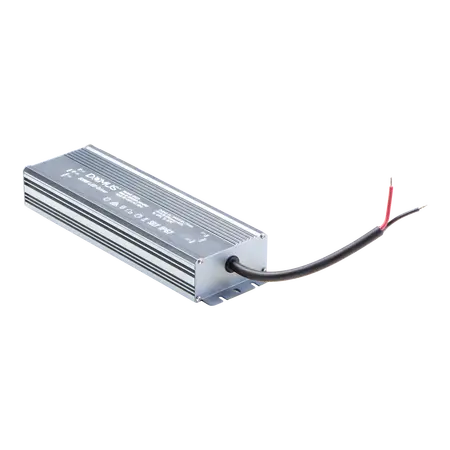

LED Driver 500W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 500W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus 500W LED Power Supply, 24V DC LED Strip Driver, IP67 Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 500W
- Output Current: 20.84A
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Connections: Supplied with 1 metre flex and plug
- Wiring: Parallel wiring supported
- Dimensions (H x L x W): 43mm x 290mm x 89mm
- Weight: 2.5 kg
Key Features
- Suitable for 24V constant-voltage LED strip lighting and fittings
- IP67-rated enclosure for suitable outdoor applications
- High-power 500W capacity for extended LED installations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Non-dimmable design for direct constant-voltage operation
- Supplied with 1 metre flex and plug
- Designed for LED strip lighting, inground uplighters and garden spike lighting
Professional Installation Requirements
- Installation and mains connection should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Ensure the connected LED load is compatible with 24V DC constant-voltage output and does not exceed 20.84A or 500W.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor LED fittings and linear lighting systems
- Inground uplighters
- Garden spike lighting
- Commercial and residential architectural lighting installations
Standards & Compliance
- Relevant product safety standard: AS 61347.2.13:2018 for electronic controlgear associated with LED modules
- Installation reference: AS/NZS 3000 Wiring Rules
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- IP67 construction and protective circuitry can support longer service life and reduce replacement waste
- Suitable for efficient 24V LED lighting systems, which can reduce energy consumption compared with less efficient lighting technologies
Warranty Information
5-year replacement warranty for IP67 power supplies. Domus states that warranty claims are covered only for products installed by a licensed electrician; applicable Australian Consumer Law rights are additional.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
