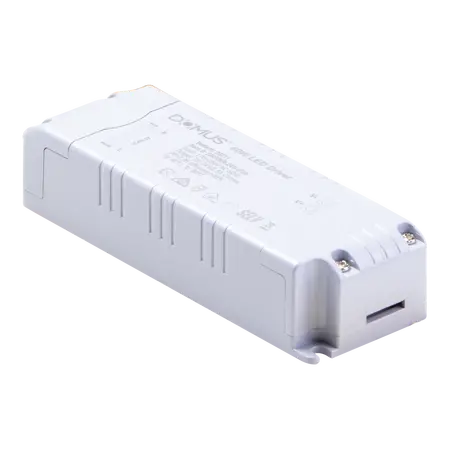

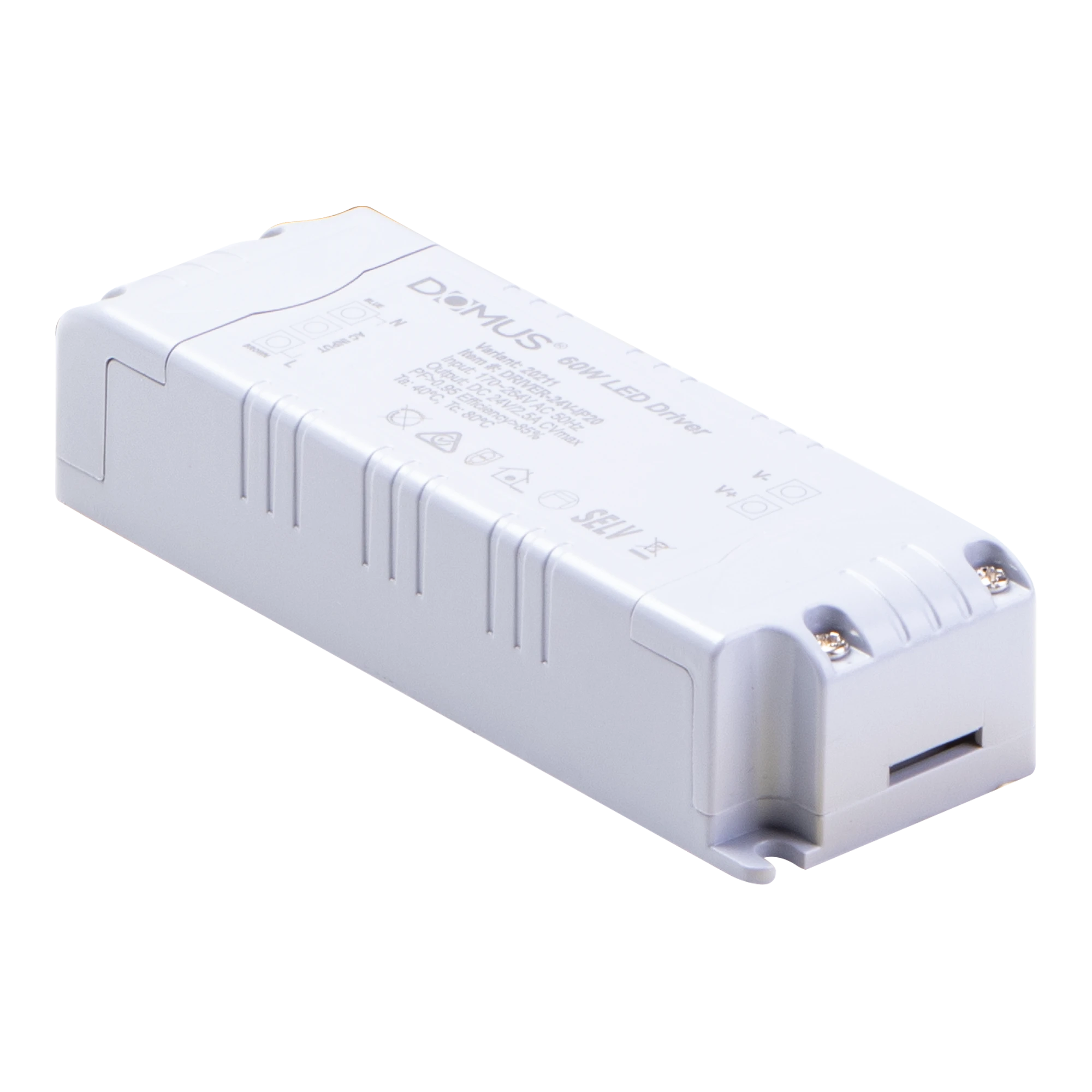

LED Driver 60W 12V DC Constant Voltage IP20 Dimmable Domus
Domus 60W 12V DC constant voltage LED driver, IP20, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Constant Voltage LED Driver, Dimmable LED Power Supply, LED Strip Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 60W
- Output Current: 5A
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Dimming: Triac dimmable with compatible dimmers
- Flicker Free: Yes
- IP Rating: IP20
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring configuration
- Connections: Supplied with 1m flex and plug
- Operating Environment: Indoor use only
- Dimensions (H x L x W): 29mm x 133mm x 46mm
- Weight: 0.16 kg
Key Features
- Provides regulated 12V DC constant-voltage output for compatible LED strips and fittings
- Supports loads up to 60W at 5A output
- Triac dimmable when paired with a compatible dimmer
- Flicker-free operation
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
- Compact IP20 housing for dry indoor installations
Professional Installation Requirements
- Mains electrical connection and installation should be performed by a licensed electrician in accordance with applicable Australian wiring rules and manufacturer instructions. Use only with compatible 12V constant-voltage LED products and dimmers.
Applications
- 12V constant-voltage LED strip lighting
- Indoor LED fittings and feature lighting
- Inground uplighters used in indoor or protected applications
- Garden spike lighting where the driver is installed indoors or in a suitable dry enclosure
- Residential and commercial interior lighting systems
Standards & Compliance
- Applicable LED controlgear safety standard: AS 61347.2.13:2018, read in conjunction with AS/NZS 61347.1:2016. Manufacturer-specific compliance claim not stated in the available product documentation.
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation
- Constant-voltage regulation supports efficient operation of compatible LED lighting systems
- LED driver construction and built-in protection features may help extend service life and reduce replacement waste
Warranty Information
Backed by a 5-year replacement warranty from Domus Lighting.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
