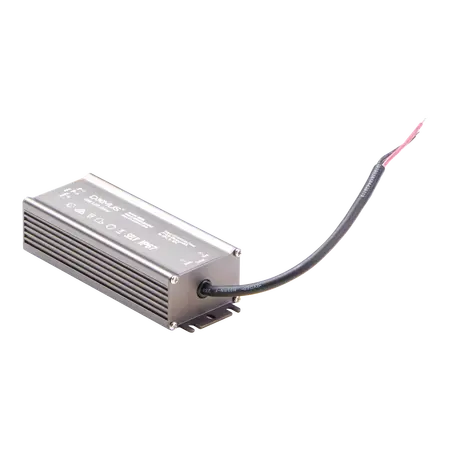

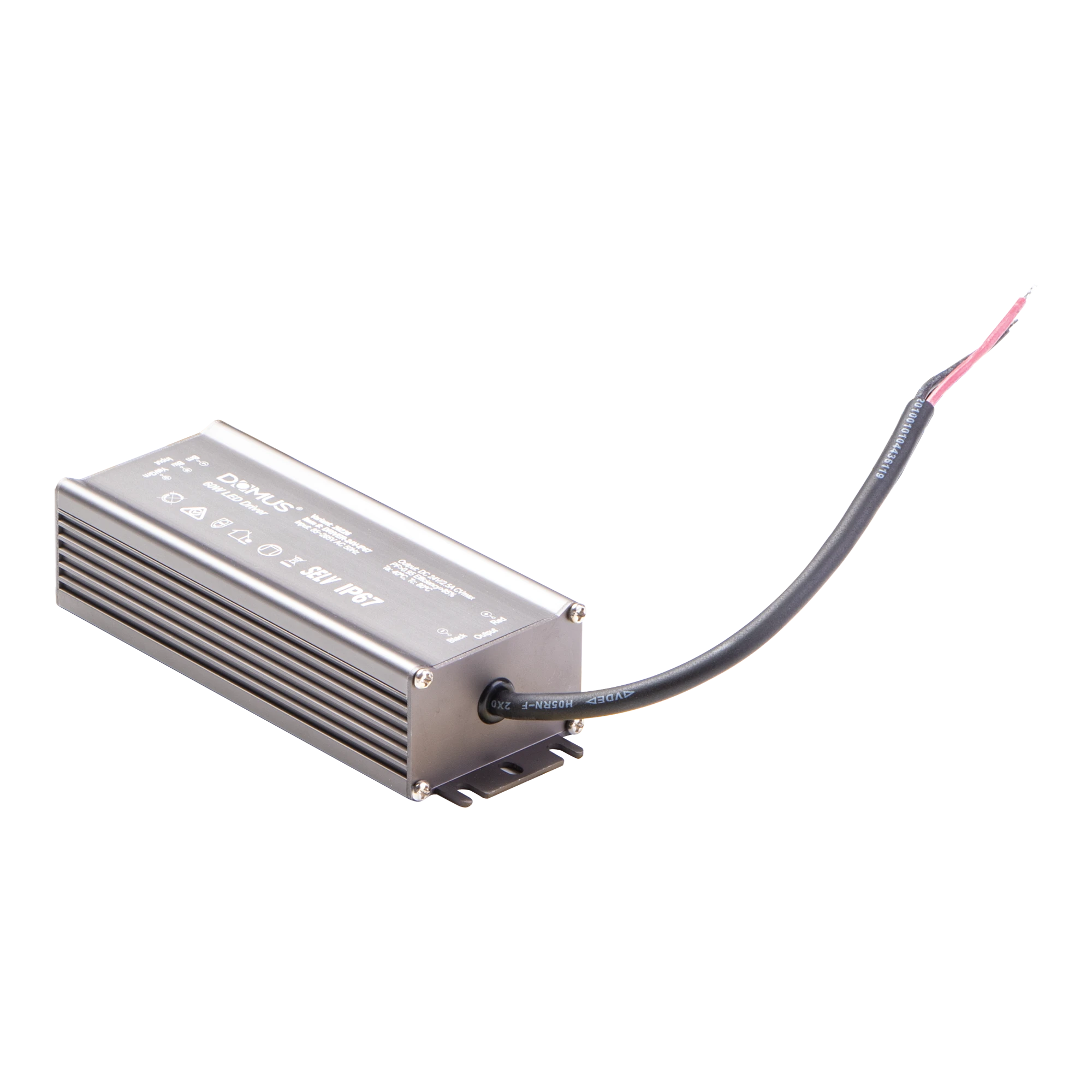

LED Driver 60W 12V DC Constant Voltage IP67 Dimmable Domus
Domus 60W 12V DC constant voltage LED driver, IP67, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Outdoor LED Power Supply, IP67 LED Driver, Dimmable LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 60W
- Output Current: 5A
- Dimming: Triac dimmable with compatible dimmers
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Operating Temperature: -30°C to +45°C
- Operating Humidity: 5–95% RH
- Wiring: Parallel wiring configuration
- Cable and Plug: Supplied with 1m flex and plug
- Flicker Free: Yes
- Dimensions (H x L x W): 28mm x 155mm x 42mm
- Weight: 0.608 kg
Key Features
- Suitable for 12V constant voltage LED strips and fittings
- IP67-rated enclosure for outdoor and weather-exposed installations
- Triac dimmable when paired with a compatible dimmer
- Built-in short circuit, thermal overload, over-temperature and over-voltage protection
- Flicker-free operation
- Suitable for LED strips, inground uplighters, garden spike lights and landscape lighting
- Supplied with 1m flex and plug
- 5-year replacement warranty for residential applications
Professional Installation Requirements
- Installation and connection to 240V AC mains should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Use only with compatible 12V constant voltage LED products and a compatible Triac dimmer where dimming is required.
Applications
- Outdoor LED strip lighting
- Garden spike lighting
- Inground uplighters
- Landscape lighting
- Weather-exposed 12V LED fittings
- Residential and commercial exterior lighting installations
Standards & Compliance
- Relevant product safety standard: AS 61347.2.13:2018 for electronic controlgear associated with LED modules
- General installation requirements: AS/NZS 3000 Wiring Rules
Environmental Benefits
- Efficiency of up to 89% can reduce energy losses during operation
- IP67 construction and built-in protection can extend service life and reduce replacement waste
- Designed for efficient 12V LED lighting systems, which generally use less energy than equivalent conventional lighting
- LED power supply construction supports use with long-life LED strips and fittings
Warranty Information
5-year replacement warranty for IP67 power supplies in residential applications, and 3-year replacement warranty in commercial applications, subject to Domus Lighting warranty conditions and licensed-electrician installation requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
