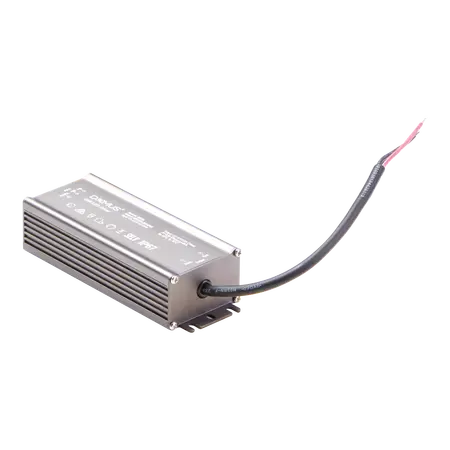

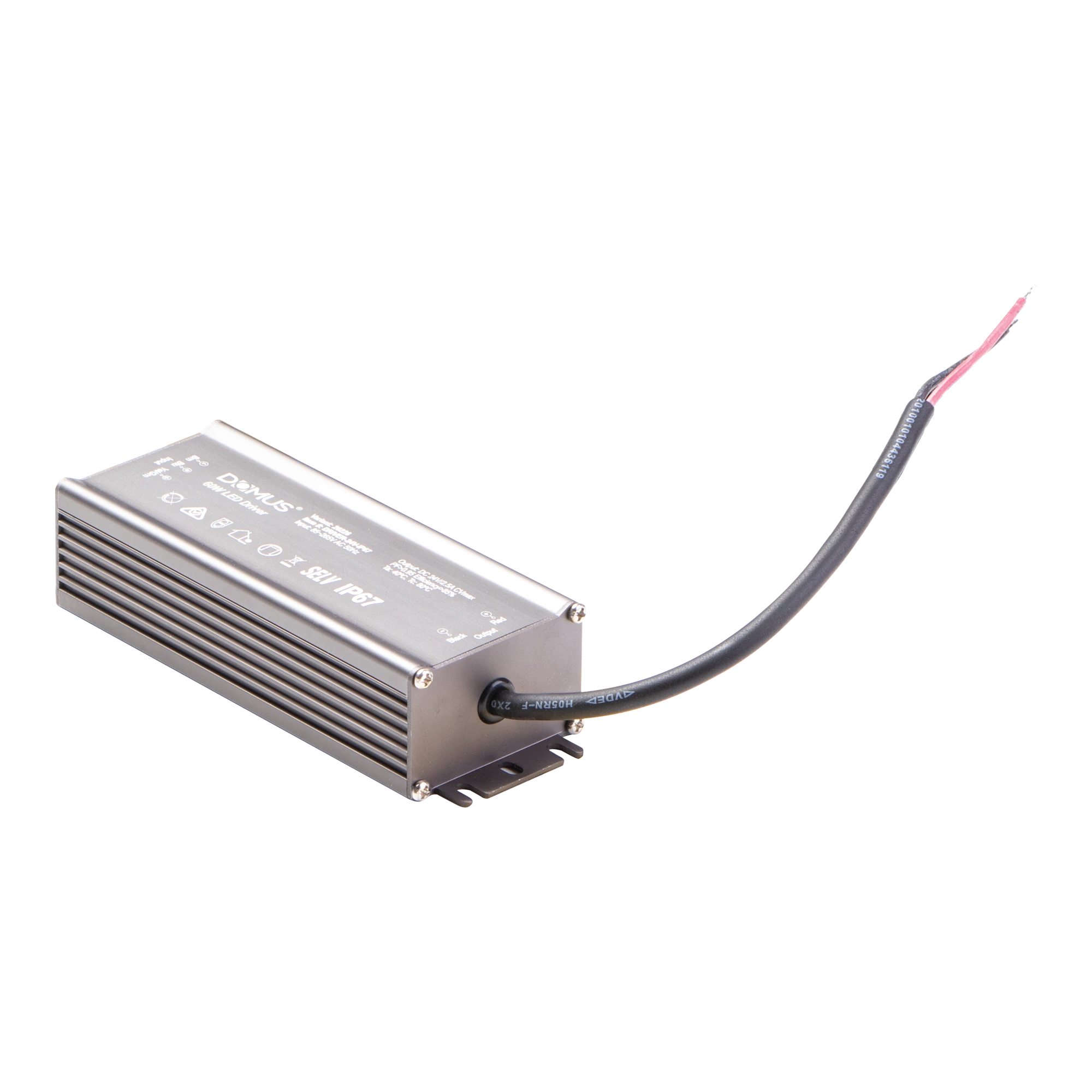

LED Driver 60W 12V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 60W 12V DC constant voltage LED driver, IP67, non-dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Power Supply, Outdoor LED Driver, Weatherproof LED Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC
- Rated Power: 60W
- Output Current: 5A
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Flicker Free: Yes
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Dimensions (H x L x W): 35mm x 154mm x 56mm
- Weight: 0.45 kg
Key Features
- Constant voltage output for compatible 12V LED strip and fittings
- IP67-rated enclosure for outdoor and wet-area installations
- Suitable for LED strips, inground lights, garden spike lighting and landscape lighting
- Secondary-side short-circuit protection
- Thermal overload and over-temperature protection
- Over-voltage protection
- Flicker-free operation
- Non-dimmable design
- Supplied with 1m flex and plug
Professional Installation Requirements
- Installation of the 240V AC input must be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. Follow the manufacturer's installation instructions and ensure the driver is installed within the limits of its IP67 rating.
Applications
- 12V constant voltage LED strip lighting
- Outdoor and landscape lighting systems
- Inground LED uplighters
- Garden spike lighting
- Wet-area LED lighting installations
- Residential and commercial lighting projects
Standards & Compliance
- Applicable LED controlgear safety standard: AS 61347.2.13:2018
- General lamp controlgear requirements: AS/NZS 61347.1:2016
- Electrical installation requirements: AS/NZS 3000:2018
Environmental Benefits
- Up to 89% power-conversion efficiency can reduce energy losses during operation
- Supports efficient LED lighting systems with lower energy consumption than traditional lighting technologies
- IP67 weather protection may extend service life in suitable outdoor installations and reduce replacement waste
- Compact power supply design reduces material use compared with larger conventional transformer formats
Warranty Information
5-year replacement warranty for residential use and 3-year replacement warranty for commercial use under Domus Lighting's warranty policy for IP67 power supplies. Warranty eligibility requires installation by a licensed electrician and compliance with installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
