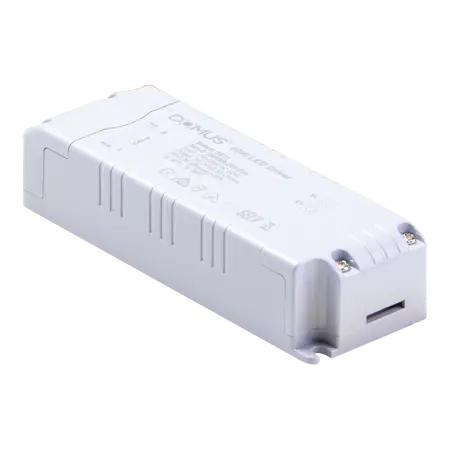

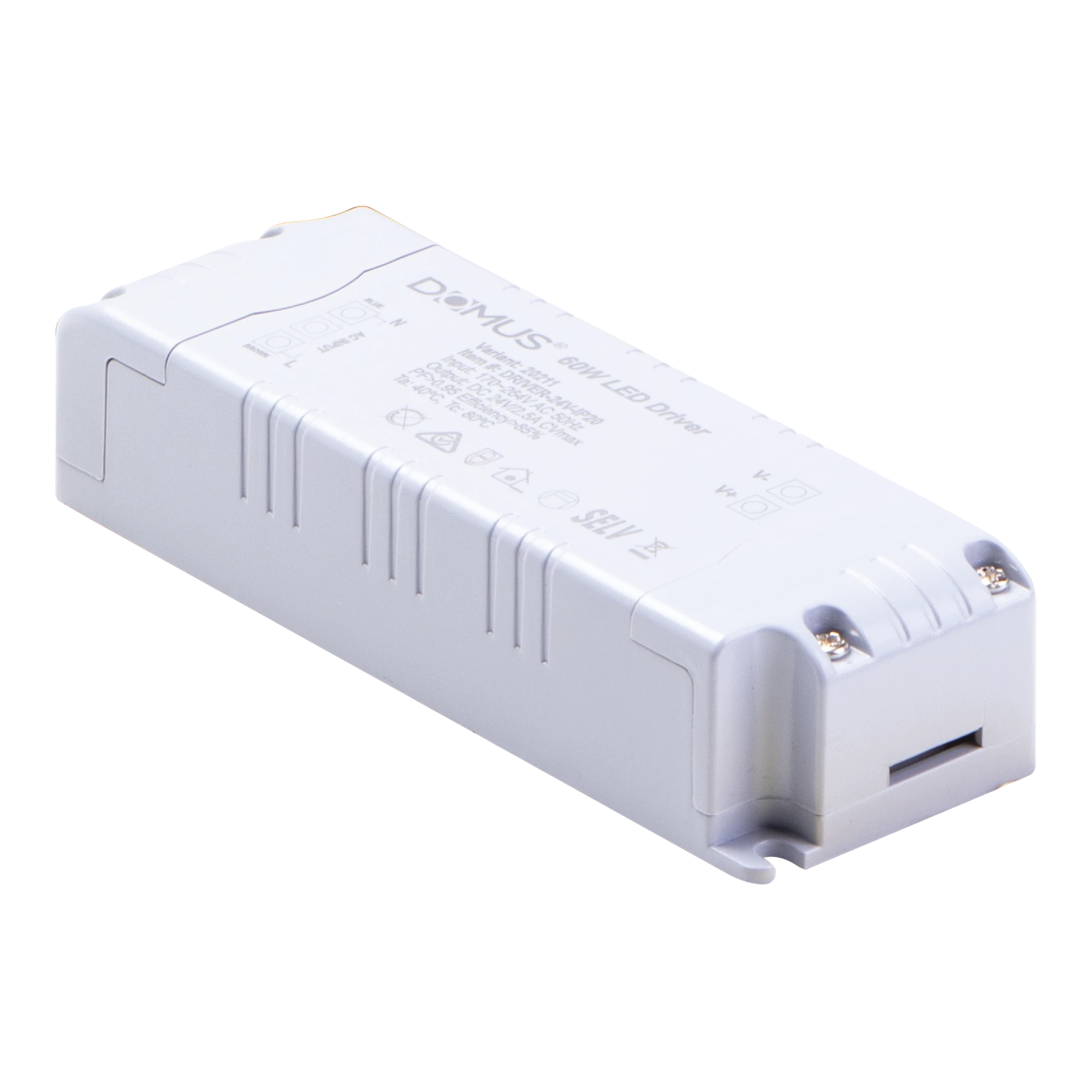

LED Driver 60W 24V DC Constant Voltage IP20 Dimmable Domus
Domus 60W 24V DC constant voltage LED driver, IP20, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Triac Dimmable LED Power Supply, LED Strip Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Current: 2.5A
- Rated Power: 60W
- Dimming Method: Triac dimmable with suitable dimmers
- Ingress Protection: IP20
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Wiring: Parallel wiring
- Cable and Plug: Supplied with 1m flex and plug
- Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
- Operating Environment: Indoor use only
- Flicker Performance: Flicker-free when installed less than 2m from the light source
- Variant: Domus 20219
- Dimensions (H x L x W): 29mm x 133mm x 46mm
- Weight: 0.16 kg
Key Features
- Constant-voltage 24V DC output for compatible LED strip and fittings
- 60W output capacity with 2.5A maximum output current
- Triac dimmable when paired with a compatible dimmer
- IP20 enclosure for dry indoor locations
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
- Suitable for parallel-connected LED loads
Professional Installation Requirements
- Installation and connection to 240V AC mains should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use only with compatible 24V constant-voltage LED loads and a suitable dimmer.
Applications
- 24V LED strip lighting
- Indoor cabinet, joinery and cove lighting
- Decorative and accent lighting
- Indoor LED profiles and linear lighting systems
- Compatible 24V LED fittings requiring Triac dimming
- Indoor garden spike or uplighter systems where the fitting is rated for indoor-driver use
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, for mains electrical installation and wiring requirements
- AS/NZS 61347 series, relevant safety requirements for lamp controlgear; confirm the product declaration or certification for the specific unit before project approval
Environmental Benefits
- Up to 89% efficiency helps reduce electrical energy losses during operation
- Supports efficient LED lighting systems with lower energy consumption than traditional lighting technologies
- Built-in protective functions can help extend driver and connected LED equipment service life, reducing replacement waste
- Long-life LED installations can reduce lamp replacement frequency and associated material waste
Warranty Information
5-year replacement warranty as stated by Domus for the DRIVER-24V-IP20-DIM range. Warranty claims require proof of purchase, licensed-electrician installation and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting's authorised Australian electrical wholesalers, lighting retailers and online stockists.
