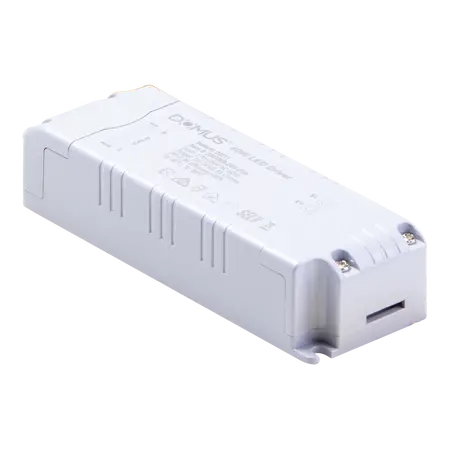

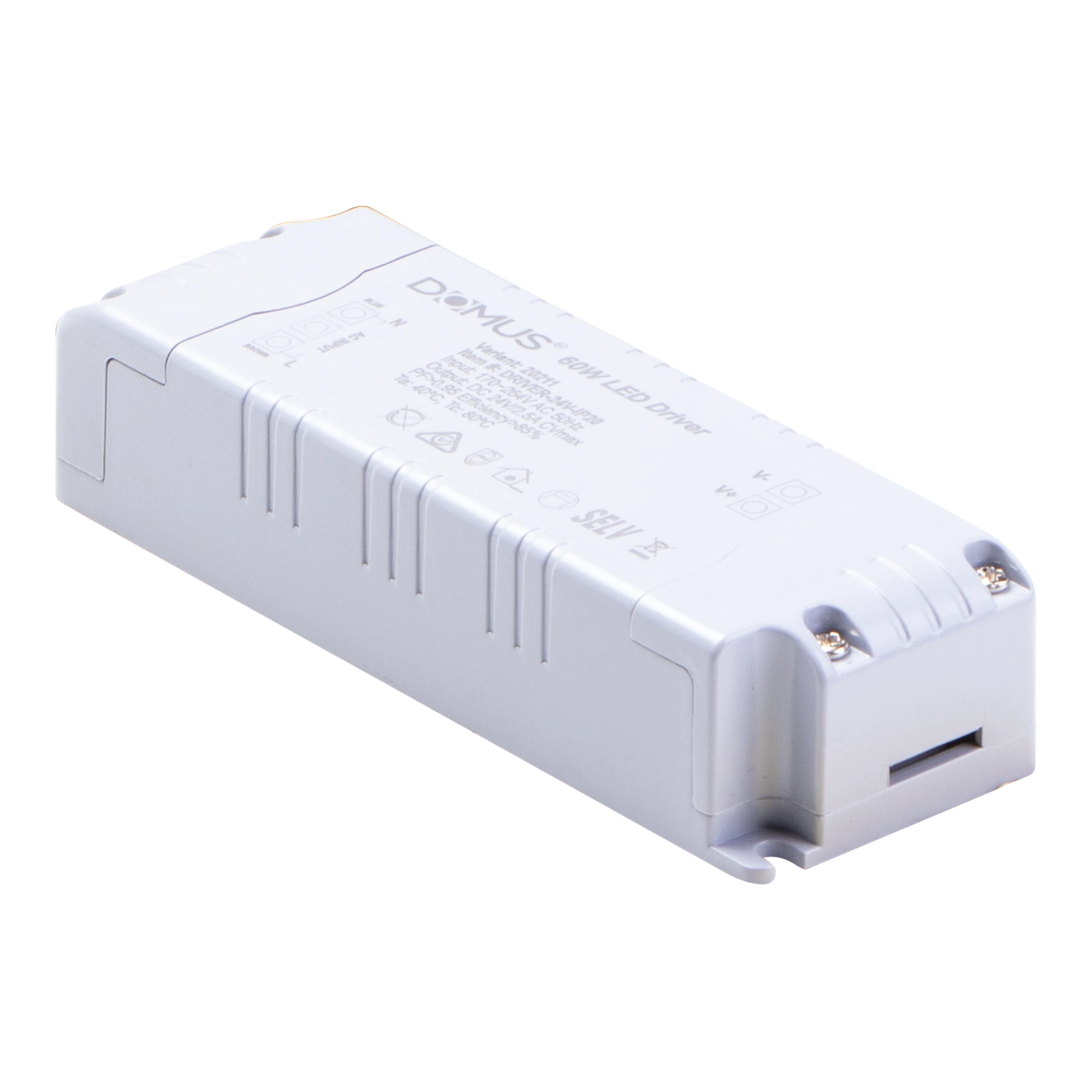

LED Driver 60W 24V DC Constant Voltage IP20 Non-Dimmable Domus
Domus 60W 24V DC constant voltage LED driver, IP20, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus DRIVER-24V-IP20, 24V LED Strip Driver, 24V LED Power Supply, Indoor Constant-Voltage LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimming: Non-dimmable
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Wiring: Parallel wiring
- Supplied Cable: 1m flex and plug
- Operating Environment: Indoor use only
- Dimensions (H x L x W): 29mm x 133mm x 46mm
- Weight: 0.1 kg
Key Features
- Designed for 24V constant-voltage LED strip lighting and fittings
- Secondary-side short-circuit protection
- Thermal overload protection
- Over-temperature protection
- Over-voltage protection
- Flicker-free operation
- Compact linear housing
- Supplied with 1m flex and plug
- Five-year replacement warranty stated by Domus Lighting
Professional Installation Requirements
- The 240V AC input must be connected by a licensed electrician in accordance with AS/NZS 3000 and applicable electrical regulations. Install indoors in a dry location; do not use the IP20 driver outdoors or in damp areas.
Applications
- 24V LED strip lighting
- Indoor joinery and cabinet lighting
- Display and feature lighting
- Inground uplighters installed with suitable protected equipment
- Garden spike lighting when the driver is located indoors
- General 24V constant-voltage LED fittings
Standards & Compliance
- AS/NZS 61347.1: Lamp controlgear general and safety requirements
- AS 61347.2.13: Particular requirements for controlgear for LED modules
- AS/NZS 3000: Wiring Rules for the electrical installation
Environmental Benefits
- Up to 89% efficiency helps reduce power losses during operation
- Power factor greater than 0.95 can reduce reactive power demand in the electrical installation
- Low-voltage 24V DC output supports efficient LED lighting systems
- Built-in protection functions can help extend service life and reduce premature product replacement
Warranty Information
Five-year replacement warranty as stated for the DRIVER-IP20 series by Domus Lighting. Warranty conditions apply, including licensed-electrician installation and use in accordance with manufacturer instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting and electrical distributors.
